Product Name: Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003 Feature: Hakko C1390c
Base Material: FR-4, TACONIC, Aluminum, CEM-3, Metal/ceramic/aluminum Base Min. Line Spacing: 1.6mm, 0.2-6.0mm, 0.2mm-6.00 Mm(8mil-126mil), 0.5~3.2mm, 1.6 Mm
Application: Electronics Device, Consumer Electronics, Communications, And So On, Universal Base Material: FR-4,CEM-1,CEM-3,Polyimild,PTFE/Rogers
Testing Service: 100% Electrical Test, Fly-probe, Function Testing, 100% E-testing, Flying Probe Testing Copper Thickness: 1oz, 0.5oz-8oz, 1/3oz ~6oz, 1 Oz, 0.25OZ~12OZ
High Light:

Hakko C1390c HDI PCB

,

HDI PCB Vidhan Sabha

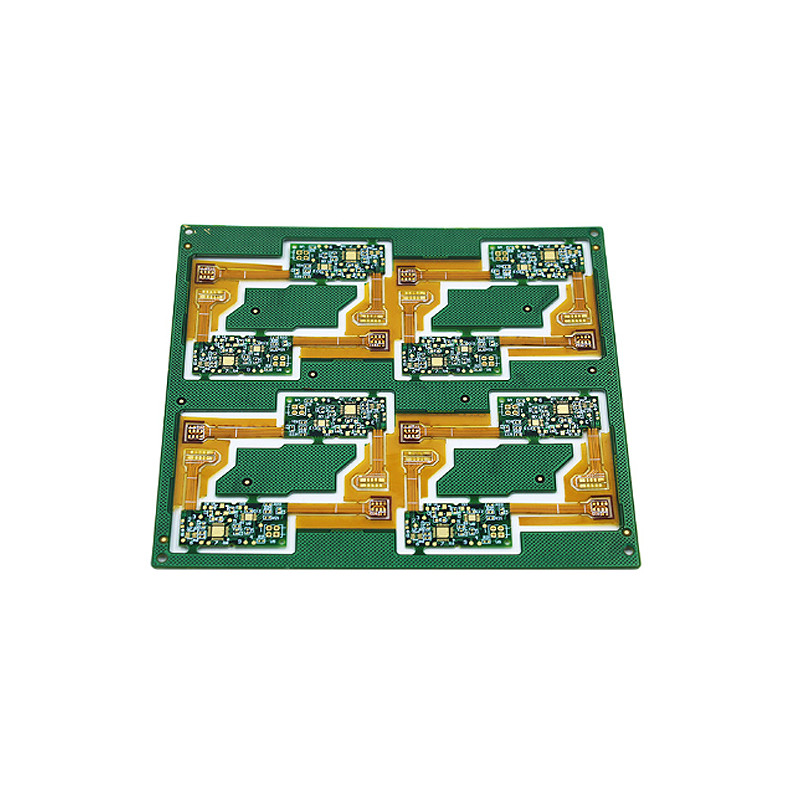

Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003



Welcome to Chengdu Cesgate Technology Co., Ltd

We can provide one-stop service:

PCB circuit boards+Assembly
E-test.
Electronic components purchasing.
PCB assembly: available on SMT, BGA, DIP.
PCBA function test.
Enclosure assembly.



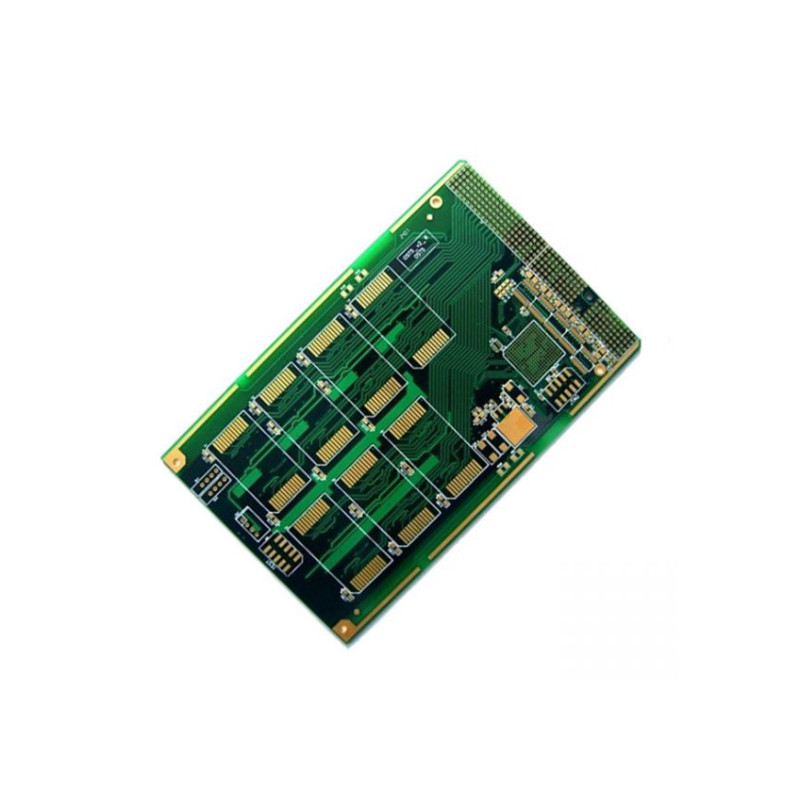

Advantages of HDI PCB

PCB Process - Introduction to HDI
HDI (High Density Interconnect): High-density interconnection technology, mainly using micro-blind / buried vias (blind / buried vias), a technology that makes PCB circuit board circuit distribution density higher. The advantage is that it can greatly increase the usable area of ​​the PCB circuit board, making the product as miniaturized as possible. However, due to the increase in line distribution density, it is impossible to use traditional drilling methods to drill through holes, and some of the via holes must be drilled with laser drilling to form blind holes, or cooperate with inner-layer buried vias to interconnect.

Generally speaking, HDI circuit boards use the build-up method (Build Up), first do or press the inner layers, laser drilling and electroplating on the outer layer are completed, and then the outer layer is covered with an insulating layer (prepreg). ) and copper foil, and then repeat the outer layer circuit making, or continue to laser drill, and stack the layers outward one at a time.

Generally, the diameter of the laser drilling hole is designed to be 3 ~ 4 mil (about 0.076 ~ 0.1 mm), and the insulation thickness between each laser drilling layer is about 3 mil. Due to the use of laser drilling many times, the key to the quality of the HDI circuit board is the hole pattern after laser drilling and whether the hole can be evenly filled after the subsequent electroplating and filling.





Advantages of HDI PCB
1. Can reduce PCB cost. When the PCB density increases beyond eight layers, it is manufactured by HDI and its cost will be lower than the traditional complex pressing process.
2. Increase circuit density, interconnection of traditional circuit boards and parts
3. Promote the use of advanced building techniques
4. Has better electrical performance and signal accuracy
5. Better reliability
6, can improve thermal performance
7. Can improve RFI/EMI/ESD (RFI/EMI/ESD)
8. Improve design efficiency
HDI boards are widely used in mobile phones, digital cameras, MP3, MP4, notebook computers, automotive electronics and other digital products, among which mobile phones are the most widely used. HDI boards are typically fabricated using a build-up method. The longer the settling time, the higher the technical grade of the board. Regular HDI boards are basically disposable. High-end HDIs use two or more build techniques. At the same time, advanced PCB technologies such as stacked holes, plated hole filling and laser direct drilling are used. High-end HDI boards are mainly used in 3G mobile phones, advanced digital cameras, IC carrier boards, etc.



PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Advanced PCB Manufacturing and PCB Assembly Equipment



CESGATE has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.



Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003 0Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003 1Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003 2Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003 3Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003 4Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003 5Hakko C1390c HDI PCB Vidhan Sabha Exclude From Bom Solidworks Rogers 4003 6

FAQ



Q. What file formats do you accept for production?
CESGATE: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q: What is your inspection policy? How do you control the quality?
CESGATE: In order to ensure the quality of PCB products, flying probe inspection is usually used; electrical fixtures, automatic optical inspection (AOI), BGA parts x-ray inspection, first article inspection ( FAI) etc.
Q: Why choose us?
CESGATE: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow.
Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition.
Q: WHAT IS YOUR MOQ?
CESGATE: MOQ is SPQ normally, while it depends on your specific order. (Sample is available if the buyer can afford the shipping fee.)
Q: What does CESGATE need for a customized PCB order?
CESGATE: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products.
