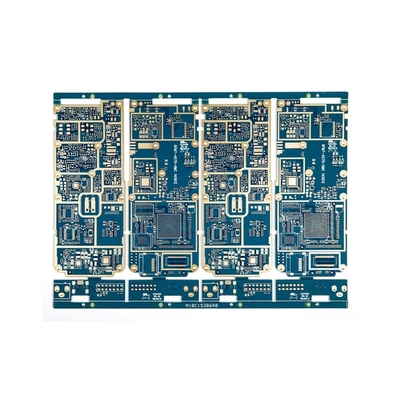

Altium Designer 19 FR4 Taconic TP Series Aluminum Multiboard PCB

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL、IATF16949、ISO9001
Model Number: N/A
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Altium Designer 19 Multiboard Assembly Altium HDI PCB Netsuite Advanced Bom Feature: Altium Designer 19
Surface Finishing: HASL-LF/OSP/ENIG Etc Solder Mask: Green, White Black Green Blue Red, Green Or Other Color As You Want, Green/blue, Green Black Bule White
Certificate: ISO9001/Iso14001/CE/ROHS Testing Service: 100% Electrical Test, Fly-probe, Function Testing, 100% E-testing, Flying Probe Testing
Service: 24Hours Technical Services Base Material: FR4 CEM1 CEM3 Aluminum
High Light:

Altium Designer 19 Multiboard PCB

,

FR4 Multiboard PCB

,

TP series Aluminum Multiboard PCB

Altium Designer 19 Multiboard Assembly Altium HDI PCB Netsuite Advanced Bom





Introduction to Our PCB



The full popularity of printed HDI PCB circuit boards is due to their convenience in almost all products. Below are several types of HDI PCBs.
Rigid PCB Boards: These boards are made of fabricated and sturdy materials that are not easily bent or twisted. They are very complex and powerful, with powerful circuits around them. They are easy to handle during repair and maintenance because they are strong and can withstand strong handling. In addition, the components marked on the board are generally clear, and the signal paths are organized.
Flexible Printed Circuit Boards: As the name suggests, these boards are very flexible and are made of the same flexible materials. Flexible PCB boards can be single-sided, double-sided and multi-layered. This design facilitates easy assembly of parts in small or fragile equipment. The flexibility also helps save a lot of space while making the device lighter. These printed PCB boards are best suited for temperature sensitive operating conditions or industrial and related equipment.
Rigid-Flex PCB: This is a combination of rigid and flexible PCBs. These types of PCBs use multi-layer flex circuits connected to two or more rigid boards. They are lightweight and compact to save space, making them ideal for medical and military applications.
High Frequency PCB: This type of board is used for electrical appliances in the frequency range of 500MHz-2GHz. Most frequency sensitive applications, such as microwave and communication systems, use high frequency circuit boards.
Aluminum-Based PCBs: These have aluminum supports for thermal regulation, high rigidity, and low thermal expansion, and are often used in high-power appliances such as LEDs and power supplies.




Medical Application



Medical HDI PCB applications are growing as fast as the medical device industry itself. Some of the most common medical PCB applications include:
1. Monitors: Personal and healthcare monitors, including blood glucose monitors, heart rate and blood pressure monitors, and more.
2. Scanning Technology: CT scanners and ultrasound technology typically use HDI PCB-based electronics.
3. Control System: The device controls the infusion, flow rate and distribution are electronically controlled.
4. Internal Devices: Pacemakers and similar internal medical devices keep patients healthy and are operated by a central micro-PCB.
5. Scientific Instruments: Medical research uses a large number of scientific instruments to study diseases and test the results of patients. These include electron microscopes, photometers, and generator and compressor control systems, among others.





PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Who are we?

Small to medium volume PCB manufacturer
Multi PCB types manufacturer
EMS/PCBA/OEM customers reliable PCB partner
Trustworthy supplier for PCB trading companies
Powerful Factory, Quality First .
10 years PCB Manufacturer Experience .
Advanced Automation Production Facilities.
ISO9001, ISO14001 And UL Certified.
