FR408 FR408HR Altium Designer 18 Eurocircuits PCB ISO13485

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL、IATF16949、ISO9001
Model Number: N/A
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Altium Designer 18 Eurocircuits Assembly HDI PCB Production Bill Of Materials Feature: Altium Designer 18
Surface Finishing: HASL,Lead-free HASL ,OSP,Flash Gold,ENIG, Solder Mask: Green, White Black Green Blue Red, Green Or Other Color As You Want, Green/blue, Green Black Bule White
Certificate: IATF16949/ISO13485/ISO9001/ISO14001 Testing Service: 100% Electrical Test, Fly-probe, Function Testing, 100% E-testing, Flying Probe Testing
PCB Outline: Square,circle,irregular(with Jigs) Service: 24Hours Technical Services
High Light:

FR408 altium designer 18 ISO13485

,

FR408 Eurocircuits PCB ISO13485

,

FR408 FR408HR Eurocircuits PCB ISO13485

Altium Designer 18 Eurocircuits Assembly HDI PCB Production Bill Of Materials



PCB surface treatment
Since the copper surface of the HDI PCB is easily oxidized in the environment, it must be reprocessed and covered with a layer of coating on the exposed area that is not covered with solder mask ink to protect the process from oxidation. In response to various subsequent processing needs, various surface treatment processing methods with different materials, prices and different degrees of protection have been developed.

Common HDI PCB surface treatments include the following:Bare copper plate, spray tin plate, lead-free spray tin plate, chemical gold plate, electroplating gold, chemical silver plate, OSP plate.



Application

The role of printed circuit boards in electronic equipment is to provide mechanical support for fixing and assembling for transistors, integrated circuits, resistors, capacitors, inductors and other components; to realize the integration of transistors, integrated circuits, resistors, capacitors, inductors and other components. Wiring and electrical connection and electrical insulation between components meet their electrical characteristics; provide identification characters and graphics for the inspection and maintenance of components in the electronic assembly process, and provide solder resist graphics for wave soldering.Since printed circuit boards are used in electronic equipment, manual wiring errors are avoided and automatic insertion, soldering and inspection are realized. This can ensure the quality and reliability of electronic products, improve labor productivity, reduce production costs, and facilitate maintenance.



PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Company introduction

CESGATE provides Electronic Manufacturing Services (EMS) for your products that require surface mount, through hole, BGA and mixed technology.Our main services include HDI PCB assembly (Electronic assembly), component procurement and HDI PCB fabrication from quick turn, sample run to volume production.Our customers are who of the Medical, Instrumentation, Intelligent home, Automotive, Consumer electronics industry and Robotics industries.Full range of HDI PCB manufacturing and assembly services to fit all of your printed circuit board needs.Producing a qualified product is crucial to CESGATE and to you. To ensure PCBs are compliant we use a number of inspection and Quality assurance procedures. Including Automatic Optical Inspection equipment and CAD software as well as continuous improvements. We are accredited to ISO9001:2015 as well as being a preferred supplier to many of our customers.With access to global suppliers, and distribution networks we can source parts for your assemblies as needed. Using our own in-house Stock and MRP system which links to our production data we are able to manage Inventory levels, lead times and buffer stocks to meet your deadlines.

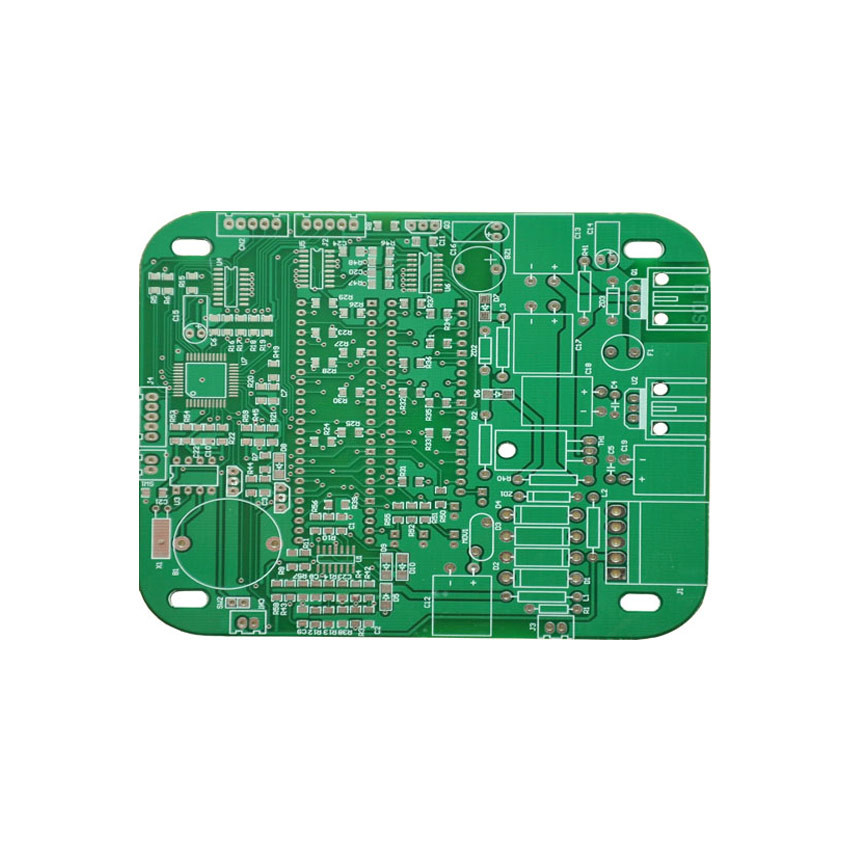

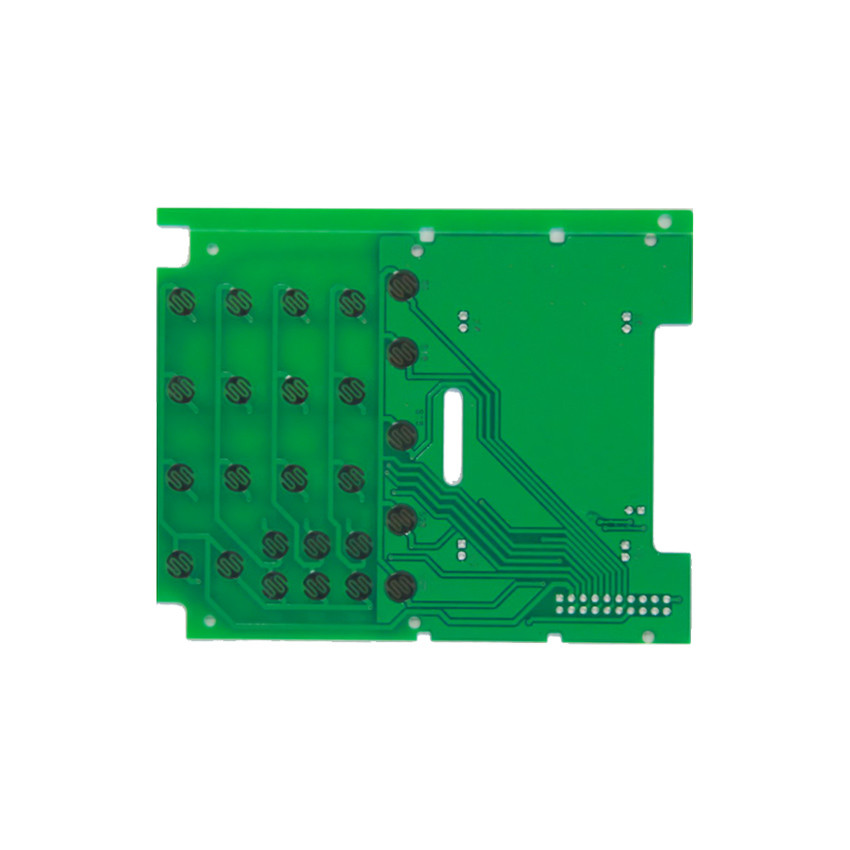

FR408 FR408HR Altium Designer 18 Eurocircuits PCB ISO13485 0FR408 FR408HR Altium Designer 18 Eurocircuits PCB ISO13485 1FR408 FR408HR Altium Designer 18 Eurocircuits PCB ISO13485 2FR408 FR408HR Altium Designer 18 Eurocircuits PCB ISO13485 3FR408 FR408HR Altium Designer 18 Eurocircuits PCB ISO13485 4FR408 FR408HR Altium Designer 18 Eurocircuits PCB ISO13485 5FR408 FR408HR Altium Designer 18 Eurocircuits PCB ISO13485 6

FAQ



Q: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?
CESGATE: 1. Our products are all original, and we will test the goods before shipment by professional machines like KEYSIGHT E4991A and KEYSIGHT E4980.
2. If The buyer need Test Report, we can send the product to anthoritative institution such as White horse Laboratories(SZ) Limited,Global Electronics Testing,etc.
Q: What is your inspection policy? How do you control the quality?
CESGATE: In order to ensure the quality of PCB products, flying probe inspection is usually used; electrical fixtures, automatic optical inspection (AOI), BGA parts x-ray inspection, first article inspection ( FAI) etc.
Q: The Wire Bonding process is required when the circuit board is printed. What should I pay attention to when making the circuit board?
CESGATE: When making circuit boards, the surface treatment options are mostly "nickel palladium gold ENEPIG" or "chemical gold ENIG". If the Al aluminum wire is used, the gold thickness is recommended to be 3μ”~5μ”, but if the Au gold wire is used, the gold thickness should preferably be more than 5μ”.
Q: Do you have any other services?
CESGATE: We mainly focus on the procurement services of PCB + assembly + components. In addition, we can also provide programming, testing, cable, housing assembly services.
Q: What does CESGATE need for a customized PCB order?
CESGATE: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products
