Heavy Copper Quick Turn High Frequency PCB Hasl Lead Free Printed Circuit Board

Basic Information
Place of Origin: China
Brand Name: Cesgate
Certification: UL, IATF16949, ISO9001, ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS(NO MOQ)
Price: $1.00
Packaging Details: PCB: Vacuum Packing / PCBA: ESD + Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Product Name: Heavy Copper Quick Turn High Frequency PCB Hasl Lead Free Printed Circuit Board Board Thickness: 1.6mm
Solder Type: Water Soluble Solder Paste,Leaded And Lead-Free Min. Line Width/Space: 0.1mm/0.1mm
Board Material: FR4 Max. Panel Size: 610mm*610mm
Min Components Size: 0201-54 Sq.mm (0.084 Sq.inch),Long Connector,CSP,BGA,QFP Min. Hole Size: 0.2mm

Product Description:

  High frequency PCB requires special skills that your normal manufacturing (with standard PCB technology) partner may not be able to handle. We can properly design your high frequency PCB projects with proper High Frequency laminates with tight turnarounds, provide detail information of material options and DFM considerations, and also produce with high-quality controls to ensure performance of your products life cycle.CESGATE has become a leading high frequency PCB manufacturer that focuses on High Frequency PCB fabrication. You can rely on CESGATE with your high frequency PCB products because we have the engineering team, equipment, and experiences in dealing with high frequency laminates.The design of controlled impedance line is to avoid the signal loss, there are two kind of method to set controlled impedance, that is microstrip and stripline: to support better result, the existence of the trace on the outer layers that come with a ground plane below must be closer to the outer layers. Stripline is better as compared to microstrip because it has an ability to contain radiation and signal.

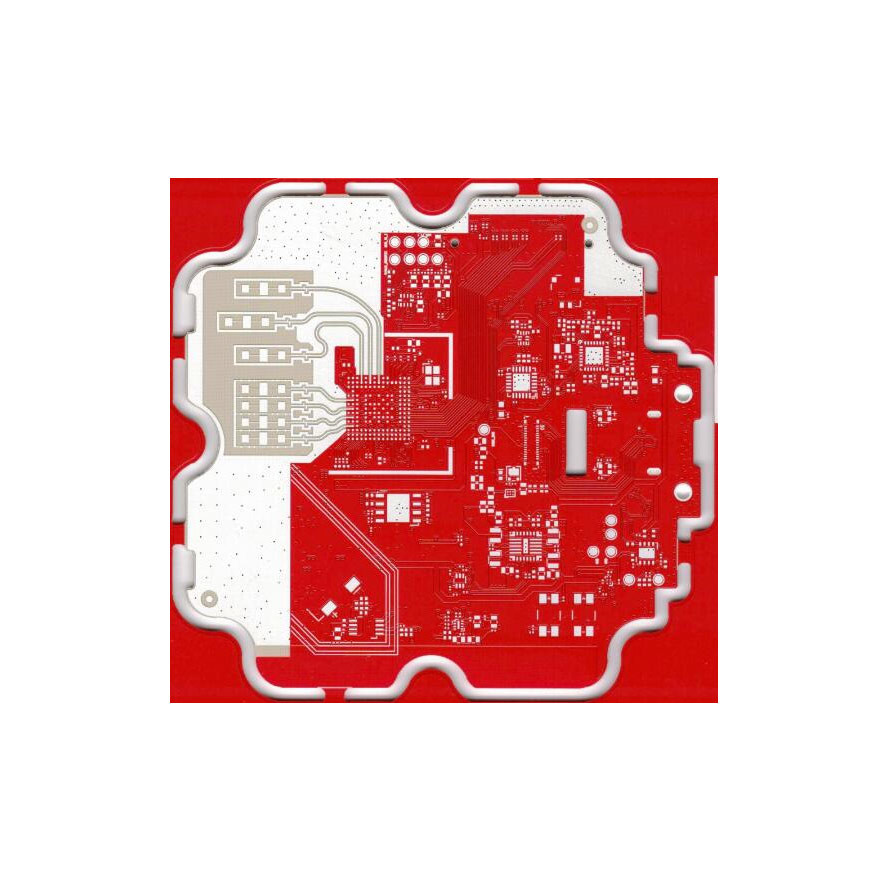

Heavy Copper Quick Turn High Frequency PCB Hasl Lead Free Printed Circuit Board 0



Features:

The simple way of understanding High Frequency PCBs is by understanding its features.

The features give you an idea of what a High Frequency PCBs are.To avoid any delay in the transmission of the frequency signal, the DK needs to be smaller and stable. Actually, the lower it is, the better for efficient frequency transmission.The DF needs to be small since it affects the quality of the transmission of the signal. If possible, use a smaller DF for clear signal transmission.To avoid separation of the copper foil when there is temperature change, you need to check on the thermal expansivity of the PCB. For effectiveness, you need to ensure that the thermal expansivity of the PCB materials is the same as that of the copper foil.Ensure that the heat resisting property, impact endurance, chemical resistance and peel of resistance needs to be appropriate.





Technical Parameters:

Property Value
Copper Thickness 2oz
Impedance Control Yes
Max. Layer Count 20
Min. Line Width/Space 0.1mm/0.1mm
Max. Copper Weight 6oz
Solder Mask Color Green
Min. Annular Ring 0.1mm
Max. Panel Size 610mm*610mm
Silk Screen Color White
Min. Hole Size 0.2mm
Application High-Speed Printed Circuit Board Assembly, High-Frequency Printed Wiring Board Assembly, High-Frequency Printed Circuit Board Assembly


Applications:

High-frequency PCBs are widely used in many different applications. With Cesgate's high-frequency PCBs, you can get the highest performance out of your device. Our PCBs are certified by UL, IATF16949, ISO9001, and ISO14001, and are available with no minimum order quantity. Their price starts at $1.00, and they come with either vacuum packing for PCBs or ESD + packing for PCBA. Delivery time is just 3-7 working days. Payment can be done via T/T or L/C. We also guarantee a production capability of 13kk soldering spots per day. Furthermore, our PCBs have a minimum hole size of 0.2mm, a maximum layer count of 20, a minimum line width/space of 0.1mm/0.1mm, and a maximum panel size of 610mm x 610mm. Lastly, our PCBs come with a solder mask color of green.

High-frequency PCBs are ideal for applications that require high-speed printed circuit boards, high-speed printed circuit board assemblies, high-speed printed wiring boards, and high-speed printed wiring board assemblies. Cesgate's high-frequency PCBs are perfect for these applications as they offer the highest performance available in the market. With their reliable certifications, competitive prices, and fast delivery times, they are the perfect choice for any project.

Characteristics:

Understanding the characteristics of your High Frequency PCB laminate material is critical when manufacturing your PCB.

Dielectric constant (Er)
You will be able to identify and understand the behavior of your PCB.

Dielectric constant is a measure of the ability of a material to store electrical energy while in an electric field.

This ability depends on the direction of the current implying that the dielectric current changes as the axis of the material changes.

What you need to understand is the frequency range that you will subject the material to while testing.

Also, you need to know the testing method and any variable present for the frequency range.

Lastly, you have to consider the constant dielectric conditions of your PCB that can match that of your application.



Support and Services:

High Frequency PCB Technical Support and Service

High Frequency PCBs are used in a wide variety of applications and industries, from medical to military, and require specialized knowledge and expertise to produce. At ABC Company, we provide customers with the highest quality technical support and service for High Frequency PCBs.

Our team of engineers and technicians are experienced in designing, prototyping and manufacturing High Frequency PCBs, and can provide customers with custom solutions for their most challenging applications. Our experts can also provide comprehensive support for any product, from initial design to final assembly.

We offer a variety of services for High Frequency PCBs, including:

  • Design Consultation
  • Prototype Development
  • Manufacturing and Assembly
  • Testing and Quality Control
  • Technical Support and Troubleshooting

Our team of professionals is dedicated to providing customers with the highest quality service and support for their High Frequency PCBs. With our experience and expertise, we can ensure that your products are delivered on time and to the highest standards.

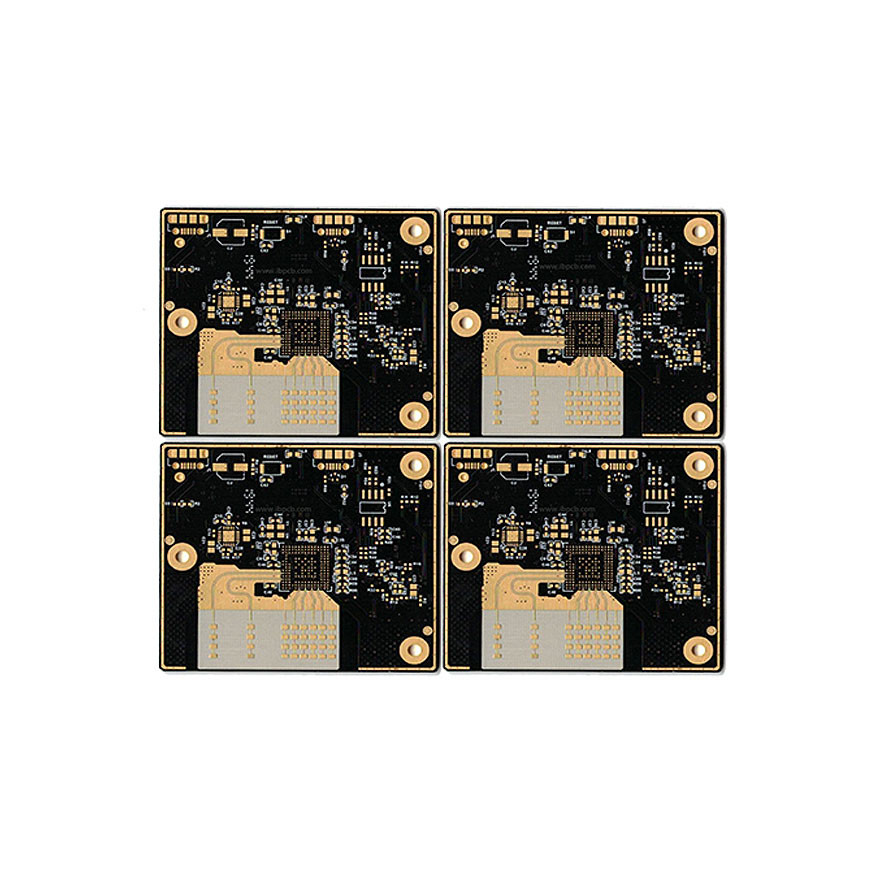

Heavy Copper Quick Turn High Frequency PCB Hasl Lead Free Printed Circuit Board 1Heavy Copper Quick Turn High Frequency PCB Hasl Lead Free Printed Circuit Board 2Heavy Copper Quick Turn High Frequency PCB Hasl Lead Free Printed Circuit Board 3Heavy Copper Quick Turn High Frequency PCB Hasl Lead Free Printed Circuit Board 4

FAQ:

Q1: The Wire Bonding process is required when the circuit board is printed. What should I pay attention to when making the circuit board?
A1: When making circuit boards, the surface treatment options are mostly "nickel palladium gold ENEPIG" or "chemical gold ENIG". If the Al aluminum wire is used, the gold thickness is recommended to be 3μ”~5μ”, but if the Au gold wire is used, the gold thickness should preferably be more than 5μ”.
Q2: What is the minimum order quantity for High Frequency PCB?
A2: The minimum order quantity for High Frequency PCB is 1PCS(NO MOQ).
Q3: What is the price for High Frequency PCB?
A3: The price for High Frequency PCB is $1.00.
Q4: What is the packaging for High Frequency PCB?
A4: PCB: Vacuum Packing / PCBA: ESD + Packing.
Q5: What are the types of solder mask?
A5: There are traditional epoxy resin IR baking type, UV curing type, Liquid Photo Imageable Solder Mask and Dry film solder mask. Currently, the liquid solder mask is the main type.
