FR4 Multilayer Printed Wiring Board Customized Board Multilayer PCB Manufacturing Process

Basic Information
Place of Origin: China
Brand Name: Cesgate
Certification: UL,IATF16949,IS09001,ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: $1.00
Packaging Details: PCB: Vacuum Packing / PCBA: ESD + vacuum Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Min. Line Width/Space: 3/3mil Board Size: Customized
Layer Count: 2-64 Material: FR4
Silkscreen Color: White/Black/Yellow/Red Board Thickness: 0.2-10mm
Surface Finish: HASL/ENIG/OSP/Immersion Gold/Immersion Tin/Immersion Silver Copper Thickness: 0.5-12oz

Product Description:

Multilayer PCBs (Printed Circuit Boards) or PWBs (Printed Wiring Boards) are boards that are composed of several layers of electrical circuit materials, like FR4, which are sandwiched together. These boards are widely used in the electronics industry, and are capable of performing multiple functions. With the ability to accommodate up to 64 layers, these Multilayer Printed Circuit Boards and Wiring Boards are extremely versatile and are able to handle a wide range of applications.

The Multilayer Printed Circuit Boards and Wiring Boards are manufactured with advanced technologies to ensure that they have a high quality and reliable performance.

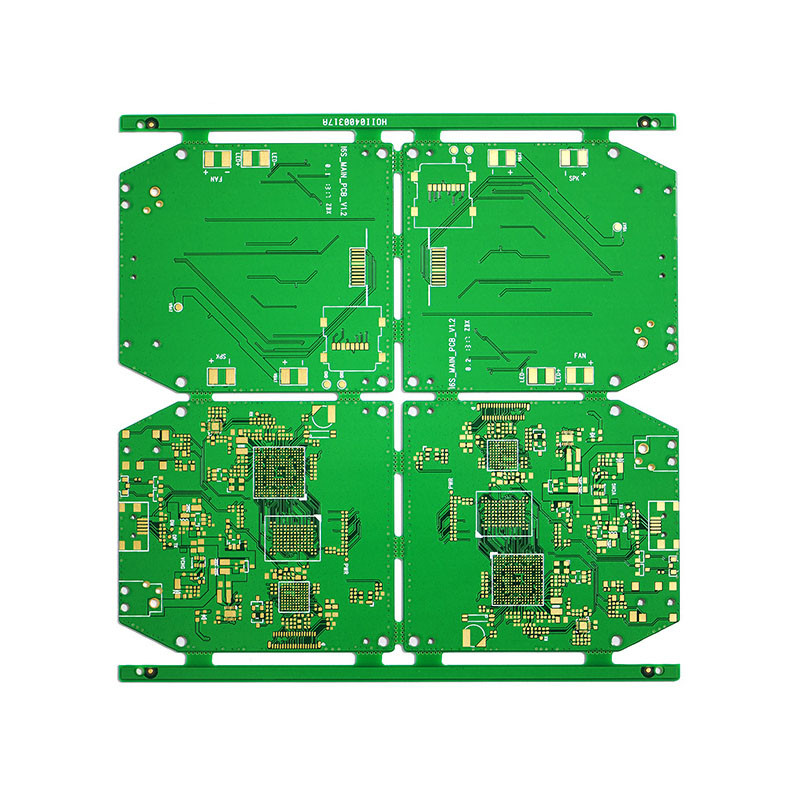

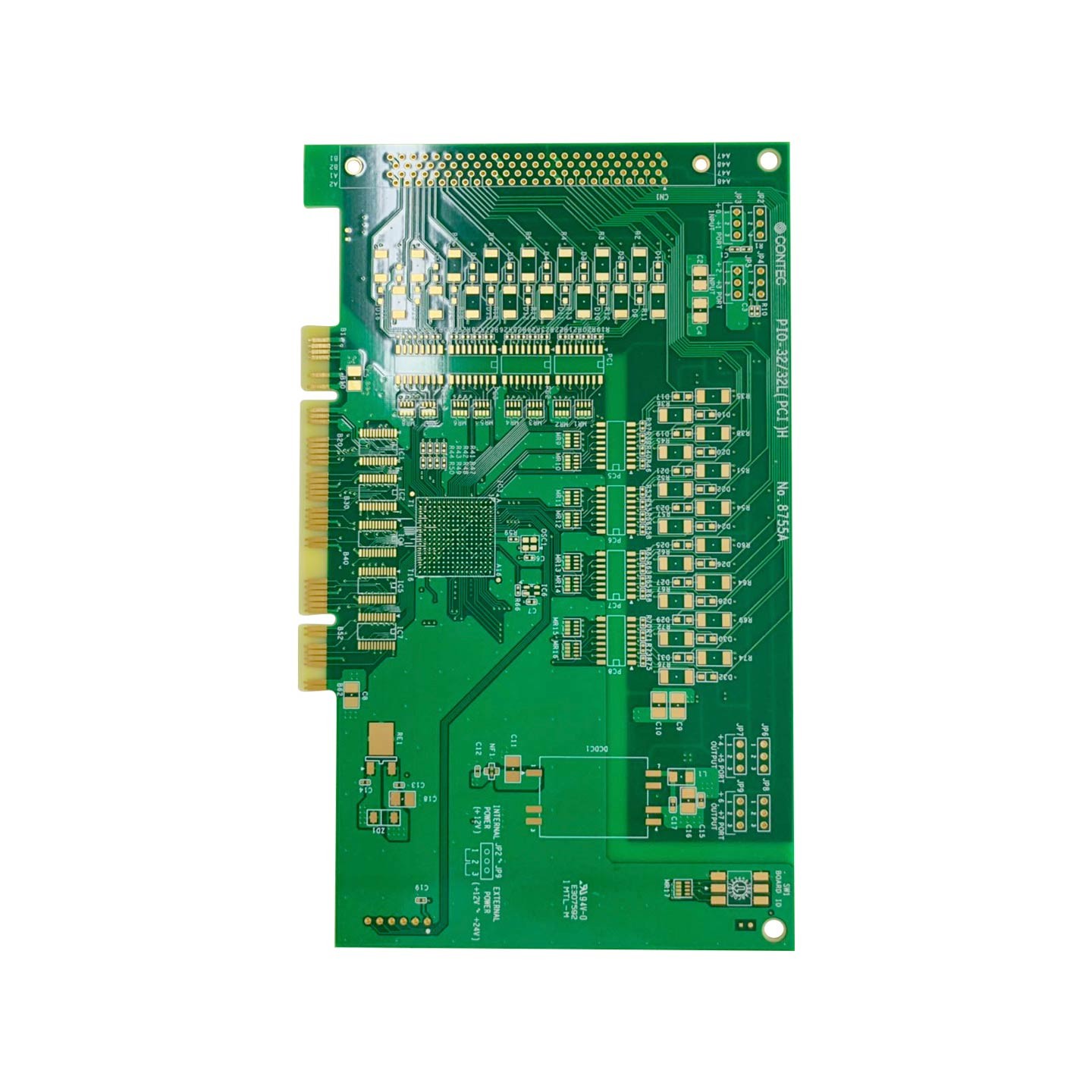

FR4 Multilayer Printed Wiring Board Customized Board Multilayer PCB Manufacturing Process 0FR4 Multilayer Printed Wiring Board Customized Board Multilayer PCB Manufacturing Process 1

Technical Parameters:

Parameter Value
Board Size Customized
Board Thickness 0.2-10mm
Layer Count 2-64
Surface Finish HASL/ENIG/OSP/Immersion Gold/Immersion Tin/Immersion Silver
Silkscreen Color White/Black/Yellow/Red
Copper Thickness 0.5-12oz
Solder Mask Color Green/Blue/White/Black/Yellow/Red
Material FR4
Min. Hole Size 0.2mm
Min. Line Width/Space 3/3mil


Applications:

Multilayer Printed Circuit Board (PCB) from Cesgate is the perfect solution for electronic devices with complex wiring. The required circuits are made on the front and back surfaces of multiple double-sided boards, and an insulating layer (Prepreg) is sandwiched between the two double-sided boards and then pressed together to form several layers of copper. The construction of the wire is usually an even number of layers due to the use of multiple double-sided laminates. The number of copper wires that can be made by multi-layer boards is the largest, and it is used in more complex circuits. At present, the motherboards used in computers mostly use eight-layer boards because of too many components. Generally, small electronic products, such as mobile phones, tablet computers, etc. Due to the requirement of small size, at least an eight-layer board is required. The more electronic components, the smaller the product size, and usually more layers of PCB are required.

Customization:

Customized Multilayer PCB Service

Brand Name: Cesgate

Model Number: NA

Place of Origin: China

Certification: UL,IATF16949,IS09001,ISO14001

Minimum Order Quantity: 1PCS( NO MOQ)

Price: $1.00

Packaging Details: PCB: Vacuum Packing / PCBA: ESD + vacuum Packing

Delivery Time: 3-7 working days

Payment Terms: T/T, L/C

Supply Ability: 13kk soldering spot/day

For Customized Multilayer Printed Wiring Board, Multi-Layer wiring Board, Multilayer Printed Wiring Board:

Layer Count: 2-64

Surface Finish: HASL/ENIG/OSP/Immersion Gold/Immersion Tin/Immersion Silver

Board Size: Customized

Solder Mask Color: Green/ Blue/ White/ Black/ Yellow/ Red

Silkscreen Color: White/Black/Yellow/Red



Support and Services:

Multilayer PCB offers a wide range of technical support and services to ensure that your products are running at their peak performance. Our team of experienced engineers and technicians are available to provide hands-on support with any questions or issues you may have.

We can help you with board design and layout, component selection, fabrication, assembly, and testing. We can also provide assistance with troubleshooting, repairs, and upgrades. Our goal is to provide you with the best solutions to meet your needs.

We are committed to providing the highest level of support and service to our customers. If you have any questions or concerns, please contact us. We are here to help you get the most out of your products and ensure your satisfaction.



Packing and Shipping:

Packaging and Shipping for Multilayer PCB

Multilayer PCBs are delicate products that can easily be damaged if not properly packaged and shipped. In order to ensure that the product arrives safely, the following packaging and shipping procedures should be followed:

  • Multilayer PCBs should be individually sealed in antistatic packaging.
  • The sealed packages should then be placed in a sturdy cardboard box with cushioning material to prevent damage.
  • The box should then be securely taped, and the address clearly marked on the outside.
  • The package should then be sent via a reliable shipping carrier.


FAQ:

  • Q: What is the brand of this product?
    A: The brand of this product is Cesgate.
  • Q: What is the model number?
    A: The model number is NA.
  • Q: Where is the product manufactured?
    A: This product is manufactured in China.
  • Q: What certifications does this product have?
    A: This product has UL, IATF16949, IS09001, and ISO14001 certifications.
  • Q: The Wire Bonding process is required when the circuit board is printed. What should I pay attention to when making the circuit board?
    A: When making circuit boards, the surface treatment options are mostly "nickel palladium gold ENEPIG" or "chemical gold ENIG". If the Al aluminum wire is used, the gold thickness is recommended to be 3μ”~5μ”, but if the Au gold wire is used, the gold thickness should preferably be more than 5μ”.
