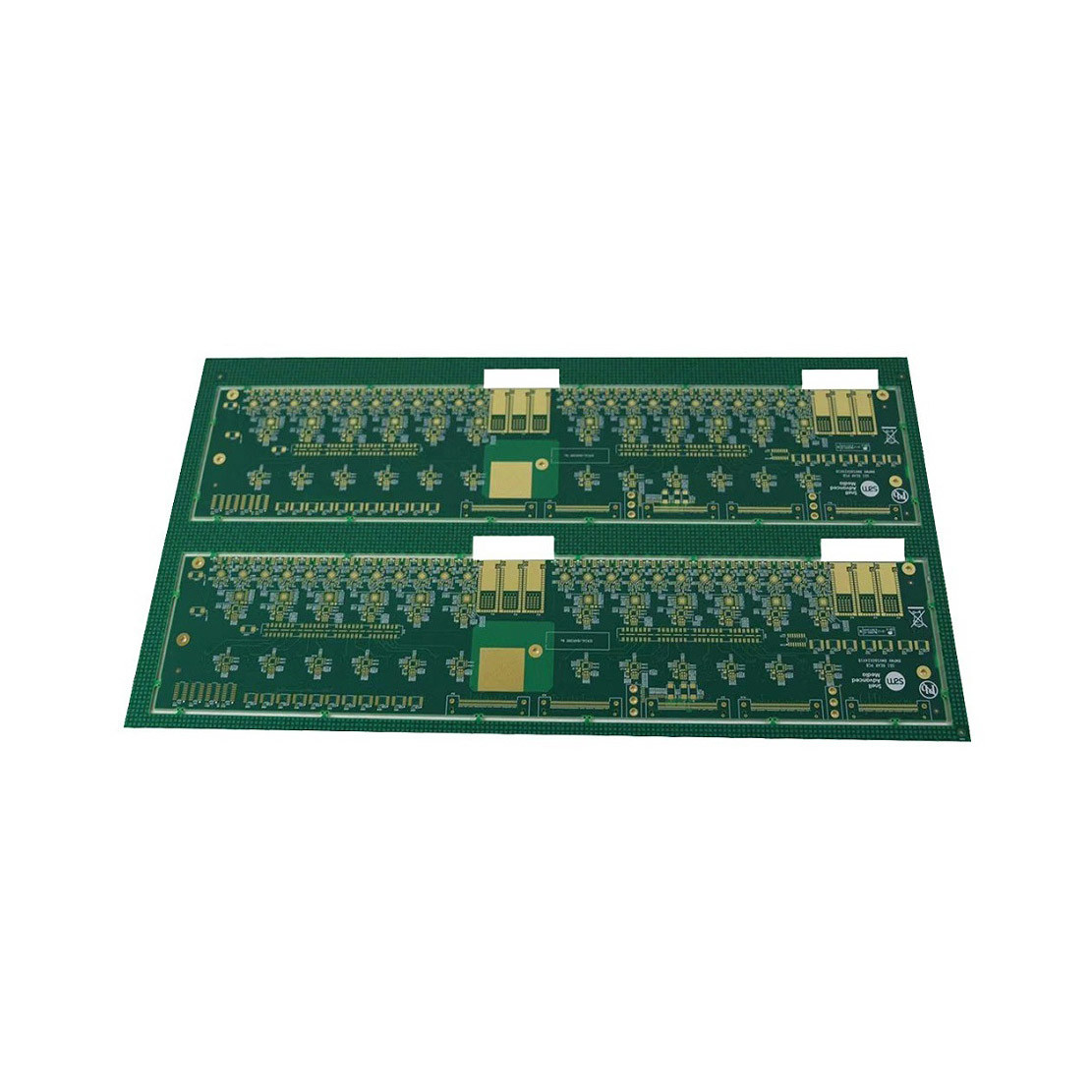

4OZ Copper Electronic Printed Subwoofer Circuit Board RO3003

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: ISO9001/ ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Subwoofer Circuit Board Turnkey Assembly Services Multilayer PCB Tally Prime Bom Feature: Subwoofer Circuit Board
Supply Ability: 1000 Unit/Units Per Week Testing Service: 100% AOI Testing/ICT/FCT Test
FR4 Multilayer PCB: Printed Circuit Board HASL Base Material: FR-4,CEM-3,High TG,FR4 Halogen Free,RIGID-FLEX
Surface Finishing: IG, HASL LEAD FREE Copper Thickness: 0.5-4OZ / 1 Oz / 2Oz Or Custom
High Light:

4OZ Copper Subwoofer Circuit Board

,

Subwoofer Circuit Board RO3003

,

4OZ Copper electronic printed circuit board

Subwoofer Circuit Board Turnkey Assembly Services Multilayer PCB Tally Prime Bom





CESGATE's advantages


1. Material arrives, arrange assembly immediately
2. On the SMD welding production line,
3. Accelerate the product development process.

4. 1600 square meters central warehouse
5. Full range of Yageo, Murata, Avx, Kemet RC
6.Temperature and humidity control, first in first out mechanism





PCB Capabilities

NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





4OZ Copper Electronic Printed Subwoofer Circuit Board RO3003 04OZ Copper Electronic Printed Subwoofer Circuit Board RO3003 14OZ Copper Electronic Printed Subwoofer Circuit Board RO3003 24OZ Copper Electronic Printed Subwoofer Circuit Board RO3003 34OZ Copper Electronic Printed Subwoofer Circuit Board RO3003 44OZ Copper Electronic Printed Subwoofer Circuit Board RO3003 54OZ Copper Electronic Printed Subwoofer Circuit Board RO3003 6



Company Introduction



Chengdu Cesgate Technology Co., Ltd. is located in Chengdu High-tech Zone, Sichuan, China, with a standardized modern industrial plant of about 4,000 square meters. The company is a leading electronic manufacturing service provider in Chengdu. The factory has passed the ISO9001 quality management system certification and ISO14001 environmental protection system certification issued by SGS. Since its establishment, the company has adhered to the business philosophy of "professional quality, continuous innovation, and high-quality service".CESGATE provides Electronic Manufacturing Services (EMS) for your products that require surface mount, through hole, BGA and mixed technology.Our main services include multilayer PCB assembly (Electronic assembly), component procurement and multilayer PCB fabrication from quick turn, sample run to volume production.Our customers are who of the Medical, Instrumentation, Intelligent home, Automotive, Consumer electronics industry and Robotics industries.Full range of multilayer PCB manufacturing and assembly services to fit all of your printed circuit board needs.



FAQ



Q: Are my files safe?
CESGATE: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
If requested by the client, we will sign an NDA subject to local laws on the client's side and promise to keep client data highly confidential.
Q: Are my files safe?
CESGATE: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
If requested by the client, we will sign an NDA subject to local laws on the client's side and promise to keep client data highly confidential.
Q: Are my files safe?
CEGSATE: Your files are kept very safe, and we are protecting intellectual property for our clients throughout the process. All files provided by customers are never shared with any third party.
Q: Why should we buy from CESGATE?
CESGATE: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow.
Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition. From the design to the complete product, CESGATE's professional team will put you at ease
