| Place of Origin: | China |
|---|---|
| Brand Name: | CESGATE |
| Certification: | ISO9001/ ISO14001 |
| Model Number: | NA |
| Minimum Order Quantity: | 1PCS( NO MOQ) |
| Price: | Negotiable (Depends on your GERBER and BOM) |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Delivery Time: | 1-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000pcs/month |
| Product Name: | 4 Layer Printed Circuit Board Production Multilayer Prototype Circuit Board Fabrication | Material: | FR4 /aluminum/ceramicCEM1 |
|---|---|---|---|
| Supply Ability: | 1000 Unit/Units Per Week | Testing Service: | 100% AOI Testing/ICT/FCT Test |
| FR4 Multilayer PCB: | Printed Circuit Board HASL | Certificate: | ISO9001/Iso14001/CE/ROHS |
| Surface Treatment: | HASL OSP IMS IMT ENIG | MOQ: | No MOQ |
| High Light: | 4Layer Printed Circuit Board,Multilayer Prototype Circuit Board |
||

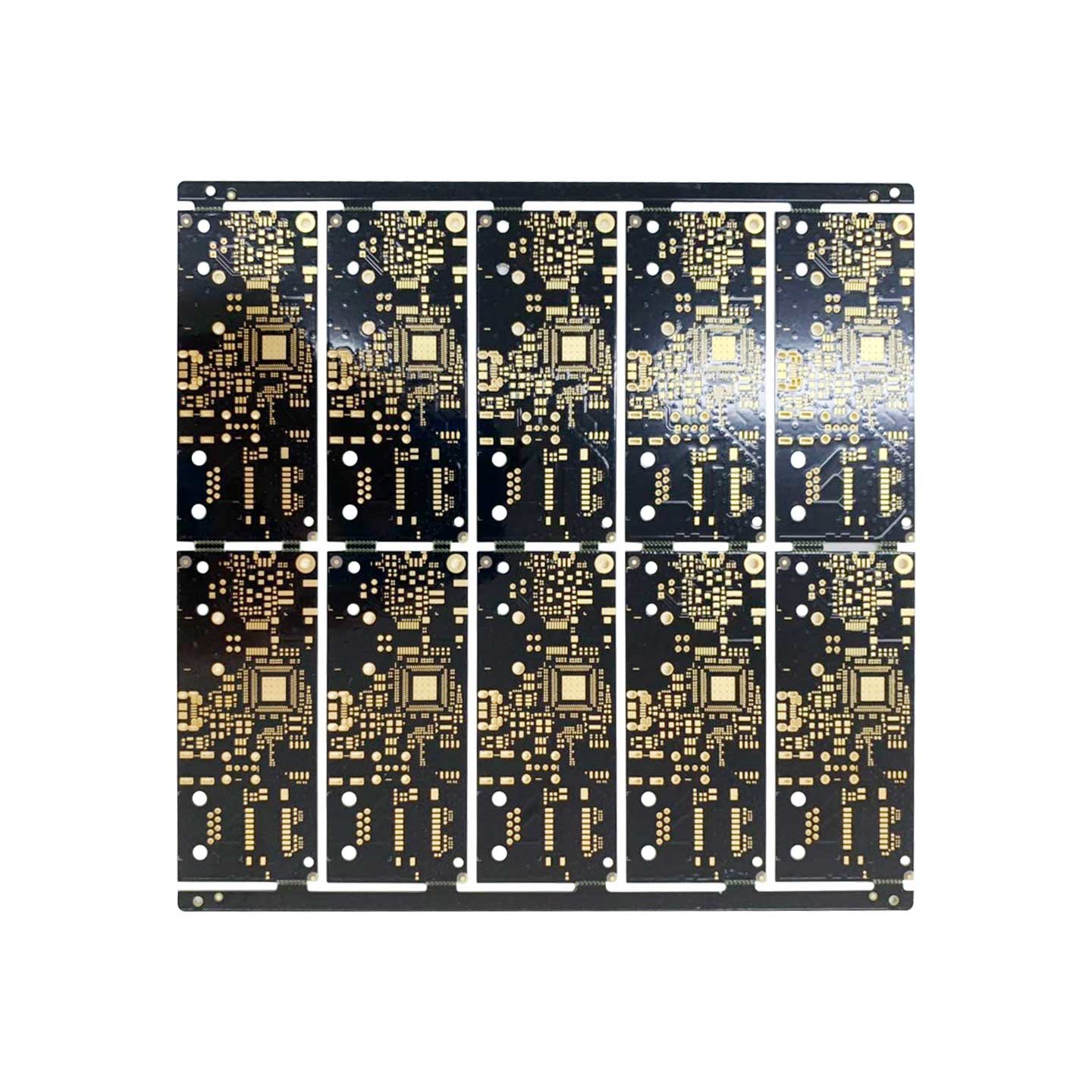

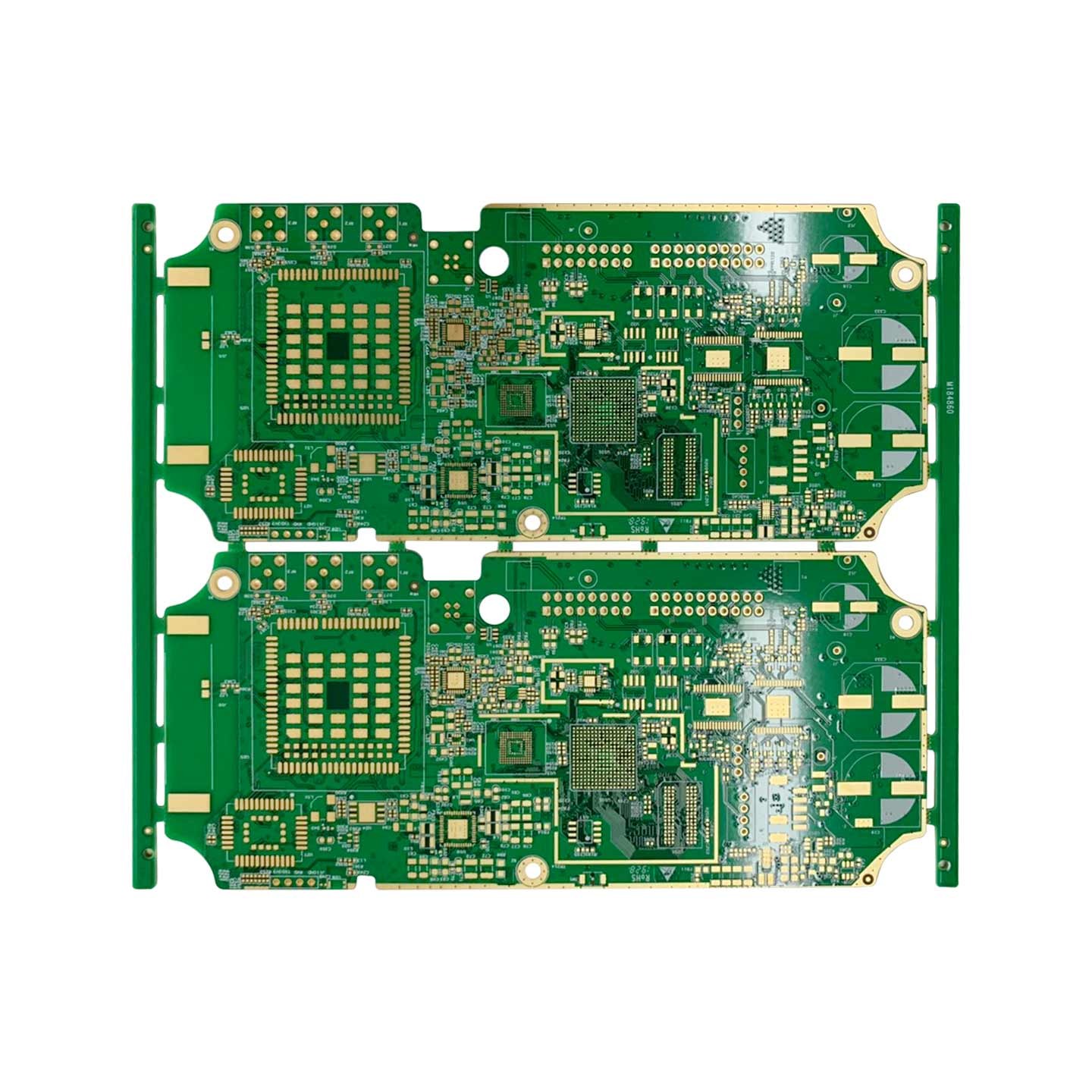

4 Layer Printed Circuit Board Production Multilayer Prototype Circuit Board Fabrication
The reason why multilayer PCB can be used more and more widely is because it has many unique advantages, which are summarized as follows.
1 can be high density. For decades, with the improvement of integrated circuit integration and the advancement of mounting technology, the high density of printed boards has been developed.
2 High reliability. Through a series of inspections, tests and burn-in tests, the multilayer PCB can work reliably for a long time (usually 20 years).
3 Designability. For PCB performance (electrical, physical, chemical, mechanical, etc.) requirements, printed board design can be achieved through design standardization, standardization, etc., with short time and high efficiency.
4 Manufacturability. With modern management, standardized, large-scale (quantitative) and automated production can be carried out to ensure the consistency of product quality.
5 Testability. We have established relatively complete test methods, test standards, various test equipment and instruments to test and evaluate the eligibility and service life of PCB products.
6 can be assembled. Multilayer PCB products not only facilitate the standardized assembly of various components, but also facilitate automation and mass production. At the same time, PCB and various component assembly parts can be assembled into larger parts and systems, up to the whole machine.
7 Maintainability. Since PCB products and various component assembly parts are designed and produced on a large scale, these parts are also standardized. Therefore, once the system fails, it can be replaced quickly, easily and flexibly, enabling the system to quickly return to work. Of course, there can be many more examples. Such as miniaturization, light weight, high-speed signal transmission, etc.
PCB Capabilities
| NO. | Items | Capabilities |
| 1 | Layers | 2-68L |
| 2 | Maximum machining size | 600mm*1200mm |
| 3 | Board thickness | 0.2mm-6.5mm |
| 4 | Copper thickness | 0.5oz-28oz |
| 5 | Min trace/space | 2.0mil/2.0mil |
| 6 | Minimum finished aperture | 0. 10mm |
| 7 | Maximum thickness to diameter ratio | 15:1 |
| 8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
| 9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| 11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
| 12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| 13 | Profiling Punching | Routing,V-CUT,Beveling |
| 14 | Bow&twist | ≤0.5% |
| 15 | HDI type | 1+n+1,2+n+2,3+n+3 |
| 16 | Min mechanical aperture | 0.1mm |
| 17 | Min laser aperture | 0.075mm |
Chengdu Cesgate Technology Co., Ltd. was established in Chengdu, Sichuan, China. It is an electronic manufacturing service provider and printed circuit board manufacturer, providing PCB design layout, PCB manufacturing, PCB assembly, component procurement, PCBA functional testing, finished product assembly, etc. worldwide One-stop service. A wide range of end markets including PCBAs for automotive, consumer, industrial and healthcare. Our products are exported all over the world, including North America, South America, European countries and Asia, etc. The company has strong professional R&D engineers and more than 10 SMT production lines
FAQ
| Q: Is CESGATE a factory or trade company? CESGATE: CESGATE is a factory with PCB factory located in Senzhen and SMT assembly factories in both Shenzhen and Chengdu. |
| Q: Can we inspect quality during production? CESGATE: Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house. |
| Q: How can we ensure our information should not let third party to see our design? CESGATE: We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level. |
| Q: What does CESGATE need for a customized PCB order? CESGATE: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products. |
| Q: What does CESGATE need for a customized PCBA order? CESGATE: When you place a PCBA order, you need to provide Gerber or pcb file and the BOM list to us. |
