| Place of Origin: | China |
|---|---|
| Brand Name: | CESGATE |
| Certification: | ISO9001/ ISO14001 |
| Model Number: | NA |
| Minimum Order Quantity: | 1PCS( NO MOQ) |
| Price: | Negotiable (Depends on your GERBER and BOM) |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Delivery Time: | 1-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000pcs/month |
| Product Name: | Hakko C1390c Multilayer PCB Ipc2221 Bom Tally Erp 9 Altium Keep Out Layer | Feature: | Hakko C1390c |
|---|---|---|---|
| Supply Ability: | 1000 Unit/Units Per Week | Testing Service: | 100% AOI Testing/ICT/FCT Test |
| Service: | Full Turnkey Service PCB+Components+Assembly | Function: | PCBA Board Service Prototype PCB Assembly |
| Certificate Standard: | IPC-A-600H Class 2, Class 3, TS16949,ROHS | Board Thickness: | 1.6mm |
| High Light: | Hakko C1390c Multilayer PCB,Ipc2221 Multilayer PCB |
||

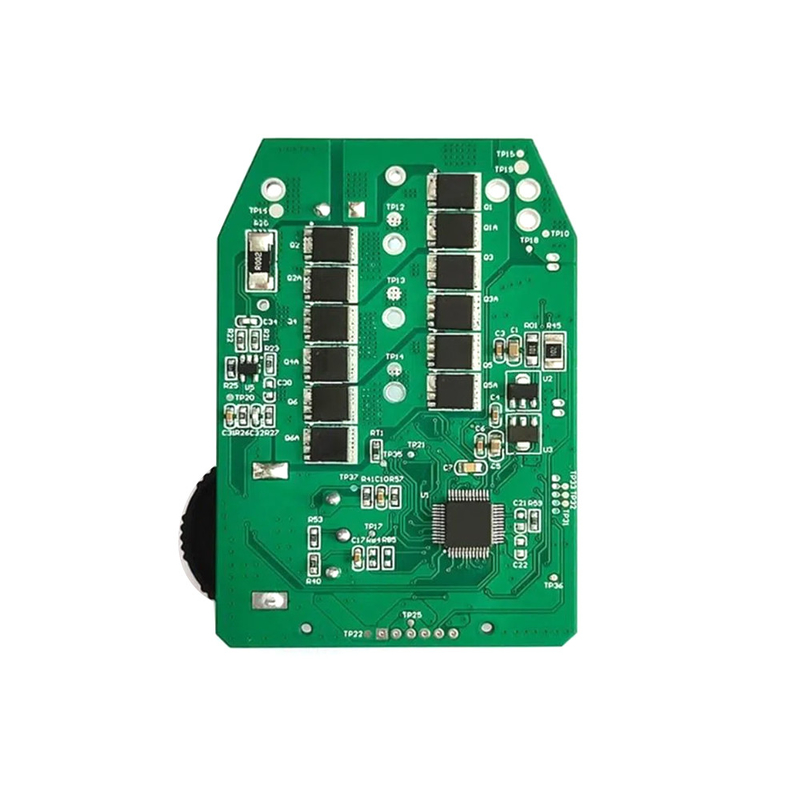

Hakko C1390c Multilayer PCB Ipc2221 Bom Tally Erp 9 Altium Keep Out Layer
Who are we?
Small to medium volume PCB manufacturer
Multi PCB types manufacturer
EMS/PCBA/OEM customers reliable PCB partner
Trustworthy supplier for PCB trading companies
Powerful Factory, Quality First .
10 years PCB Manufacturer Experience .
Advanced Automation Production Facilities.
ISO9001, ISO14001 And UL Certified.
PCB Capabilities
| NO. | Items | Capabilities |
| 1 | Layers | 2-68L |
| 2 | Maximum machining size | 600mm*1200mm |
| 3 | Board thickness | 0.2mm-6.5mm |
| 4 | Copper thickness | 0.5oz-28oz |
| 5 | Min trace/space | 2.0mil/2.0mil |
| 6 | Minimum finished aperture | 0. 10mm |
| 7 | Maximum thickness to diameter ratio | 15:1 |
| 8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
| 9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| 11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
| 12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| 13 | Profiling Punching | Routing,V-CUT,Beveling |
| 14 | Bow&twist | ≤0.5% |
| 15 | HDI type | 1+n+1,2+n+2,3+n+3 |
| 16 | Min mechanical aperture | 0.1mm |
| 17 | Min laser aperture | 0.075mm |
Aerospace applications
Like automotive applications, aerospace applications of PCBs require extreme precision and durability. Jets and rockets often experience a lot of turbulence in the atmosphere, which means that ordinary rigid PCBs can be stressed enough to be damaged in the process. To solve this problem, most aerospace manufacturers use flexible PCBs that, in addition to being resistant to vibration damage, are lightweight and small.
In addition to being durable, aerospace PCBs must be very high-functioning and precise, manufactured to the best of their ability to avoid technical issues. Since the electronics used in aerospace technology are critical to the safety of vehicles and their crews, it is critical that they function flawlessly.
Some of the more common aerospace applications for PCBs include:
1. Monitoring equipment: Instrumentation, including accelerometers, pressure sensors, microphones, and torque and force sensors All use PCBs as part of their basic functions. These products are used in the engines and cockpits of aircraft and rockets to monitor vehicle functions and communicate with ground control systems.
2. Test Equipment: In addition to its function as an aircraft, PCBs are involved in the development and testing of aircraft. Test equipment that collects data during structural, vibration, and flight testing uses a PCB as its core. This data can be used to develop more efficient, efficient and safer aircraft.
FAQ
| Q: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY? CESGATE: 1. Our products are all original, and we will test the goods before shipment by professional machines like KEYSIGHT E4991A and KEYSIGHT E4980. 2. If The buyer need Test Report, we can send the product to anthoritative institution such as White horse Laboratories(SZ) Limited,Global Electronics Testing,etc. |
| Q: What does CESGATE need for a customized PCB order? CESGATE: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products. |
| Q: Do you have any other services? CESGATE: We mainly focus on the procurement services of PCB + assembly + components. In addition, we can also provide programming, testing, cable, housing assembly services. |
| Q: IS PRODUCT PICTURES AND LABELS AVAILABLE? CESGATE: We will offer after you place an order or before shipment. |
