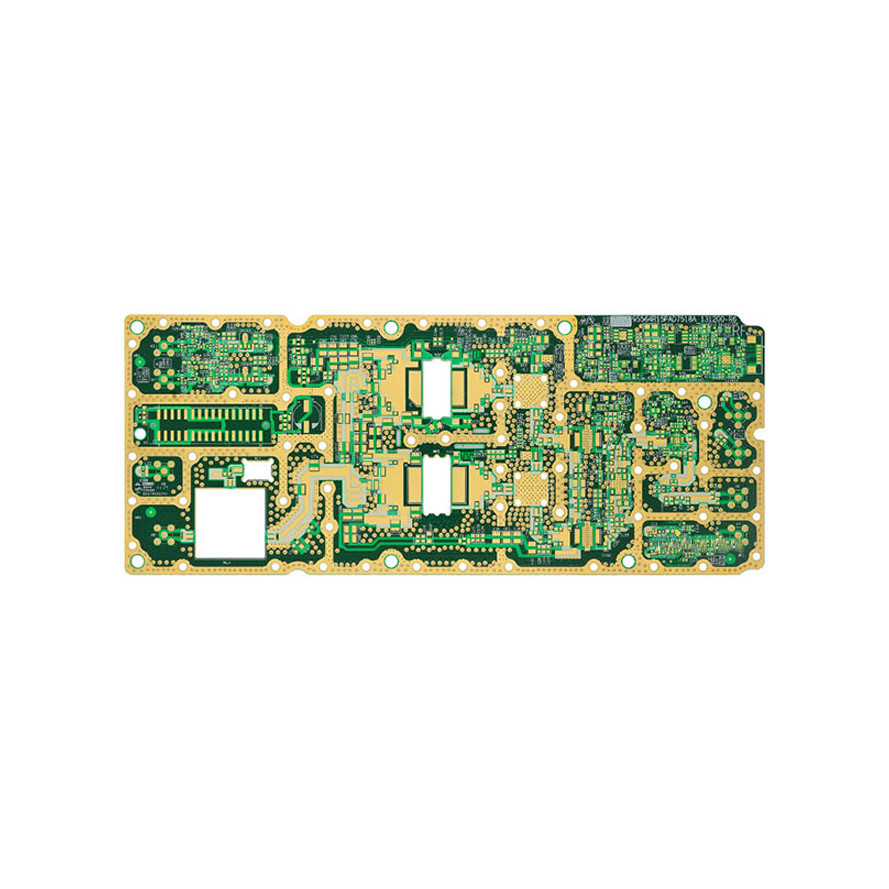

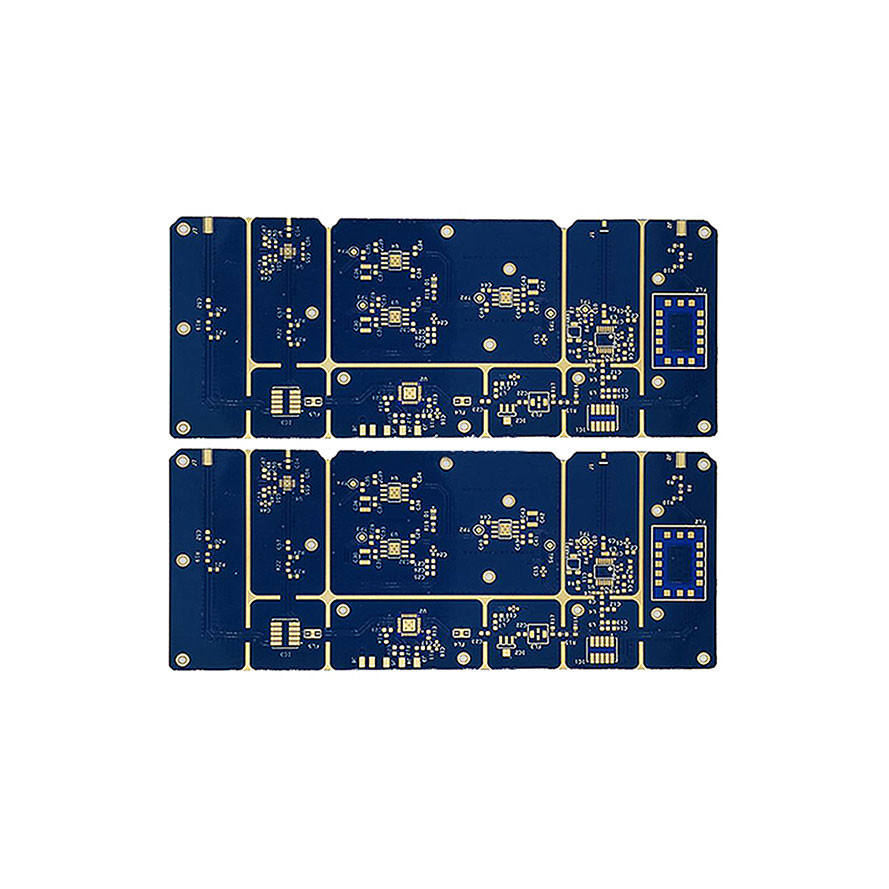

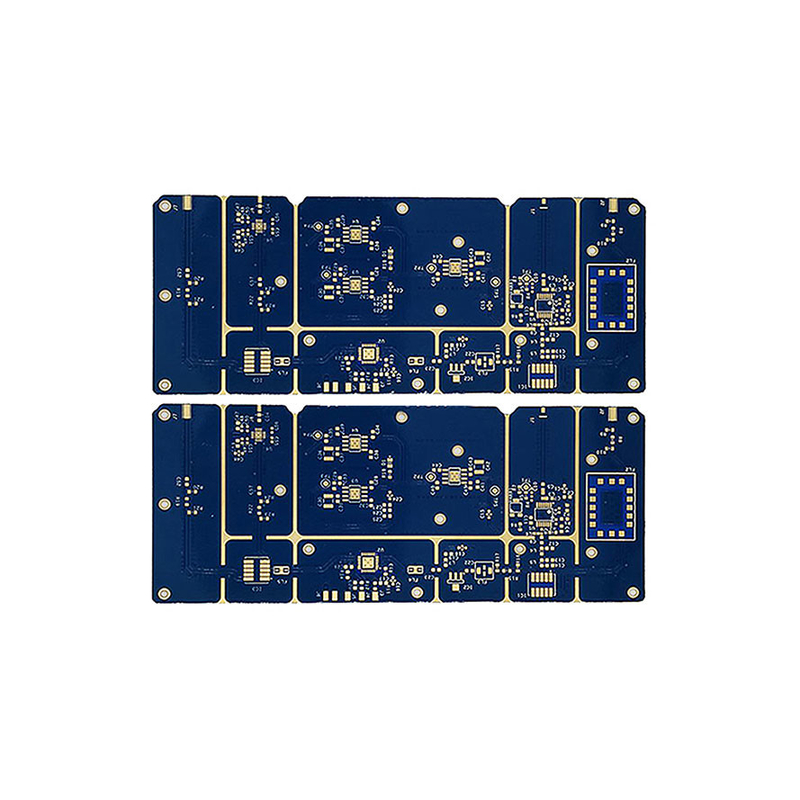

Thickness 0.004'' High Frequency Printed Circuit Board FR4 TG

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: ISO9001/ ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Printed Circuit Board Prototype Fabrication High Frequency PCB Keyboard Build Feature: Keyboard Build
Board Thickness: Single/Double:0.008±0.004” Outer Cu Weight: 0.5-4 0z
Sub-assembly: Plastic,metal,screen Min Trace/gap: 0.075mm Or 3mil
Copper Thickness: 1oz, 1/2OZ 1OZ 2OZ 3OZ, As Your Request, 0.5-3.0 Oz, 1 Oz Base Material: FR4, Aluminum, Rogers, CEM-1, TG
High Light:

Printed Circuit Board FR4 TG

,

0.004'' Printed Circuit Board TG

,

0.004'' high frequency circuit board

Printed Circuit Board Prototype Fabrication High Frequency PCB Keyboard Build





Features of High Frequency PCB


The simple way of understanding High Frequency PCBs is by understanding its features.







Wide range of applications that you can use High Frequency PCBs



Medical Applications


You cannot underestimate the contribution of electronics to the medical fraternity. You will find electronics in diagnostic, monitoring and treatment devices. Even with these applications, there is a constant improvement in electronic applications. At the root of these applications, you will find these High Frequency PCBs.



Their designs allow you to use them in various complex medical devices. Mostly, you will need a small size of a PCB to meet the requirement of a medical device. As such, most of these PCBs are high specialty density interconnect which are also known as HDI PCBs. In some designs, these PCBs can have a flexible base material which allows them to flex during usage. While designing Medical PCBs, considerations need to be on their reliability and durability while adhering to the medical standards available. Among the common medical devices that utilize High frequency PCBs include the following:



They can either be personal or healthcare monitors such as blood glucose monitors, blood pressure monitors, and heart rate monitors.


Scanning technology. Under this, you will find devices for controlling fluid infusion, ultrasound scanners, CT scanner, and an MRI scanner. You will also find X-ray and MRI scanners.


Scientific Instruments. Among the ordinary ones include microscopes, photometers, and control systems which apply to generators and compressors.





PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm
