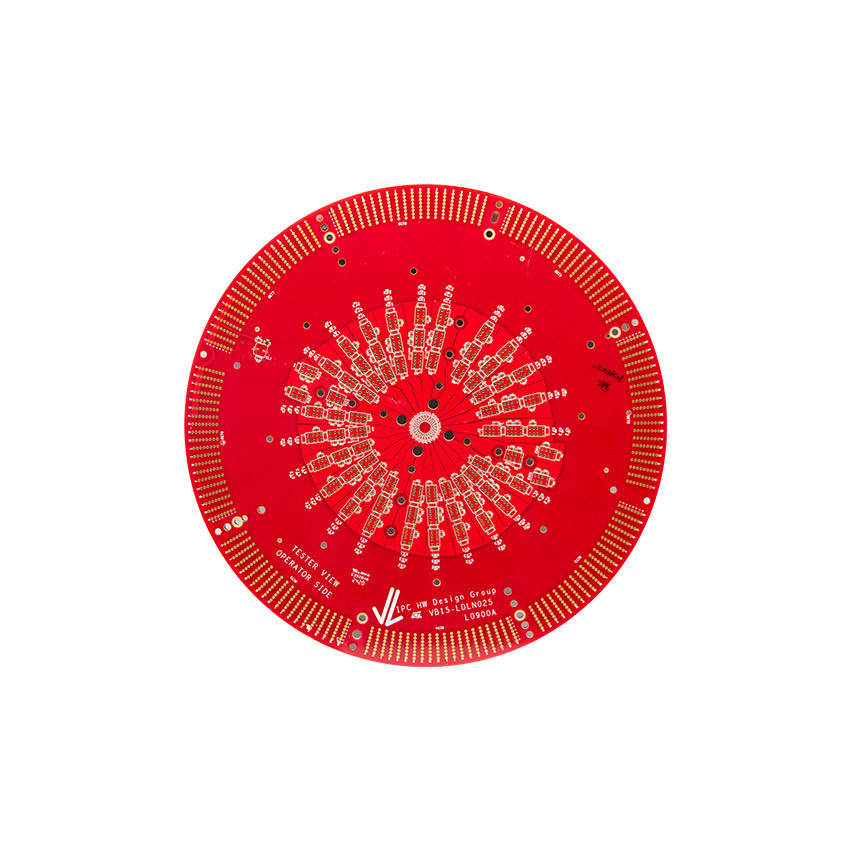

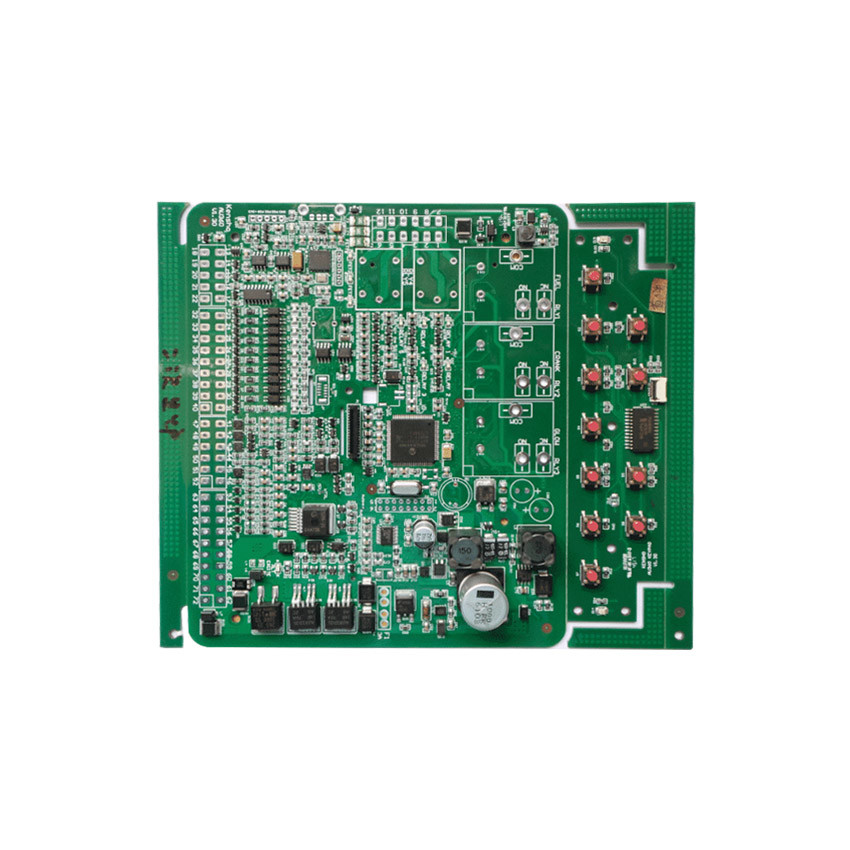

TACONIC Fr4 Printed Quick Turn Circuit Boards Aluminum Base

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL、IATF16949、ISO9001
Model Number: N/A
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Quick Turn Thick Copper HDI FR4 Green Semiconductor PCB Printing Service Feature: Quick Turn
Base Material: FR-4, TACONIC, Aluminum, CEM-3, Metal/ceramic/aluminum Base Type: Semiconductor Tools Systems And Components, Equipment Comp
Solder Mask: Green, White Black Green Blue Red, Green Or Other Color As You Want, Green/blue, Green Black Bule White Application: Electronics Device, Consumer Electronics, Communications, And So On, Universal
Solder Mask Color: Green, Blue, White And Red, White Black Yellow Green Red, Purple Supply Ability: 100000pcs/month
High Light:

FR-4 TACONIC quick turn circuit boards

,

quick turn circuit boards aluminum base

,

FR-4 TACONIC fr4 printed circuit board

Quick Turn Thick Copper HDI FR4 Green Semiconductor PCB Printing Service





Demand for semiconductor PCBs is growing



The work-from-home movement that began during the pandemic continues to grow. Stay-at-home workers are buying more electronics to build out their home offices.
The recovery is beating financial expectations, and people are buying more general electronics than was projected.
The automobile industry rebounded much faster than expected, and carmakers are struggling to get enough electronics to build their products.

.



Finding Solutions to the Semiconductor Supply Chain Problem



The best way to work around the semiconductor shortage is to partner with someone who has a lot of experience working with the component supply chain, like CESGATE. The component engineers and procurement specialists at a semiconductor PCB contract manufacturer have the necessary skill set for this job. They can bring the following assets to the table when the time comes to purchase parts for your next semiconductor PCB build:







CESGATE's advantages





PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Who are we?

TACONIC Fr4 Printed Quick Turn Circuit Boards Aluminum Base 0TACONIC Fr4 Printed Quick Turn Circuit Boards Aluminum Base 1TACONIC Fr4 Printed Quick Turn Circuit Boards Aluminum Base 2TACONIC Fr4 Printed Quick Turn Circuit Boards Aluminum Base 3TACONIC Fr4 Printed Quick Turn Circuit Boards Aluminum Base 4TACONIC Fr4 Printed Quick Turn Circuit Boards Aluminum Base 5TACONIC Fr4 Printed Quick Turn Circuit Boards Aluminum Base 6

FAQ



Q: The Wire Bonding process is required when the circuit board is printed. What should I pay attention to when making the circuit board?
CESGATE: When making circuit boards, the surface treatment options are mostly "nickel palladium gold ENEPIG" or "chemical gold ENIG". If the Al aluminum wire is used, the gold thickness is recommended to be 3μ”~5μ”, but if the Au gold wire is used, the gold thickness should preferably be more than 5μ”.
Q: The lead-free process is required when the circuit board is printed. What should I pay attention to when making the circuit board?
CESGATE: The lead-free process during printing is higher than the temperature resistance requirements of the general process, and the temperature resistance requirements must be above 260 °C. Therefore, it is recommended to use a substrate above TG150 when selecting the substrate material.
Q: Can your company provide the serial number when making circuit board text?
CESGATE: Serial numbers can be provided, and in addition to text serial numbers, QR-CODE can also be provided for customers to query.
Q: How long is the shelf life of the PCB board and how should it be stored?
CESGATE: 25℃ / 60%RH is recommended when the PCB is stored. The plate itself has no shelf life, but if it exceeds three months, it needs to be baked to remove moisture and stress, and it should be used immediately after baking. It is recommended that the pieces should be loaded within 6 months of storage to reduce the phenomenon of rejection and explosion.
