TACONIC Aluminum FR4 Semiconductor PCB Printed Circuit Board XRay Test

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL、IATF16949、ISO9001
Model Number: N/A
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Customized Fabrication Boards Manufactured Semiconductor PCB XRay Test Feature: Xray Test
Base Material: FR-4, TACONIC, Aluminum, CEM-3, Metal/ceramic/aluminum Base Min. Line Spacing: 1.6mm, 0.2-6.0mm, 0.2mm-6.00 Mm(8mil-126mil), 0.5~3.2mm, 1.6 Mm
Solder Mask: Green, White Black Green Blue Red, Green Or Other Color As You Want, Green/blue, Green Black Bule White Application: Electronics Device, Consumer Electronics, Communications, And So On, Universal
Solder Mask Color: Green, Blue, White And Red, White Black Yellow Green Red, Purple Shipping By: DHL, FedEx...
High Light:

Aluminum FR4 Semiconductor PCB

,

TACONIC printed circuit board XRay Test

,

Aluminum FR4 printed circuit board

Customized Fabrication Boards Manufactured Semiconductor PCB XRay Test





What is a Semiconductor PCB?


A semiconductor PCB is a crystalline material that possesses an intermediate electrical conductivity value between that of an insulator and a conductor. These materials have an electrical current resistance that is lower in one direction than the other.

Elemental semiconductors include silicon (Si) and germanium (Ge); however impurities can be intentionally added to create compound semiconductors, thereby altering the conductive properties. This process is known as semiconductor doping.

Silicon is the most common base material of doped or extrinsic semiconductors. Like germanium, silicon possesses 4 valence electrons in its outer orbital shell, which allows it to make strong covalent bonds. This property actually puts silicon more in line with typical insulators due to the low number of electrons available to facilitate conduction, but this can be adjusted through the addition of dopants.



CESGATE's advantages





Semiconductor PCB and Printed Circuit Board (PCB) Manufacturing



CESGATE has become a titan of the semiconductor production market, defining industry standards while increasing market share and combining its long-standing experience with that of major semiconductor component manufacturers. We are a supplier of reliable, high-performance consumables and equipment for all process steps, starting with wafer manufacturing and lithography processes, right up to packaging, assembly, and inspection. Our focus is the production of zero-failure solutions with optimised cost efficiency in the fields of lithography, RTP (rapid thermal processing), cleaning, inspection, and measurement.

Depending on which process you wish to achieve, CESGATE will be happy to call on its unmatched experience across the entire light spectrum to recommend the right ultraviolet (UV), vacuum-ultraviolet (VUV), or infrared (IR) emitter. Click the icons below to explore the semiconductor and printed circuit board (PCB) processes which CESGATE is able to assist you with.





PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm

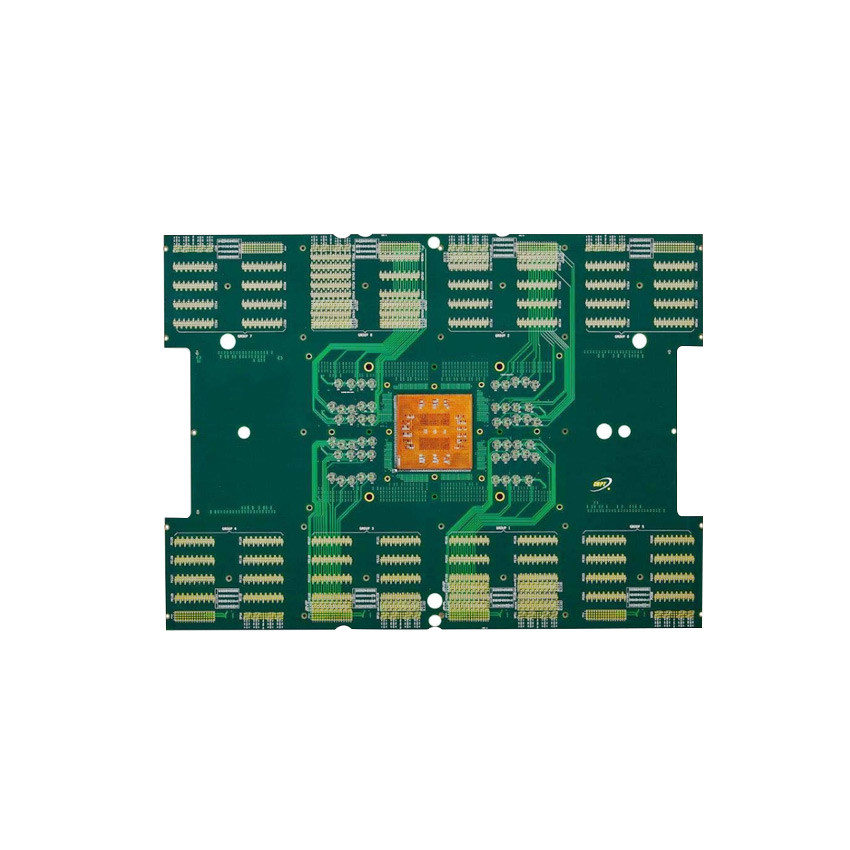

TACONIC Aluminum FR4 Semiconductor PCB Printed Circuit Board XRay Test 0TACONIC Aluminum FR4 Semiconductor PCB Printed Circuit Board XRay Test 1TACONIC Aluminum FR4 Semiconductor PCB Printed Circuit Board XRay Test 2TACONIC Aluminum FR4 Semiconductor PCB Printed Circuit Board XRay Test 3TACONIC Aluminum FR4 Semiconductor PCB Printed Circuit Board XRay Test 4TACONIC Aluminum FR4 Semiconductor PCB Printed Circuit Board XRay Test 5TACONIC Aluminum FR4 Semiconductor PCB Printed Circuit Board XRay Test 6
