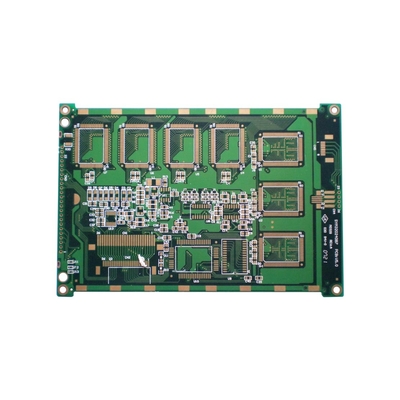

HASL Lead Free Multilayer PCB Assembly IPC-A-600H Class 2

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: ISO9001/ ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Professional Custom Sample Services Multilayer PCB Assembly Service Supplier Feature: Professional Custom Sample Services
Supply Ability: 1000 Unit/Units Per Week Testing Service: 100% AOI Testing/ICT/FCT Test
FR4 Multilayer PCB: Printed Circuit Board HASL Service Type: Customized PCB Assemby
Certificate Standard: IPC-A-600H Class 2, Class 3, TS16949,ROHS Board Thickness: 1.6MM
High Light:

Multilayer PCB Assembly IPC-A-600H Class 2

,

HASL Lead free pcb

,

lead free pcb IPC-A-600H Class 2

Professional Custom Sample Services Multilayer PCB Assembly Service Supplier





Brief Introduction to our PCBs



What is a Printed Circuit Board (PCB)

Printed circuit board, also known as printed circuit board, printed circuit board, often used in English abbreviations are multilayer PCB (Printed circuit board) or PWB (Printed wire board). Multilayer PCB is the base plate used to assemble electronic components, and it is also the "mother of electronic products". It is a very important electronic component and a support for electronic components. Mainly through the metal copper foil circuits on the board, through the design of each layer to connect and conduct related components, to achieve a complete product that operates effectively.

Before the early multilayer PCB appeared, the various components of electronic products were connected by wires to form a complete path. Later, in order to simplify the manufacturing process of electronic products and reduce the cost, the circuit was developed by printing, and the copper foil on the substrate was used to replace the original wire connection, thereby improving the production efficiency.The various components are mainly connected through the metal copper foil circuits on the board. By designing each layer to connect and conduct related components, a complete product that operates effectively is achieved.The traditional circuit board construction method uses printed resists to make circuit lines and drawings, so it is called printed circuit board. Because the size of electronic products continues to be miniaturized and refined, most circuit boards are currently covered with etching resists (wet film or dry film), which are exposed and developed and then etched to remove unwanted copper foil to make circuit boards.





PCB Capabilities

NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Company Introduction



Chengdu Cesgate Technology Co.,Ltd was found in Chengdu, China.The company is strong and professional technical, with perfect quality assurance system and advances test-analyzed instrument. CESGATE is one of the Professional PCB manufacturer from China. We have professional PCB designer for your PCB layout requirement. We design single, double, and multi layers , Rigid, flexible, Flex-Rigid printed circuit boards, and PCB assembly.CESGATE with customers to provide them with the highest-quality PCB and PCBA electronic manufacturing services to achieve their goals. Our flexibility is in meeting customer requirements and our superior customer service. We help companies introduce their new products to market in the fastest time possible by providing high quality, quick-turn assembly.We provide one-stop electronic manufacturing service to help you qualify your designs and provide quality samples to your customers.
