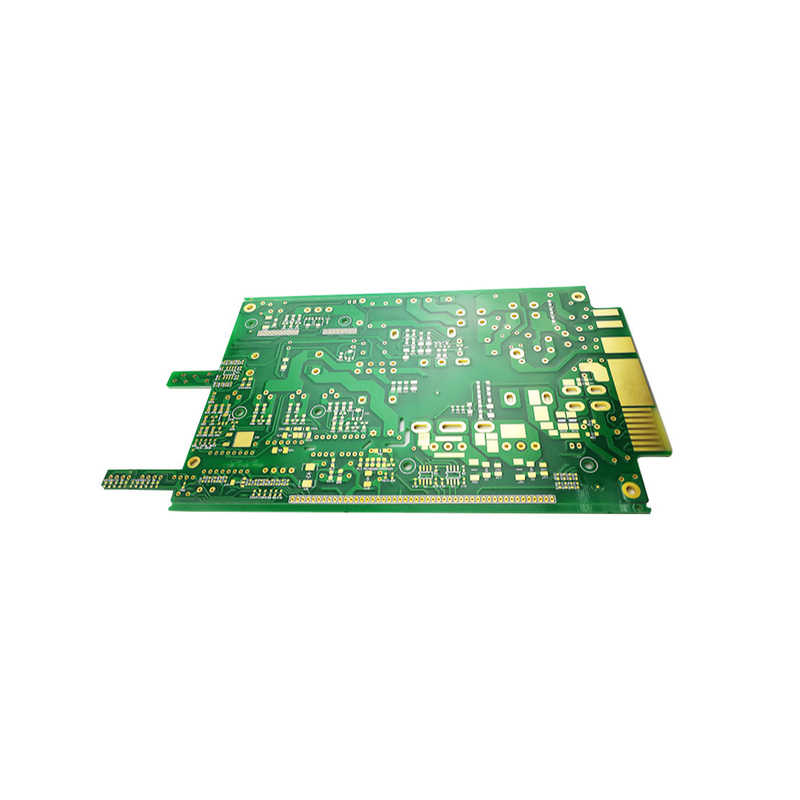

Copper 1OZ 2OZ HDI Printed Multi Circuit Boards HASL Lead Free

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: ISO9001/ ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Custom Service Type Control HDI SMT Multilayer PCB For Industrial Control Panel Feature: Custom Service Type Control
Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ Surface Finishing: HASL Lead Free
Base Material: Fr-4, FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers
High Light:

HDI printed circuit boards HASL lead free

,

Copper 1OZ 2OZ HDI printed circuit boards

,

multi circuit boards HASL lead free

Custom Service Type Control HDI SMT Multilayer PCB For Industrial Control Panel



Company Introduction



Chengdu Cesgate Technology Co.,Ltd was found in Chengdu, China.The company is strong and professional technical, with perfect quality assurance system and advances test-analyzed instrument. CESGATE is one of the Professional PCB manufacturer from China. We have professional multilayer PCB designer for your PCB layout requirement. We design single, double, and multi layers , Rigid, flexible, Flex-Rigid printed circuit boards, and multilayer PCB assembly.CESGATE with customers to provide them with the highest-quality PCB and PCBA electronic manufacturing services to achieve their goals. Our flexibility is in meeting customer requirements and our superior customer service. We help companies introduce their new products to market in the fastest time possible by providing high quality, quick-turn assembly.We provide one-stop electronic manufacturing service to help you qualify your designs and provide quality samples to your customers.



Consumer Electronics Industry



 Consumer electronics are devices we use every day, such as smartphones or computers. Even the latest model refrigerators often contain electronic components. Each of these devices is a PCB.Since these consumer electronics products are manufactured in high volumes, the number of PCBs that control them must be equal. These high-volume multilayer PCBs have lower unit costs, making the price of the final product relatively small. The challenge is to maintain the uniformity and quality of these multilayer PCBs, which is why PCB manufacturers must adhere to strict industry standards and quality control measures to ensure that each consumer's electronics function as expected.

1. Recording Devices: Camcorders, digital cameras, microphones, and other recording devices all rely on their internal PCBs to function.
2. Entertainment System: Everything in a home entertainment system, from DVD players and video game consoles to TVs and audio equipment.
3. Home Appliances: Almost all modern appliances run using electronic components: alarm clocks, microwaves, refrigerators, coffee makers, etc.



PCB Capabilities

NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm
