Place of Origin: | China |
---|---|
Brand Name: | Cesgate |
Certification: | UL, IATF16949, ISO9001, ISO14001 |
Model Number: | NA |
Minimum Order Quantity: | 1PCS( NO MOQ) |
Price: | $1.00 |
Packaging Details: | PCB: Vacuum Packing / PCBA: ESD + vacuum Packing |
Delivery Time: | 3-7 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 13kk soldering spot/day |
Material: | FR4, FR4 High TG, Rogers, Etc. | Certificate: | UL, RoHS, ISO9001, ISO14001 |
---|---|---|---|
Size: | Standard | Warranty: | 1 Year |
Layer: | 2-68 Layers | Blind/Buried Vias: | Yes |
Impedance Control: | Yes | Min. Package: | 03015/01005/0201 |
PCBA is the abbreviation of the English Printed Circuit Board Assembly, that is to say, the PCB empty board through the SMT on the piece, or through the DIP plug-in of the entire process, referred to as PCBA.
Parameter | Value |
---|---|
PCB Assembly | Main PCB Assembly |
BGA Rework | Yes |
Material | FR4, FR4 High TG, Rogers, Etc. |
Layer | 2-68 Layers |
Blind/Buried Vias | Yes |
Size | Standard |
Warranty | 1 Year |
Gold Finger | Yes |
Certificate | UL, RoHS, ISO9001, ISO14001 |
X-Ray inspection | 2D X-Ray, 3D X-Ray |
SMT line | 4 |
The design of the printed circuit board is based on the electronic circuit diagram to achieve the functions required by the circuit user. The design of printed circuit boards mainly refers to layout design, which requires various factors such as internal electronic components, metal wiring, through hole and external connection layout, electromagnetic protection, heat dissipation, crosstalk and so on. Excellent circuit design can save production costs and achieve good circuit performance and heat dissipation performance. Simple layout design can be realized by hand, but complex circuit design generally also needs to be realized by computer-aided design (CAD), and the famous design software is Protel, OrCAD, PowerPCB, FreePCB and so on.

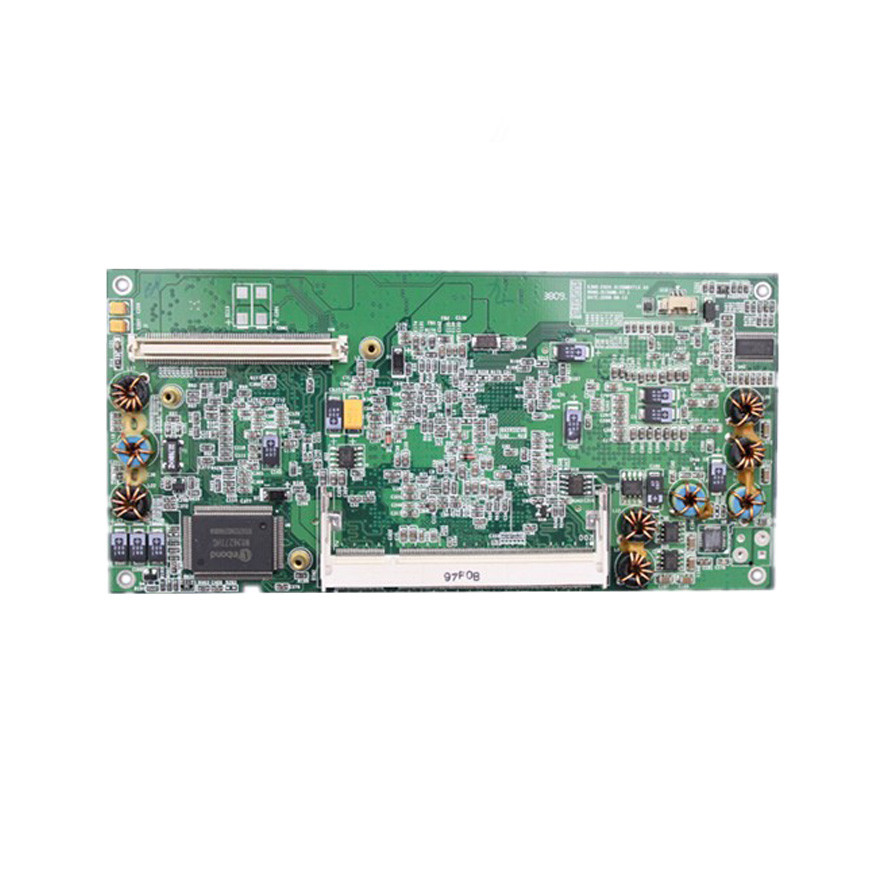

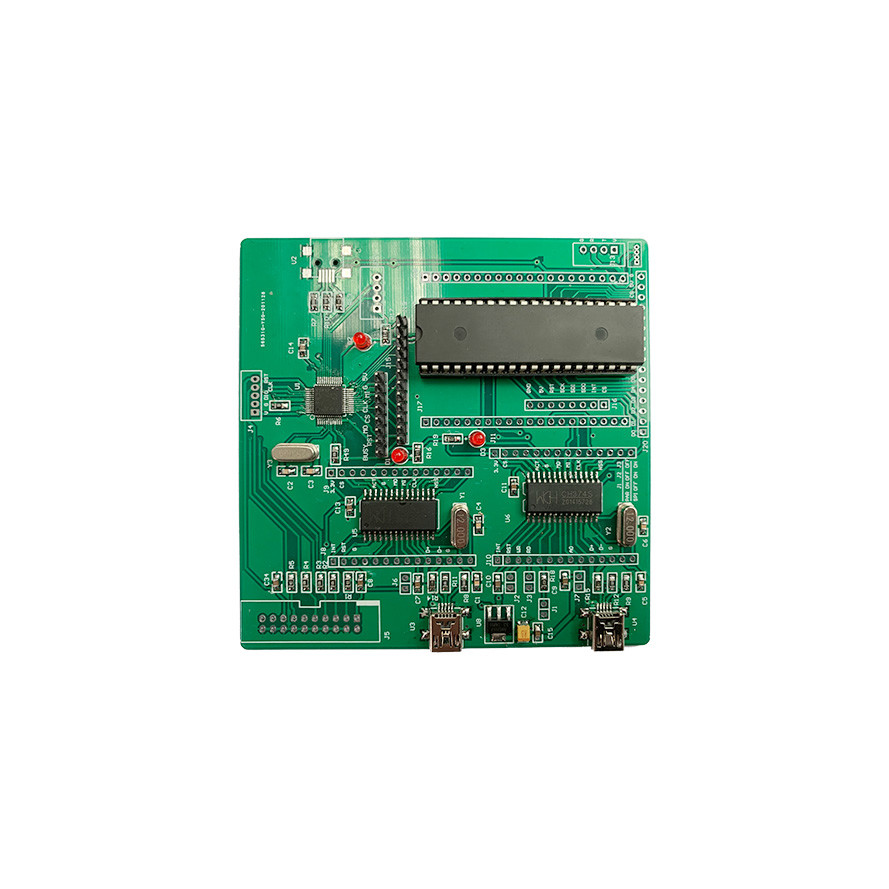

Main PCBA is a Motherboard Printed Circuit Board Assembly, also known as Main Printed Circuit Board Assembly, which is made from high quality materials and has passed UL, IATF16949, ISO9001, ISO14001 certifications. It has standard size and can support Blind/Buried Vias, Gold Finger and X-Ray inspection. No MOQ, 1 year warranty. Price is $1.00, vacuum packing for PCB, ESD + vacuum Packing for PCBA. Delivery time is 3-7 working days, Supply Ability is 13kk soldering spot/day, payment term is T/T, L/C.
Main PCBA products need to be packaged and shipped in a secure manner to ensure that they arrive in perfect condition and are ready to be used. Here are some recommendations for packaging and shipping Main PCBA products:
