|Place of Origin:||China|
|Certification:||UL, IATF16949, ISO9001|
|Minimum Order Quantity:||1PCS( NO MOQ)|
|Price:||Negotiable (Depends on your GERBER and BOM)|
|Packaging Details:||PCB: Vacuum Packing / PCBA: ESD Packing|
|Delivery Time:||3-7 working days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||13kk soldering spot/day|
|Product Name:||SMT Electronics Multilayer Printed Circuit Board Main PCBA One-Stop Oem||Feature:||SMT/PCBA|
|High-end Equipment:||FUJI NXT3/XPF Laminator||Material:||FR4/M4/M6/Rogers/TU872/IT968|
|Lead Time:||3-7 Working Days||Test:||AOI/SPI/XRAY/First Article Inspection|
|Warrant:||3 Months||Board Thickness:||0.2mm-6.5mm|
PCBA electronics One Stop OEM,
HASL lead free electronics pcb assembly,
electronics pcb assembly One Stop OEM

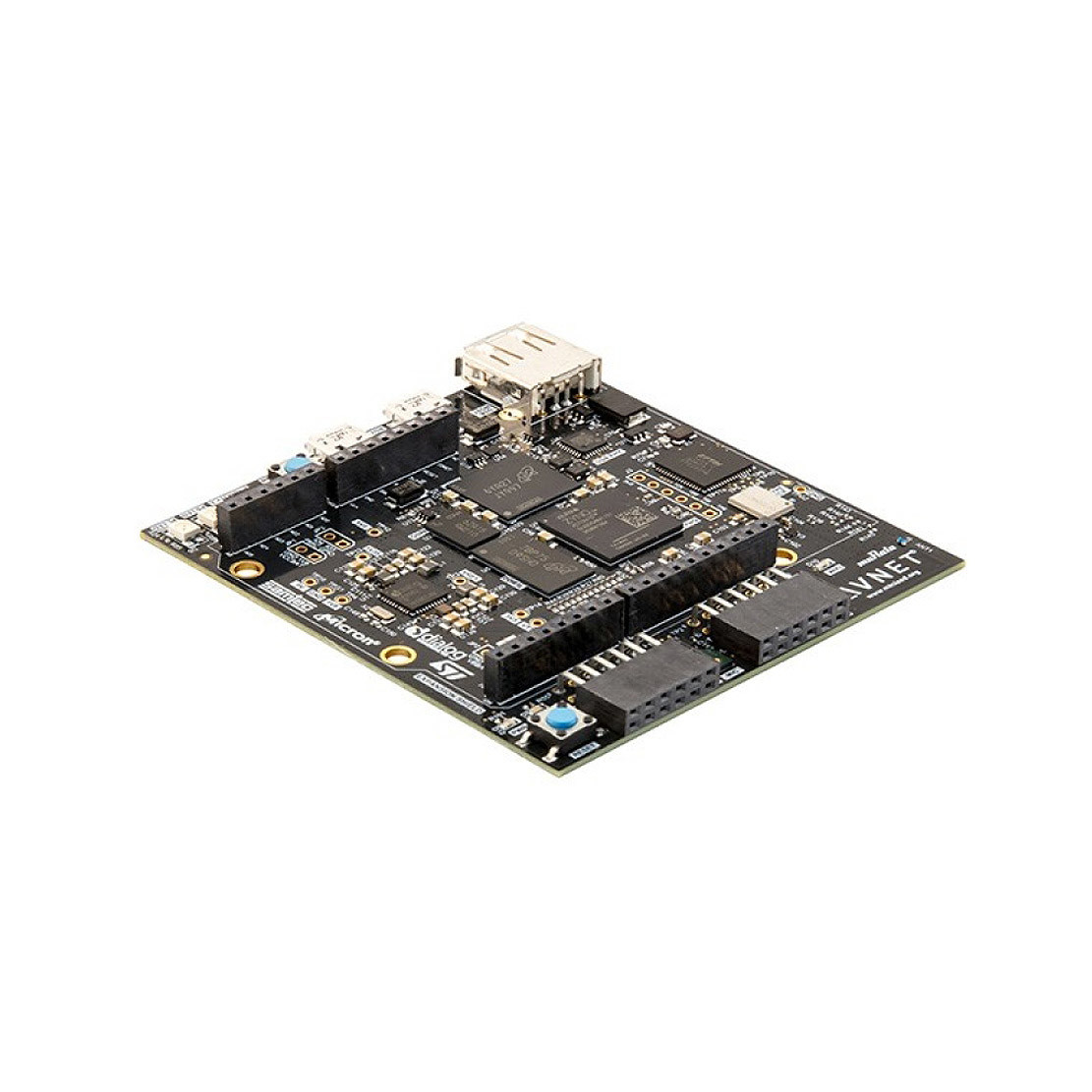

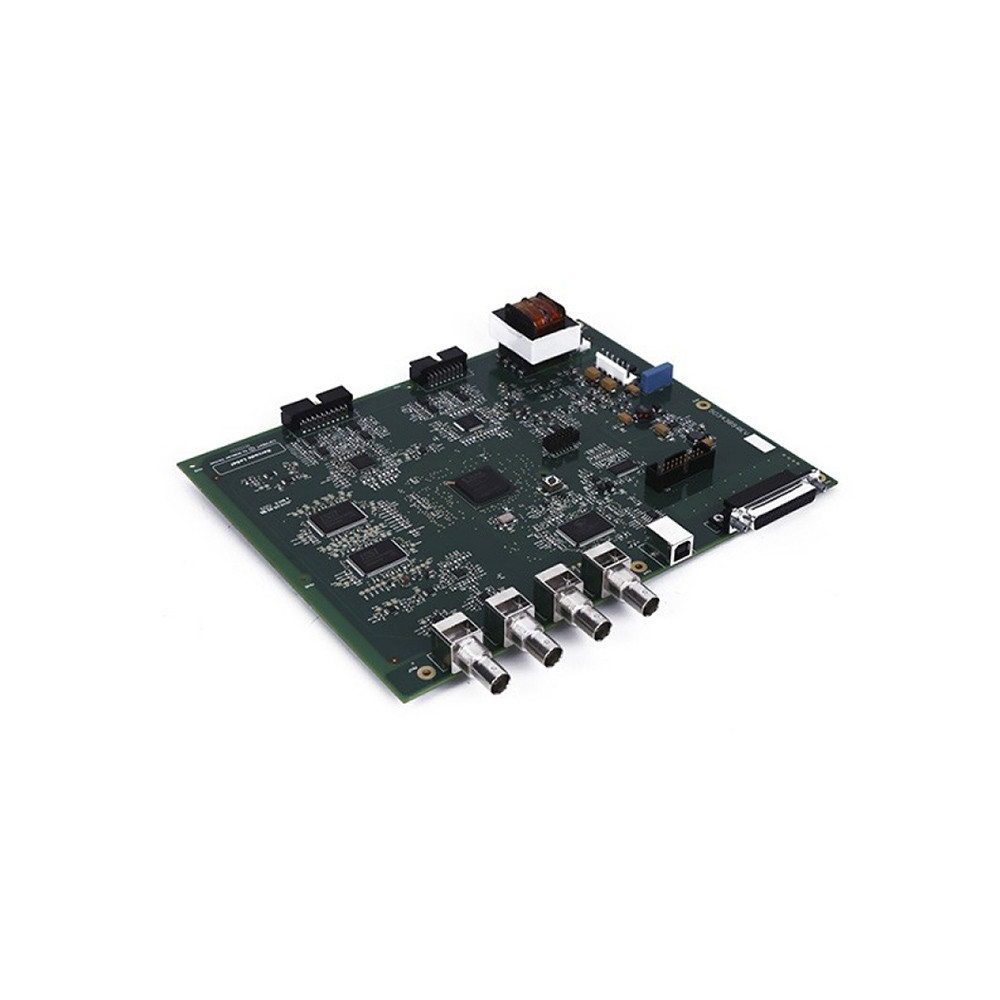

SMT Electronics Multilayer Printed Circuit Board Main PCBA One-Stop Oem
Services CESGATE Provided
|2||Maximum machining size||600mm*1200mm|
|6||Minimum finished aperture||0. 10mm|
|7||Maximum thickness to diameter ratio||15:1|
|8||Via treatment||Via, blind&buried via, via in pad, Copper in via …|
|9||Surface finish/treatment||HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating|
|10||Base Material||FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
|11||Solder mask color||Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black|
|12||Testing Service||AOI, X-Ray, Flying-Probe, Function Test, First Article Tester|
|16||Min mechanical aperture||0.1mm|
|17||Min laser aperture||0.075mm|
In business since 2010, CESGATE mainly provides pcb fabrication and Main PCBA design service for customers from all over the world. We have ISO and UL certificate, and honored as HI-TECH enterprise by Chengdu goverment. We CESGATE always take it as our mission by "Priority Customer, Effective Service", and we insist in this management principle of "Development promote Management, Management benefit Efficiency". All of our employee keep firmly in mind with "High Quality ask for survival, High echnology ask for development ". We will strive to achieve our strategic objective: Professional Management, Large-scale Industry, International Market.
|Q: Why choose us?
CESGATE: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow.
Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition.
|Q: How long does it take for PCB quote?
CESGATE: Normally 12 hours to 48 hours as soon as receive internal engineer evaluate confirmation.
|Q: The Wire Bonding process is required when the circuit board is printed. What should I pay attention to when making the circuit board?
CESGATE: When making circuit boards, the surface treatment options are mostly "nickel palladium gold ENEPIG" or "chemical gold ENIG". If the Al aluminum wire is used, the gold thickness is recommended to be 3μ”～5μ”, but if the Au gold wire is used, the gold thickness should preferably be more than 5μ”.
|Q: The lead-free process is required when the circuit board is printed. What should I pay attention to when making the circuit board?
CESGATE: The lead-free process during printing is higher than the temperature resistance requirements of the general process, and the temperature resistance requirements must be above 260 °C. Therefore, it is recommended to use a substrate above TG150 when selecting the substrate material.
|Q: Can your company provide the serial number when making circuit board text?
CESGATE: Serial numbers can be provided, and in addition to text serial numbers, QR-CODE can also be provided for customers to query.
|Q: How long is the shelf life of the PCB board and how should it be stored?
CESGATE: 25℃ / 60%RH is recommended when the PCB is stored. The plate itself has no shelf life, but if it exceeds three months, it needs to be baked to remove moisture and stress, and it should be used immediately after baking. It is recommended that the pieces should be loaded within 6 months of storage to reduce the phenomenon of rejection and explosion.
