| Place of Origin: | China |
|---|---|
| Brand Name: | CESGATE |
| Certification: | ISO9001/ ISO14001 |
| Model Number: | NA |
| Minimum Order Quantity: | 1PCS( NO MOQ) |
| Price: | Negotiable (Depends on your GERBER and BOM) |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Delivery Time: | 1-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000pcs/month |
| Product Name: | High TG FR4 PCB Prototype Service Iso9001 Quick Turn Printed Circuit Board | Feature: | High TG FR4 |
|---|---|---|---|
| Pad(ring): | Min Pad Size For Laser Drillings, Min Pad Size For Mechanical Drillings, Min BGA Pad Size, Pad Size Tolerance | Min. Line Spacing: | 4mil, 0.003", 0.1mm4mil), 0.1mm, 4/4mil(0.1/0.1mm) |
| Min. Line Width: | 4mil, 0.1mm, 0.1mm/4mi, 0.075mm/0.075mm(3mil/3mil), 3mi | Wave-Solder: | Min.PCB Width:unlimited |
| Surface Treatment: | Hasl, Lead Free Hasl, Immersion Gold, Immersion Tin, Immersion Silver, Hard Gold, Flash Gold, OSP... | Contact Plating: | Au Or Sn Over Ni |
| High Light: | Iso9001 Printed Circuit Board,High TG FR4 PCB Prototype,Quick Turn Printed Circuit Board |
||

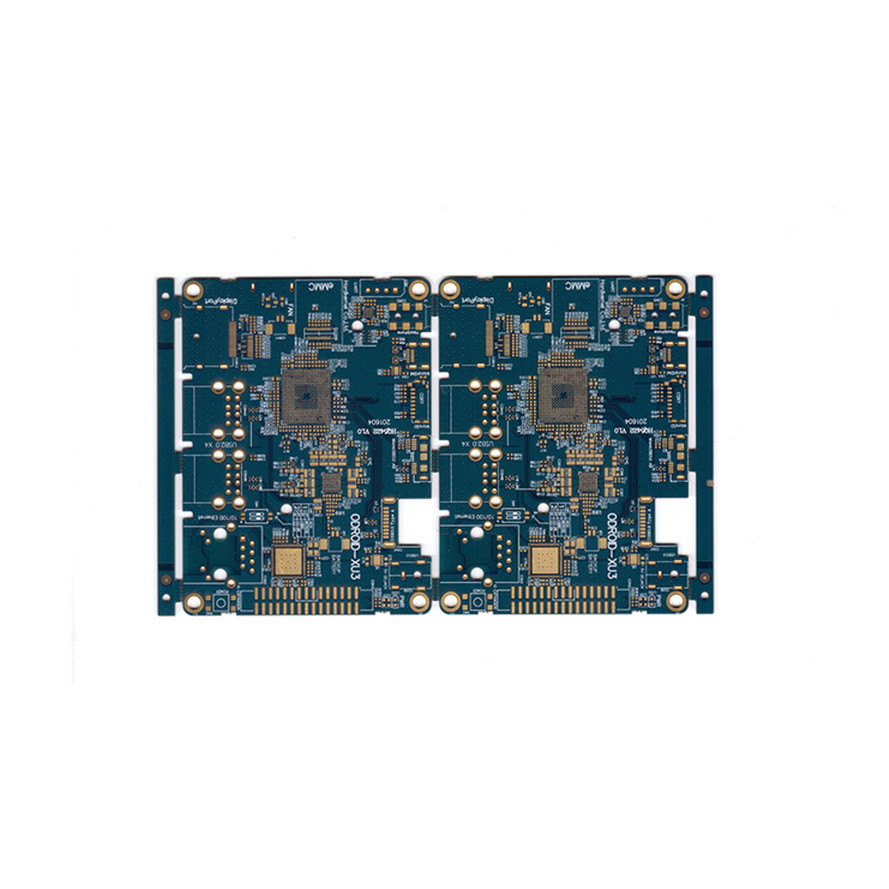

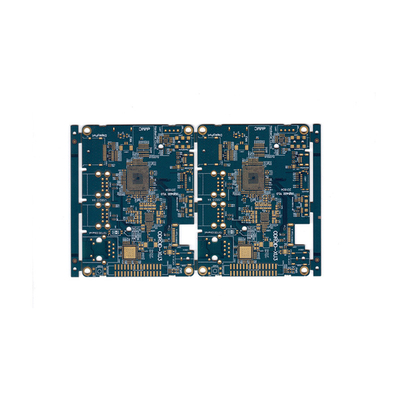

High TG FR4 PCB Prototype Service Iso9001 Quick Turn Printed Circuit Board
SMT Assembly Quality Control
Features of PCB ASSEMBLY:
PCB assembly is the abbreviation of Printed Circuit Board Assembly, which means that PCB prototype service is loaded by SMT from the PCB empty board, and then goes through the whole process of DIP plug-in. Note: Both SMT and DIP are ways of integrating parts on a PCB. The main difference is that SMT does not require drilling holes in the PCB. In DIP, the PIN pins of the part need to be inserted into the already drilled holes. SMT (Surface Mounted Technology) surface mount technology mainly uses a placement machine to mount some tiny parts on a PCB. The production process is: PCB board positioning, solder paste printing, placement machine installation, reflow oven and finished product inspection. DIP means "plug-in", that is, inserting parts on the PCB board. This is to integrate parts in the form of plug-ins when some parts are larger in size and not suitable for placement technology. The main production processes are: glue, plug-in, inspection, wave soldering, printing, finished product inspection.
PCB Prototype Service Capacities and Technical Specification
| NO. | Items | Capabilities |
| 1 | Layers | 2-68L |
| 2 | Maximum machining size | 600mm*1200mm |
| 3 | Board thickness | 0.2mm-6.5mm |
| 4 | Copper thickness | 0.5oz-28oz |
| 5 | Min trace/space | 2.0mil/2.0mil |
| 6 | Minimum finished aperture | 0. 10mm |
| 7 | Maximum thickness to diameter ratio | 15:1 |
| 8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
| 9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| 11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
| 12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| 13 | Profiling Punching | Routing,V-CUT,Beveling |
| 14 | Bow&twist | ≤0.5% |
| 15 | HDI type | 1+n+1,2+n+2,3+n+3 |
| 16 | Min mechanical aperture | 0.1mm |
| 17 | Min laser aperture | 0.075mm |
Why choose CESGATE?
CESGATE has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including PCB Prototype Service, assembly, components sourcing and function testing.With one-stop solution, high-end product structure, professional product development and manufacturing technology, stable quality performance and well management system,CESGATE has established long-term and stable cooperate relations with the world's leading communication equipment , aerospace electronics and medical equipment manufacturers.Chengdu Cesgate Technology Co., Ltd. is located in Chengdu High-tech Zone, Sichuan, China, with a standardized modern industrial plant of about 4,000 square meters. The company is a leading electronic manufacturing service provider in Chengdu. The factory has passed the ISO9001 quality management system certification and ISO14001 environmental protection system certification issued by SGS. Since its establishment, the company has adhered to the business philosophy of "professional quality, continuous innovation, and high-quality service".
FAQ
| Q: What does CESGATE need for a customized PCB order? CESGATE: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products. |
| Q: What is your inspection policy? How do you control the quality? CESGATE: In order to ensure the quality of PCB products, flying probe inspection is usually used; electrical fixtures, automatic optical inspection (AOI), BGA parts x-ray inspection, first article inspection ( FAI) etc. |
| Q: Can we inspect quality during production? CESGATE: Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house. |
| Q: Why choose us? CESGATE: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow. Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition |
| Q: What is the difference between the HDI board and the general circuit board? CESGATE: Most of HDI use laser to form holes, while general circuit boards only use mechanical drilling, and HDI boards are manufactured by the build-up method (Build Up), so more layers will be added, while general circuit boards are only added once. |
