OEM ODM PCB Prototype Service Electronic Control Board 0.1mm 4mi

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: ISO9001/ ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Features: Prototype/ODM Product Name: OEM And ODM Electronic Control Board PCB Prototype Service Customized Packaging
Material: Stainless Steel, Aluminum, Plastic, Brass, Copper Etc Optional Service: 3 4 5 6 Axis CNC Machining Service
Min. Line Spacing: 4mil, 0.003", 0.1mm4mil), 0.1mm, 4/4mil(0.1/0.1mm) Min. Line Width: 4mil, 0.1mm, 0.1mm/4mi, 0.075mm/0.075mm(3mil/3mil), 3mi
Min. Hole Size: 0.2mm, 8 Mil, 0.10mm, 3mil (0.075mm), 0.004" MOQ: Small Orders Accepted
High Light:

OEM ODM Electronic Control Board

,

OEM ODM PCB Prototype Service

,

Electronic Control Board 0.1mm 4mi

OEM And ODM Electronic Control Board PCB Prototype Service Customized Packaging





Advantages of CESGATE



1. As a one-stop service shop, satisfied services will start from your inquiry to after-sales.
2. Free design stack-up service, modify until you are satisfied.
3. Each process is monitored by specialized quality inspection personnel to detect problems in time and solve them as soon as possible.
4. Expedited service is supported.

5. More than ten years of PCB Prototype Service experience.





SMT Lines



Our company currently has 7 wave soldering production lines and 10 post-DIP soldering lines. We can make special fixtures according to customer requirements and product conditions to ensure product reliability and effectively improve plug-in efficiency. Our DIP post-welding personnel have rich experience for PCB assembly service, and have formulated detailed standardized operation guidelines and SOP operation instructions to meet the high-quality requirements of high-end customers.





PCB Prototype Service Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm


Company Descripiton



CESGATE has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including PCB manufacture, PCB prototype service, components sourcing and function testing. With one-stop solution, high-end product structure, professional product development and manufacturing technology, stable quality performance and well management system. CESGATE has established long-term and stable cooperate relations with the world's leading communication equipment, aerospace electronics and medical equipment manufacturers. We can provide professional and reliable PCB prototype services.

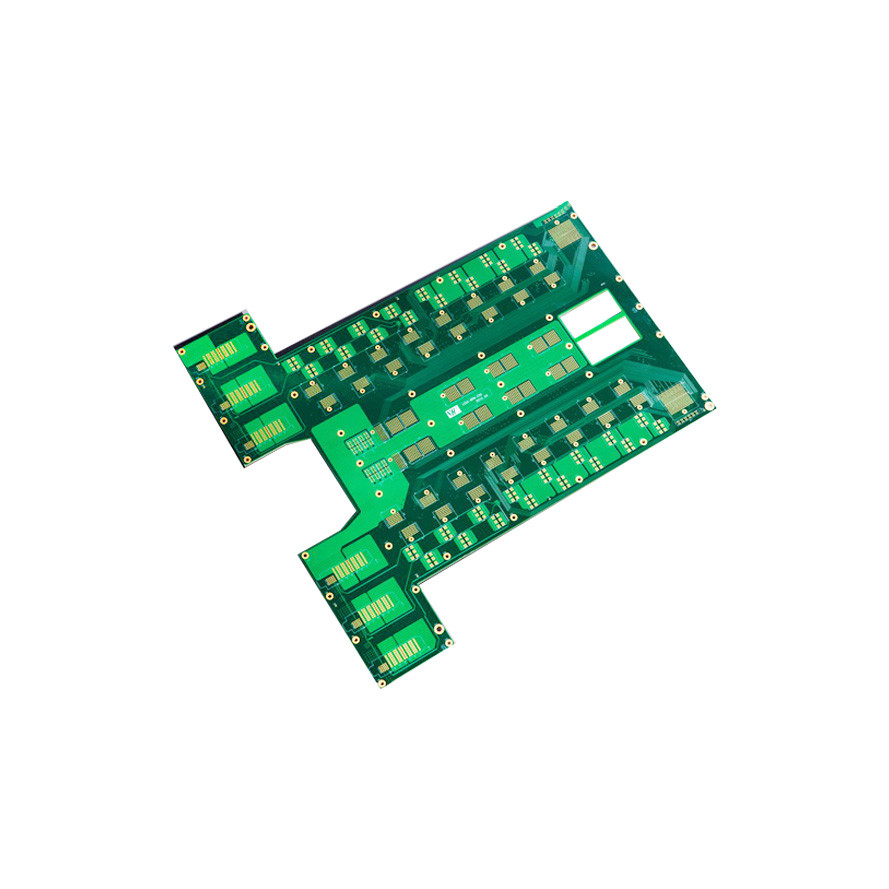

OEM ODM PCB Prototype Service Electronic Control Board 0.1mm 4mi 0OEM ODM PCB Prototype Service Electronic Control Board 0.1mm 4mi 1OEM ODM PCB Prototype Service Electronic Control Board 0.1mm 4mi 2OEM ODM PCB Prototype Service Electronic Control Board 0.1mm 4mi 3

OEM ODM PCB Prototype Service Electronic Control Board 0.1mm 4mi 4OEM ODM PCB Prototype Service Electronic Control Board 0.1mm 4mi 5

OEM ODM PCB Prototype Service Electronic Control Board 0.1mm 4mi 6



FAQ



Q: What is your delivery date?
CESGATE: The general sample delivery time is 6 working days for single and double-sided boards, 7 working days for 4-layer boards, and an additional working day for every 2 layers. However, if there are special processes, additional working days will be added according to the situation.
Generally, the delivery time for mass production is 10 working days for single and double-sided panels, and 15 working days for multi-layer panels. However, if there is a special process or more than a certain number of working days, the working days will be additionally increased according to the situation; you can also pay the urgent fee to shorten the number of days, please contact Contact the business specially proposed, depending on the individual situation to provide expedited days.
Q: What is the difference between the HDI board and the general circuit board?
CESGATE: Most of HDI use laser to form holes, while general circuit boards only use mechanical drilling, and HDI boards are manufactured by the build-up method (Build Up), so more layers will be added, while general circuit boards are only added once.
Q: What are the types of solder mask?
CESGATE: There are traditional epoxy resin IR baking type, UV curing type, Liquid Photo Imageable Solder Mask and Dry film solder mask. Currently, the liquid solder mask is the main type.

Q: What are the common substrates of CESGATE?
CESGATE:

Tg-140: ISOLA FR402 / NAN-YA NP-140
Tg-150: ISOLA IS400 / NAN-YA NP-155
Tg-170~180: ISOLA 370HR / NPN-YA / NAN-YA NP-175F
