| Product Name: | OEM And ODM Soldering Manufacturer PCB Prototype Service ENIG Fabrication | Buildings: | OEM And ODM |
|---|---|---|---|
| Minimum Line Width: | 3 Mil | Minimum Spacing: | 4 Mil |
| Minimum Aperture: | 0.2mm | Maximum Board Thickness: | 6mm |
| Type: | Rapid Prototyping,Laser Machining,Milling,Broaching,Etching / Chemical Machining | Micro Machining Or Not: | Micro Machining |
| High Light: | ENIG Fabrication PCB Prototype Service,ODM Soldering PCB Prototype Service,Rapid Prototyping Pcb Manufacturer |
||

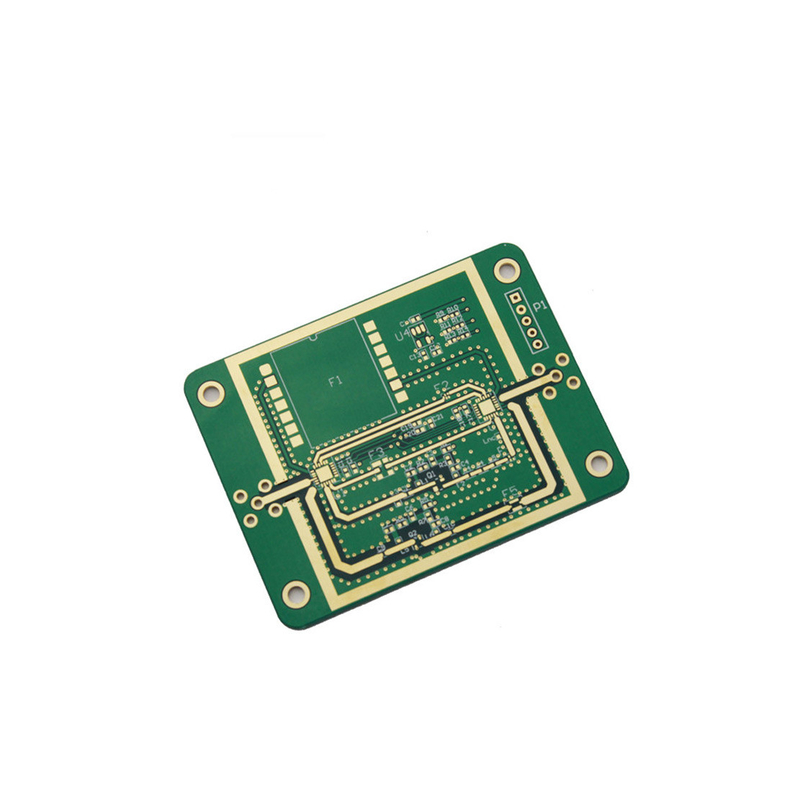

OEM and ODM Soldering Manufacturer PCB Prototype Service ENIG Fabrication
What is a Printed Circuit Board (PCB prototype service)
Printed circuit board, also known as printed circuit board, printed circuit board, often used in English abbreviations are PCB Prototype Service (Printed circuit board) or PWB (Printed wire board). PCB Prototype Serviceis the base plate used to assemble electronic components, and it is also the "mother of electronic products". It is a very important electronic component and a support for electronic components. Mainly through the metal copper foil circuits on the board, through the design of each layer to connect and conduct related components, to achieve a complete product that operates effectively.
Before the early PCB Prototype Service appeared, the various components of electronic products were connected by wires to form a complete path. Later, in order to simplify the manufacturing process of electronic products and reduce the cost, the circuit was developed by printing, and the copper foil on the substrate was used to replace the original wire connection, thereby improving the production efficiency.
The various components are mainly connected through the metal copper foil circuits on the board. By designing each layer to connect and conduct related components, a complete product that operates effectively is achieved.
The traditional circuit board construction method uses printed resists to make circuit lines and drawings, so it is called printed circuit board. Because the size of electronic products continues to be miniaturized and refined, most circuit boards are currently covered with etching resists (wet film or dry film), which are exposed and developed and then etched to remove unwanted copper foil to make circuit boards.
Application advantages of multilayer circuit boards:
1. High assembly density, small size and light weight, meeting the needs of lightweight and miniaturization of electronic equipment;
2. Due to the high assembly density, the wiring between components (including components) is reduced, the installation is simple, and the reliability is high;
3. Due to the repeatability and consistency of the graphics, wiring and assembly errors are reduced, and equipment maintenance, debugging and inspection time are saved;
4. The number of wiring layers can be increased, thereby increasing design flexibility;
5. It can form a circuit with a certain impedance, and can form a high-speed transmission circuit;
6. The circuit and magnetic circuit shielding layer can be set, and the metal core heat dissipation layer can also be set to meet the needs of special functions such as shielding and heat dissipation.
PCB Prototype Service Capacities and Technical Specification
| NO. | Items | Capabilities |
| 1 | Layers | 2-68L |
| 2 | Maximum machining size | 600mm*1200mm |
| 3 | Board thickness | 0.2mm-6.5mm |
| 4 | Copper thickness | 0.5oz-28oz |
| 5 | Min trace/space | 2.0mil/2.0mil |
| 6 | Minimum finished aperture | 0. 10mm |
| 7 | Maximum thickness to diameter ratio | 15:1 |
| 8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
| 9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| 11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
| 12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| 13 | Profiling Punching | Routing,V-CUT,Beveling |
| 14 | Bow&twist | ≤0.5% |
| 15 | HDI type | 1+n+1,2+n+2,3+n+3 |
| 16 | Min mechanical aperture | 0.1mm |
| 17 | Min laser aperture | 0.075mm |
