| Place of Origin: | China |
|---|---|
| Brand Name: | CESGATE |
| Certification: | UL, IATF16949, ISO9001 |
| Model Number: | NA |
| Minimum Order Quantity: | 1PCS( NO MOQ) |
| Price: | Negotiable (Depends on your GERBER and BOM) |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 13kk soldering spot/day |
| Product Name: | Customized Semiconductor Tester Board PCB Assembly Service Manufacturing Solution | Feature: | Semiconductor |
|---|---|---|---|
| Min Package: | 01005 | Profiling Punching: | Routing/V-CUT/Beveling |
| High-end Equipment: | FUJI NXT3/XPF Laminator | Minimum Finished Aperture: | 0. 10mm |
| Test: | AOI/ X-Ray/Flying-Probe/Function Test | Other Service: | Components Purchase /Assembly/Custom Packaging |
| High Light: | Customized Semiconductor Tester Board PCB,Tester Board PCB Assembly Service,Semiconductor Tester Board PCB Service |
||

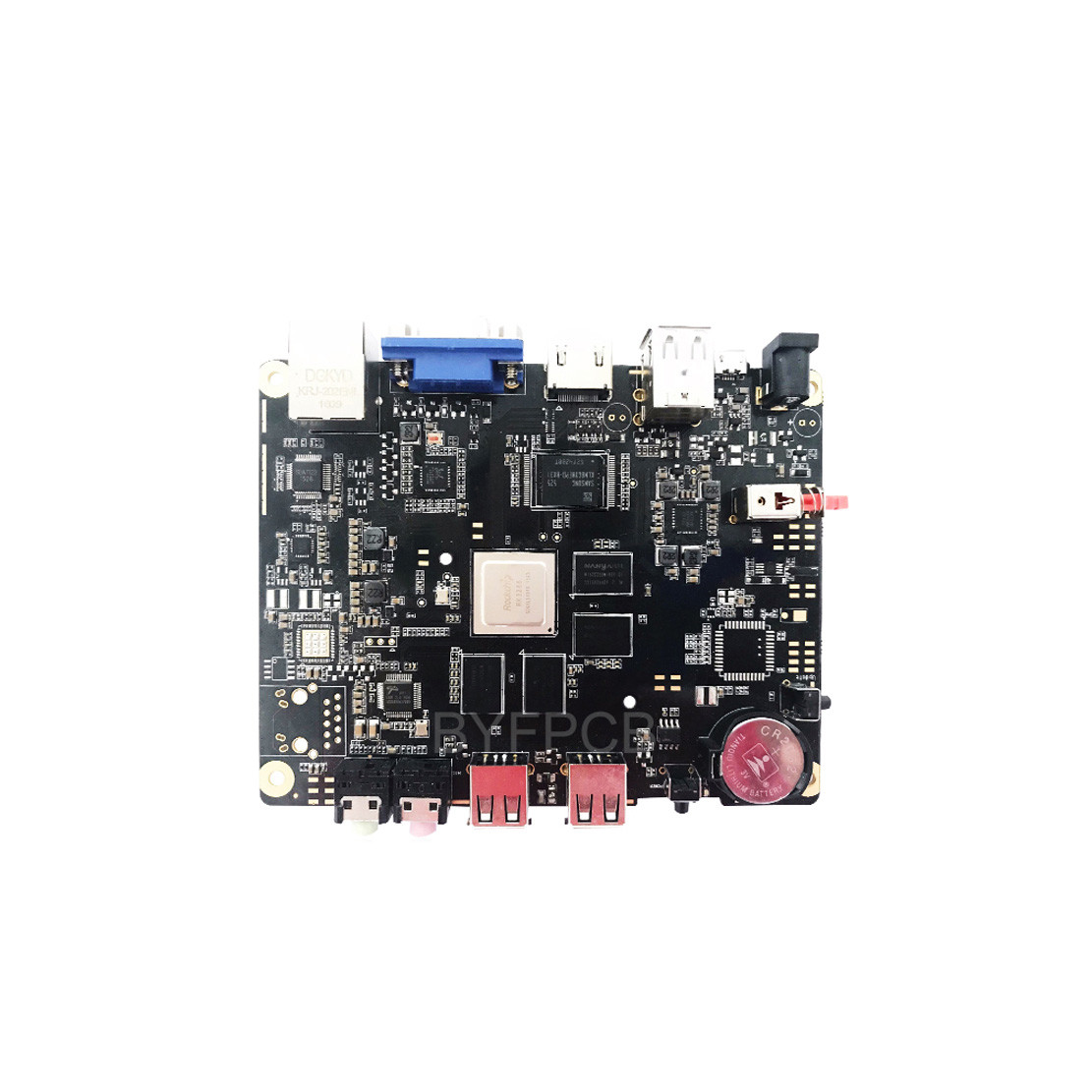

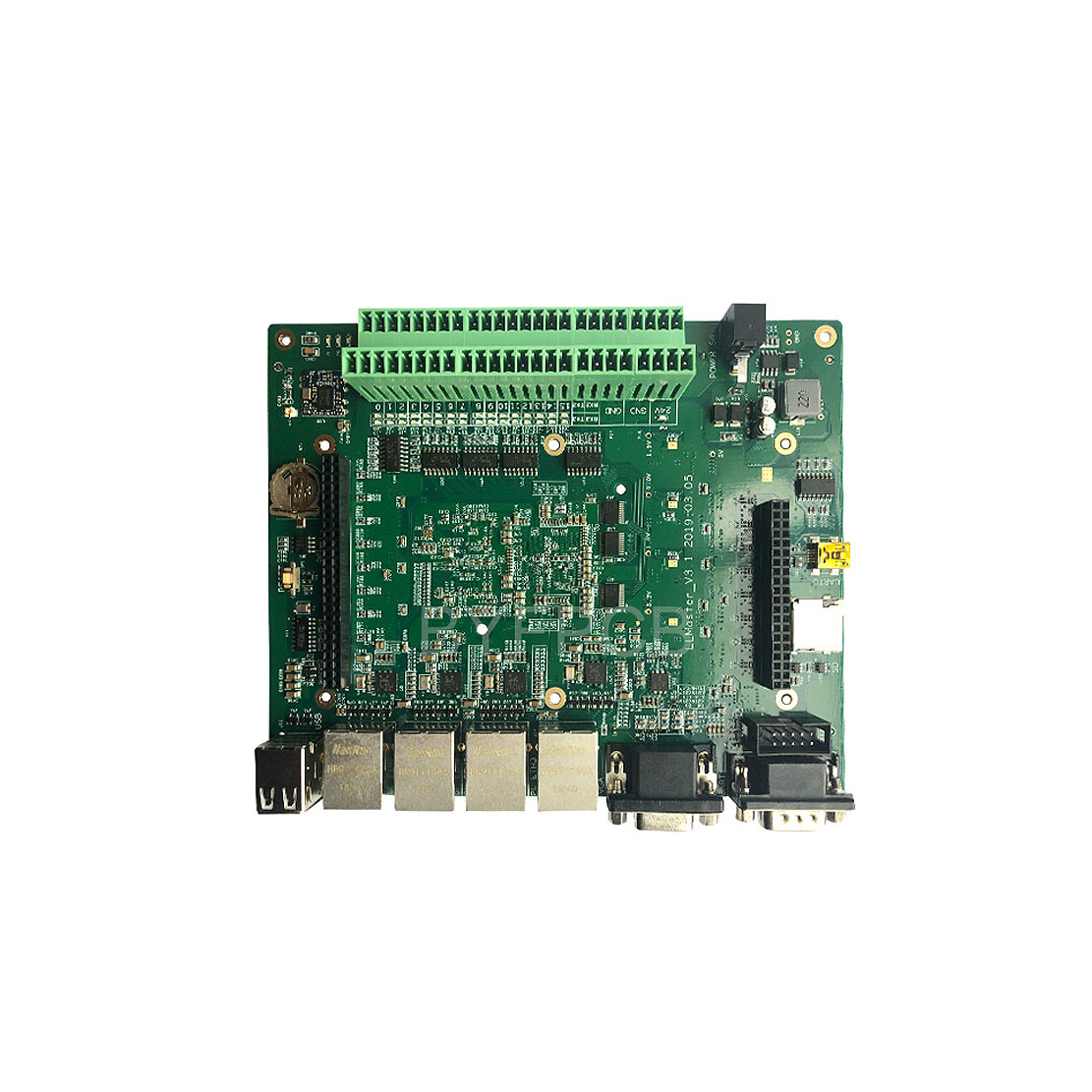

Customized Semiconductor Tester Board PCB Assembly Service Manufacturing Solution
What is circuit board assembly?
Printed circuit board assembly is the process of connecting the electronic components with the wirings of printed circuit boards. The traces or conductive pathways engraved in the laminated copper sheets of PCBs are used within a non-conductive substrate in order to form the assembly. Attaching the electronic components with the printed circuit boards is the concluding action before using the fully operational electronic device
SMT Assembly Quality Control
Technical Requirement for PCB Assembly
Professional Surface-mounting and Through-hole soldering technology
High Standard SMT&Solder Assembly Line
ICT(In Circuit Test),FCT(Functional Circuit Test) technology
PCB Assembly With CE, FCC, Rohs Approval
Nitrogen gas reflow soldering technology for SMT
High density interconnected board placement technology capacity
Various sizes like 1206, 0805, 0603 components SMT technology
Specification
|
Items |
Capabilities |
|
|
1 |
Layers |
2-68L |
|
2 |
Maximum machining size |
600mm*1200mm |
|
3 |
Board thickness |
0.2mm-6.5mm |
|
4 |
Copper thickness |
0.5oz-28oz |
|
5 |
Min trace/space |
2.0mil/2.0mil |
|
6 |
Minimum finished aperture |
0. 10mm |
|
7 |
Maximum thickness to diameter ratio |
15:1 |
|
8 |
Via treatment |
Via, blind&buried via, via in pad, Copper in via … |
|
9 |
Surface finish/treatment |
HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
|
10 |
Base Material |
FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, |
|
11 |
Solder mask color |
Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
|
12 |
Testing Service |
AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
|
13 |
Profiling Punching |
Routing,V-CUT,Beveling |
|
14 |
Bow&twist |
≤0.5% |
|
15 |
HDI type |
1+n+1,2+n+2,3+n+3 |
|
16 |
Min mechanical aperture |
0.1mm |
|
17 |
Min laser aperture |
0.075mm |
Company Profile
CESGATE with customers to provide them with the highest-quality PCB and PCB assembly electronic manufacturing services to achieve their goals. Our flexibility is in meeting customer requirements and our superior customer service. We help companies introduce their new products to market in the fastest time possible by providing high quality, quick-turn assembly.We provide one-stop electronic manufacturing service to help you qualify your designs and provide quality samples to your customers.
FAQ
|
Q: Popular field? |
|
Q: Can you give us a preferential discount? |
|
Q: Why choose us? |
|
Q: How long does it take for PCB quote? |
