Place of Origin: | China |
---|---|
Brand Name: | CESGATE |
Certification: | UL、IATF16949、ISO9001 |
Model Number: | N/A |
Minimum Order Quantity: | 1PCS( NO MOQ) |
Price: | Negotiable (Depends on your GERBER and BOM) |
Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
Delivery Time: | 1-30 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 30,000pcs/month |
Product Name: | Rogers Ro4003c RF PCB Board Sap Bill Of Material Transaction Sage 50 Bom | Feature: | Sage 50 Bom |
---|---|---|---|
Material:: | Aluminum,Brass,Bronze,Copper,Stainless Steel | Product Name:: | EMI Shielding Can / RF Shield Can / Shield Case |
Drawing Format:: | 2D/(PDF/CAD)3D(IGES/STEP) | Surface Treatment:: | Colour Anodize,Galvanized,Powder Coating,Chrome Plating... |
Material: | FR4 CEM1 CEM3 Hight TG | ||
High Light: | RF PCB Boards Ro4003c,RF PCB Boards Rogers Ro4003c,RF PCB Board 50 Bom |

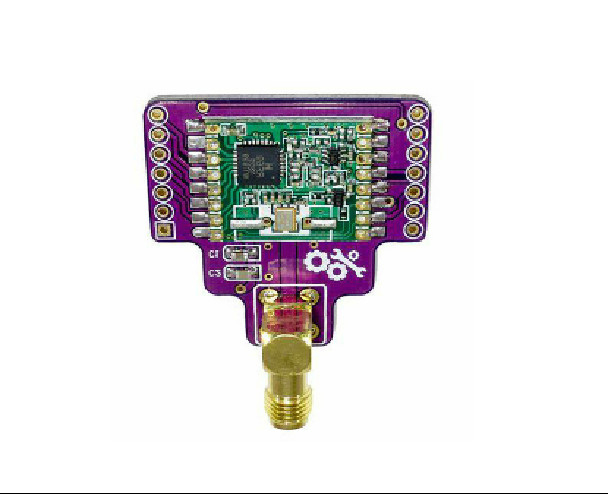

Rogers Ro4003c RF PCB Board Sap Bill Of Material Transaction Sage 50 Bom
Metal Core PCB Manufacturing Customized PCB Rigid Printed Circuit Boards
CESGATE with customers to provide them with the highest-quality PCB and PCBA electronic manufacturing services to achieve their goals. Our flexibility is in meeting customer requirements and our superior customer service. We help companies introduce their new products to market in the fastest time possible by providing high quality, quick-turn assembly.We provide one-stop electronic manufacturing service to help you qualify your designs and provide quality samples to your customers.
PCB characteristics:
1. High wiring density, small size and light weight, which is conducive to the miniaturization of electronic equipment.
2. Due to the repeatability and consistency of the graphics, the errors in wiring and assembly are reduced, and the time for equipment maintenance, debugging and inspection is saved.
3. Conducive to mechanized and automated production, increase labor productivity, and reduce the cost of electronic equipment.
4. The design can be standardized and easy to replace. RF PCB board is the abbreviation of printed circuit board, which is translated into Chinese as printed circuit board, because it is made of electronic printing, so it is called "printed" circuit board. PCB is an important electronic component in the electronics industry, it is the support of electronic components, and it is also the carrier of electrical connection of electronic components. PCBs have been widely used in the manufacture of electronic products.
Consumer electronics products:
Printed circuit boards are mainly composed of insulating substrates and conductors, and play the role of supporting, interconnecting and some circuit components in electronic equipment. Electronic components such as integrated circuits, resistors, capacitors, etc. cannot function as a single entity. They will only work as a unit if they have a solid footing on the RF PCB board and are connected with conductive joints. The printed circuit board is the skeleton that supports the components and the conduit that connects the electrical signals. In addition, some printed circuit boards have components such as resistors, capacitors, inductors, etc., which become functional circuits and function as air ducts. The role of printed circuit boards in electronic equipment is to provide mechanical support for fixing and assembling components such as transistors, integrated circuits, resistors, capacitors, and inductors; to achieve the integration of transistors, integrated circuits, resistors, capacitors, inductors, and other components. The wiring, electrical connection and electrical insulation between components conform to their electrical characteristics; identification characters and graphics are provided for the inspection and maintenance of components in the electronic assembly process, and solder mask graphics are provided for wave soldering.
PCB Capacities and Technical Specification
NO. | Items | Capabilities |
1 | Layers | 2-68L |
2 | Maximum machining size | 600mm*1200mm |
3 | Board thickness | 0.2mm-6.5mm |
4 | Copper thickness | 0.5oz-28oz |
5 | Min trace/space | 2.0mil/2.0mil |
6 | Minimum finished aperture | 0. 10mm |
7 | Maximum thickness to diameter ratio | 15:1 |
8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
13 | Profiling Punching | Routing,V-CUT,Beveling |
14 | Bow&twist | ≤0.5% |
15 | HDI type | 1+n+1,2+n+2,3+n+3 |
16 | Min mechanical aperture | 0.1mm |
17 | Min laser aperture | 0.075mm |
Advanced PCB Manufacturing and PCB Assembly Equipment
CESGATE has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the RF PCB Board field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.
FAQ:
Q: Do you support fast proofing? CESGATE: Yes, we support fast proofing within 3-7 days. |
Q: What does CESGATE need for a customized PCB order? CESGATE: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products. |
Q: How about the shipping cost? CESGATE: The Shipping cost depends on the destination, the weight and volume of the goods as well as the quotation of DHL/FEDEX/ freight forwarder at that time. You can inform us of the transportation way you need before placing an order. |
Q: The Wire Bonding process is required when the circuit board is printed. What should I pay attention to when making the circuit board? CESGATE: When making circuit boards, the surface treatment options are mostly "nickel palladium gold ENEPIG" or "chemical gold ENIG". If the Al aluminum wire is used, the gold thickness is recommended to be 3μ”~5μ”, but if the Au gold wire is used, the gold thickness should preferably be more than 5μ”. |
