RF Circuit Card 2-64 Layer Fast PCB Fabrication PCB Manufacturing Service

Basic Information
Place of Origin: China
Brand Name: RF PCB
Certification: UL,IATF16949,IS09001,ISO14001
Model Number: Cesgate
Minimum Order Quantity: 1PCS( NO MOQ)
Price: $1.00
Packaging Details: PCB: Vacuum Packing / PCBA: ESD + vacuum Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Copper Thickness: 0.5OZ - 12OZ Product Name: RF PCB Board
Min. Hole Size: 0.25mm Silkscreen: White
Warranty: 1 Year Layer: 2-64Layer
Min. Line Width: 0.1mm Impedance Control: Yes

Product Description:

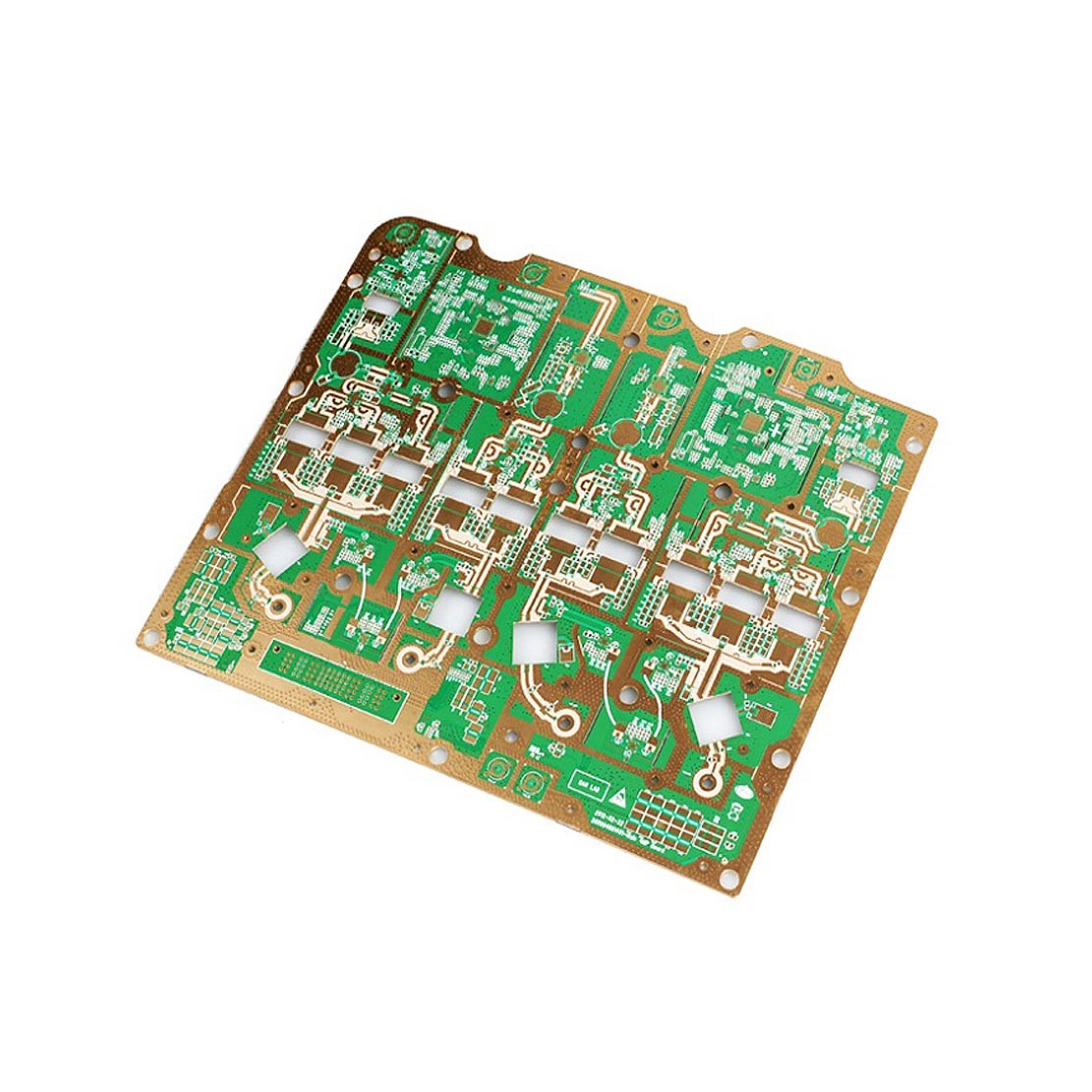

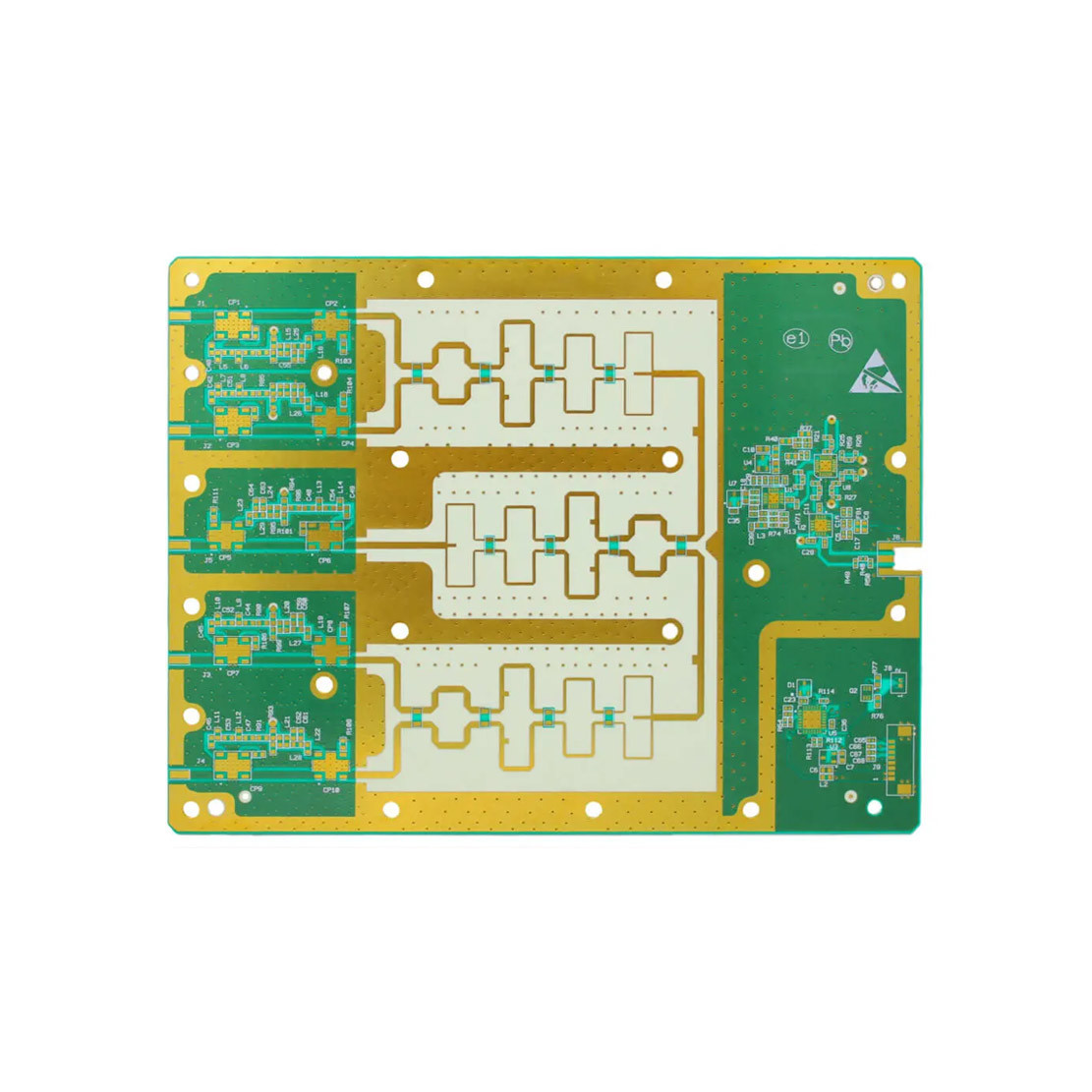

RF PCB Board is a radio frequency printed circuit board designed for high performance and reliability. It is a durable and high quality product with a solder mask of green, a surface finish of HASL, and impedance control for best results. The board thickness ranges from 0.2mm to 10.0mm and is backed by a 1 year warranty. With its high quality and reliable performance, the radio frequency printed board is perfect for applications in the radio frequency field. It is a versatile and reliable product that is sure to satisfy any customer's needs.RF Circuit Card 2-64 Layer  Fast PCB Fabrication PCB Manufacturing Service 0RF Circuit Card 2-64 Layer  Fast PCB Fabrication PCB Manufacturing Service 1



Technical Parameters:

Product Name RF PCB Board
Min. Line Width 0.1mm
Material FR-4
Board Thickness 0.2mm - 10.0mm
Surface Finish HASL
Warranty 1 Year
Min. Line Spacing 0.1mm
Min. Hole Size 0.25mm
Copper Thickness 0.5OZ - 12OZ
Solder Mask Green


Applications:

RF PCB Board is a high quality printed circuit component that is widely used in a variety of applications. It is designed to ensure reliable and consistent performance. It is made by Cesgate with UL, IATF16949, IS09001, ISO14001 certifications. The minimum order quantity is 1PCS without any MOQ limit.Printed circuit boards are mainly composed of insulating substrates and conductors, which play the role of support, interconnection and part of circuit elements in electronic equipment. Electronic components such as integrated circuits, resistors, capacitors, etc. cannot function as a single entity. They only work as a whole if they have a firm foothold on the PCB and there are conductive junctions connecting them. The printed circuit board is the skeleton that supports the components and is the conduit for connecting electrical signals. In addition, some printed circuit boards have components such as resistors, capacitors, inductors, etc., which become functional circuits and play the role of trachea.

Customization:

RF PCB Board Customization Services

Brand Name: RF PCB
Model Number: Cesgate
Place of Origin: China
Certification: UL, IATF16949, IS09001, ISO14001
Minimum Order Quantity: 1PCS(NO MOQ)
Price: $1.00
Packaging Details: PCB: Vacuum Packing/ PCBA: ESD + vacuum Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Solder Mask: Green
Impedance Control: Yes
Material: FR-4
Min. Hole Size: 0.25mm
Surface Finish: HASL

RF Circuit Card 2-64 Layer  Fast PCB Fabrication PCB Manufacturing Service 2

Support and Services:

Technical Support and Service for RF PCB Board

We provide professional technical support and service for RF PCB Board. Our team of experienced engineers and technicians are available to provide maintenance and troubleshooting assistance for all our products.

We also offer customized solutions for customers who have specific requirements. Our custom solutions are tailored to meet your unique needs and provide you with the best possible results.

We offer free technical support via phone, email, and chat. Our customer service representatives are available to answer any questions you may have about our products and services.

In addition, we provide a comprehensive library of resources, including user manuals, product datasheets, and application notes to help you get the most out of your RF PCB Board.

If you have any questions or need additional information, please contact us. We are here to help.



Packing and Shipping:

Packaging and Shipping of RF PCB Board

When shipping RF PCB boards, it is important to ensure that the board is properly packaged and shipped in order to prevent damage and ensure its safe arrival to the destination. The following are the steps that should be taken when packaging and shipping an RF PCB board:

  • Securely wrap the RF PCB board in an anti-static bag.
  • Place the RF PCB board in an anti-static box or envelope.
  • Fill the box or envelope with packing peanuts or other cushioning materials to prevent the board from moving around during transit.
  • Seal the box or envelope with packing tape.
  • Label the box or envelope with the destination address and any other relevant information.
  • Place the box or envelope in a shipping box or mailer.
  • Fill the shipping box or mailer with cushioning materials to prevent the board from moving around during transit.
  • Seal the shipping box or mailer with packing tape.
  • Label the shipping box or mailer with the destination address and any other relevant information.
  • Take the package to a shipping carrier and have it shipped to the destination.


FAQ:

Q: What is the brand name of the RF PCB Board?
A: The brand name is RF PCB.
Q: Where is the RF PCB Board from?
A: The RF PCB Board is from China.
Q: What certifications has the RF PCB Board received?
A: The RF PCB Board has received UL, IATF16949, IS09001, ISO14001 certifications.
Q: How long is the shelf life of the PCB board and how should it be stored?
A: 25℃ / 60%RH is recommended when the PCB is stored. The plate itself has no shelf life, but if it exceeds three months, it needs to be baked to remove moisture and stress, and it should be used immediately after baking. It is recommended that the pieces should be loaded within 6 months of storage to reduce the phenomenon of rejection and explosion.
