| Place of Origin: | China |
|---|---|
| Brand Name: | CESGATE |
| Certification: | UL, IATF16949, ISO9001 |
| Model Number: | NA |
| Minimum Order Quantity: | 1PCS( NO MOQ) |
| Price: | Negotiable (Depends on your GERBER and BOM) |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 13kk soldering spot/day |
| Product Name: | Wave Soldering FR4 Lead Free PCB Assembly Service Quick Turn High TG Aerospace | Feature: | Multilayer/ Customization |
|---|---|---|---|
| Min Laser Aperture: | 0.075mm | HDI Type: | 1+n+1、2+n+2、3+n+3 |
| Shape: | Retangular/Round/Slots/Cutouts/Complex/Irregular | Test: | AOI/ X-Ray/Flying-Probe/Function Test |
| Silkscreen: | White, Black, Green, Matt Black... | Tolerance Of Impedence Control: | 5%-10% |
| High Light: | FR4 Lead Free PCB Assembly Service,Wave Soldering FR4 PCB Assembly Service,High TG Aerospace Quick Turn Pcb |
||

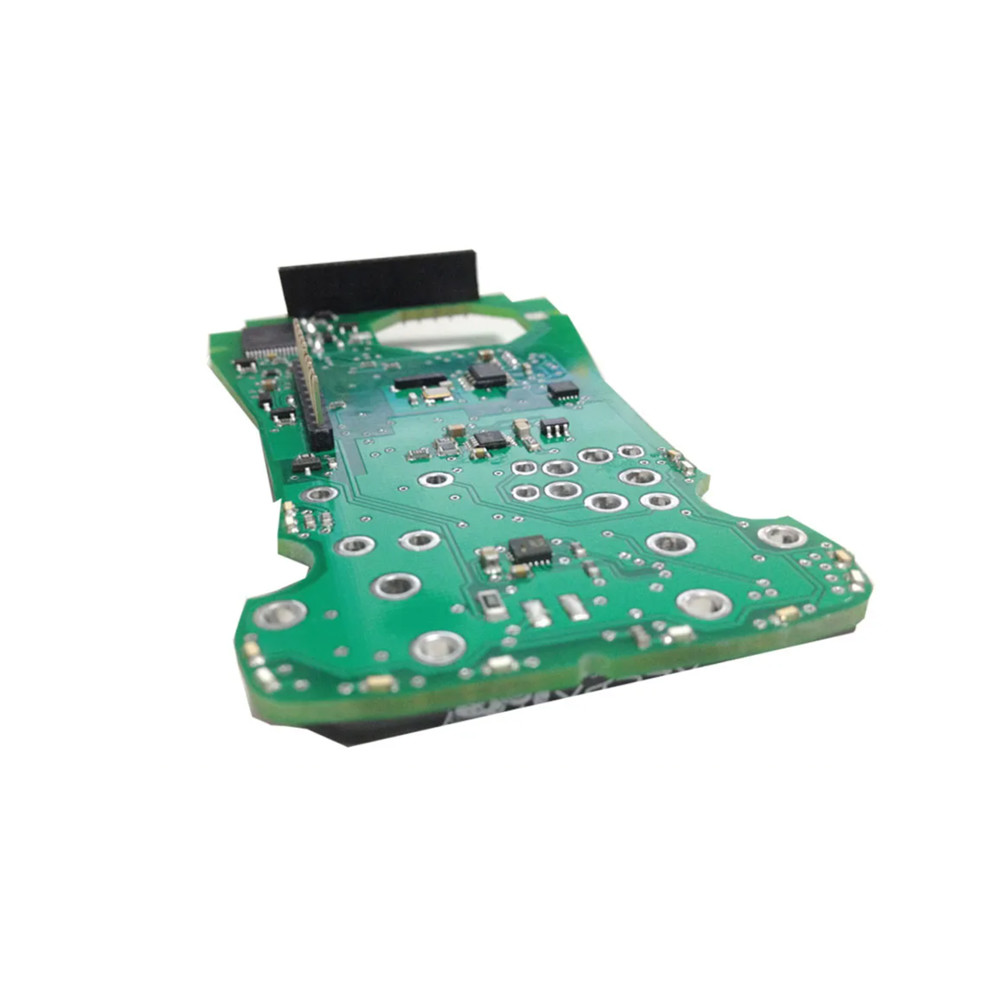

Wave soldering FR4 Lead Free PCB Assembly Service Quick Turn High TG Aerospace
What can we do?
Specification
| NO. | Items | Capabilities |
| 1 | Layers | 2-68L |
| 2 | Maximum machining size | 600mm*1200mm |
| 3 | Board thickness | 0.2mm-6.5mm |
| 4 | Copper thickness | 0.5oz-28oz |
| 5 | Min trace/space | 2.0mil/2.0mil |
| 6 | Minimum finished aperture | 0. 10mm |
| 7 | Maximum thickness to diameter ratio | 15:1 |
| 8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
| 9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| 11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
| 12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| 13 | Profiling Punching | Routing,V-CUT,Beveling |
| 14 | Bow&twist | ≤0.5% |
| 15 | HDI type | 1+n+1,2+n+2,3+n+3 |
| 16 | Min mechanical aperture | 0.1mm |
| 17 | Min laser aperture | 0.075mm |
Company Profile
CESGATE has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop PCB assembly services, including pcb manufacture, assembly, components sourcing and function testing.With one-stop solution, high-end product structure, professional product development and manufacturing technology, stable quality performance and well management system,
CESGATE has established long-term and stable cooperate relations with the world's leading communication equipment , aerospace electronics and medical equipment manufacturers.
FAQ
| Q: What is your minimum order quantity (MOQ)? CESGATE: Our MOQ is 1 PCS, we are able to handle Small as well as large volume production with flexibility. |
| Q: Are you factory? CESGATE: Our factory is located in Building 6, Fuyuan industrial park, Qiaotang road, Fuyong street , Shenzhen city, China |
| Q: How about the shipping cost? CESGATE: The Shipping cost depends on the destination, the weight and volume of the goods as well as the quotation of DHL/FEDEX/ freight forwarder at that time. You can inform us of the transportation way you need before placing an order. |
| Q: How can we guarantee quality? CESGATE: Always a pre-production sample before mass production; Always final Inspection and test report before shipment; |
| Q: Why should we buy from CESGATE? CESGATE: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow. Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition. From the design to the complete product, CESGATE's professional team will put you at ease |
| Q: IS PRODUCT PICTURES AND LABELS AVAILABLE? CESGATE: We will offer after you place an order or before shipment. |
