4mil Manufacturing Printed Circuit Board Prototype PCB 1206 0805 0603

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: ISO9001/ ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Features: Prototype/INC Product Name: Manufacturing Circuit Board PCB Prototype Service Bittele Electronics INC
Material: Stainless Steel, Aluminum, Plastic, Brass, Copper Etc Optional Service: 3 4 5 6 Axis CNC Machining Service
Min. Line Spacing: 4mil, 0.003", 0.1mm4mil), 0.1mm, 4/4mil(0.1/0.1mm) Min. Line Width: 4mil, 0.1mm, 0.1mm/4mi, 0.075mm/0.075mm(3mil/3mil), 3mi
Min. Hole Size: 0.2mm, 8 Mil, 0.10mm, 3mil (0.075mm), 0.004" MOQ: Small Orders Accepted
High Light:

4mil Manufacturing Circuit Board

,

4mil prototype pcb

,

Manufacturing Circuit Board 1206 0805

Manufacturing Circuit Board PCB Prototype Service Bittele Electronics INC





Production Equipments

CESGATE is equipped with central air conditioning, air shower room, anti-static treatment, constant temperature and humidity warehouse, etc. Equipped with new imported Fuji XPF, NXT3, automatic solder paste printing machine, ten temperature zone reflux furnace, wave soldering, AOI/SPI/XRAY/First Article Inspection, CESGATE is especially good at high-precision, high-complexity PCB Prototype Service, and has actual performance in producing ultra-complex PCB Prototype. CESGATE conducts internal quality control in strict accordance with ISO requirements. The company is equipped with nearly 20 professional quality management and inspection personnel, more than 10% of the total number of people. The company is equipped with more than 40 sets of advanced testing equipment such as AOI optical detector, electrostatic tester, transistor grapher, etc., which can effectively control the production process. Quality risks in all aspects.




Strengths of CESGATE



PCB Prototype Service Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm


Company Descripiton



CESGATE focuses on one-stop service like research and development of sample making, batch PCB Prototype Service, test:

  1. SMT production line: 14 SMT production lines.
  2. Fast delivery: 8 hours of expedited delivery, with an accurate delivery rate of more than 95% within 48 hours.
  3. Minimum mount: 03015,01005,0201,0402.
  4. One-stop hardware innovation platform: PCB fabrication, assembly, component selection.
  5. High-end equipments: FUJI XPF, NXT3, AIMEX, AOI/SPI/XRAY/ First article inspection, etc.
  6. Full BOM material selection: more than 60,000 kinds of common electronic components are in stock.

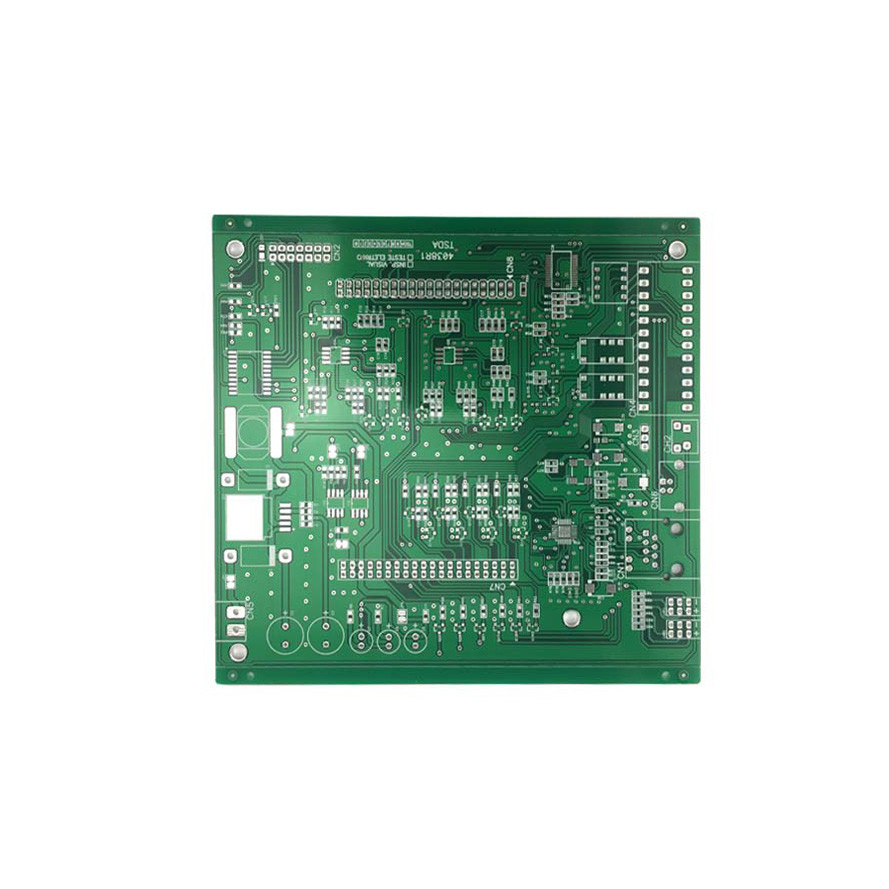

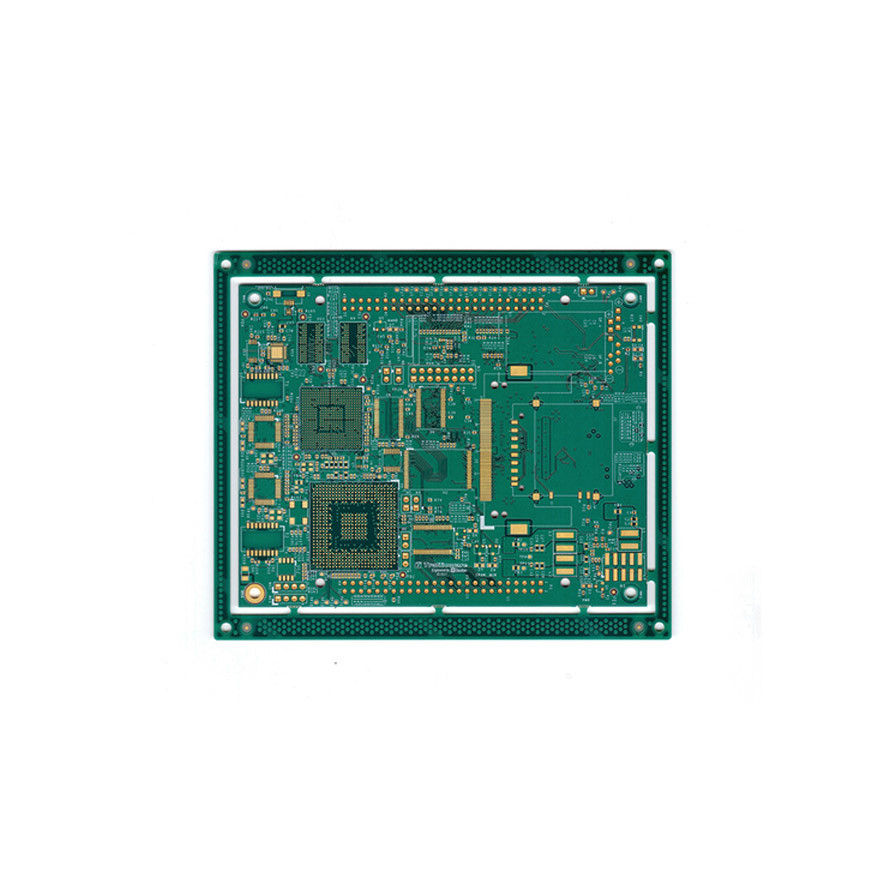

4mil Manufacturing Printed Circuit Board Prototype PCB 1206 0805 0603 04mil Manufacturing Printed Circuit Board Prototype PCB 1206 0805 0603 14mil Manufacturing Printed Circuit Board Prototype PCB 1206 0805 0603 24mil Manufacturing Printed Circuit Board Prototype PCB 1206 0805 0603 3
