Matte Black Fast PCB Printed Circuit Board Assembly FR408 FR408HR

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL, IATF16949, ISO9001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Product Name: Multilayer SMT Fast Delivery Wave Soldering Main PCBA Satisfied Customer Service Feature: SMT/Customization
High-end Equipment: FUJI NXT3/XPF Laminator Material: FR4/M4/M6/Rogers/TU872/IT968
Lead Time: 3-7 Working Days Test: AOI/SPI/XRAY/First Article Inspection
Warrant: 3 Months Board Thickness: 0.2mm-6.5mm
High Light:

Matte Black pcb assembly FR408 FR408HR

,

Matte Black pcb FR408 FR408HR

,

Matte Black fast pcb assembly FR408 FR408HR

Multilayer SMT Fast Delivery Wave Soldering Main PCBA Satisfied Customer Service





Great Services



As IATF16949 verified circuit board factory, CESGATE will provide DFM Analysis for your every order, as well as low volume and medium volume production runs. We verify all details of your files, including Gerber files, to allow you to correct your Main PCBA design before manufacturing, saving significant time and cost. We use ERP and MES system, which can protect all your project files and also control all the parts quality from the beginning to the end. As a Main PCBA manufacturer, we have complete and mature tracking system by the two systems, which can solve the problems quickly, also guarantees on time delivery of quick turn printed circuit board.



Advantages of CESGATE PCB Assembly service



Test each function of the product according to the test case, and provide the test report. We can provide services such as electrical measurement and aging according to customer needs to improve product reliability. For each process, CESGATE has formulated perfect operation instructions, and customized targeted inspection standards according to products in different industries, so as to improve the pass-through rate of products from each link.



Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Company Profile



Chengdu Cesgate Technology Co., Ltd. was established in Chengdu, Sichuan, China. It is an electronic manufacturing service provider and printed circuit board manufacturer, providing PCB design layout, PCB manufacturing, PCB assembly, component procurement, Main PCBA functional testing, finished product assembly, etc. worldwide One-stop service. A wide range of end markets including Main PCBA for automotive, consumer, industrial and healthcare. Our products are exported all over the world, including North America, South America, European countries and Asia, etc. The company has strong professional R&D engineers and more than 10 SMT production lines.

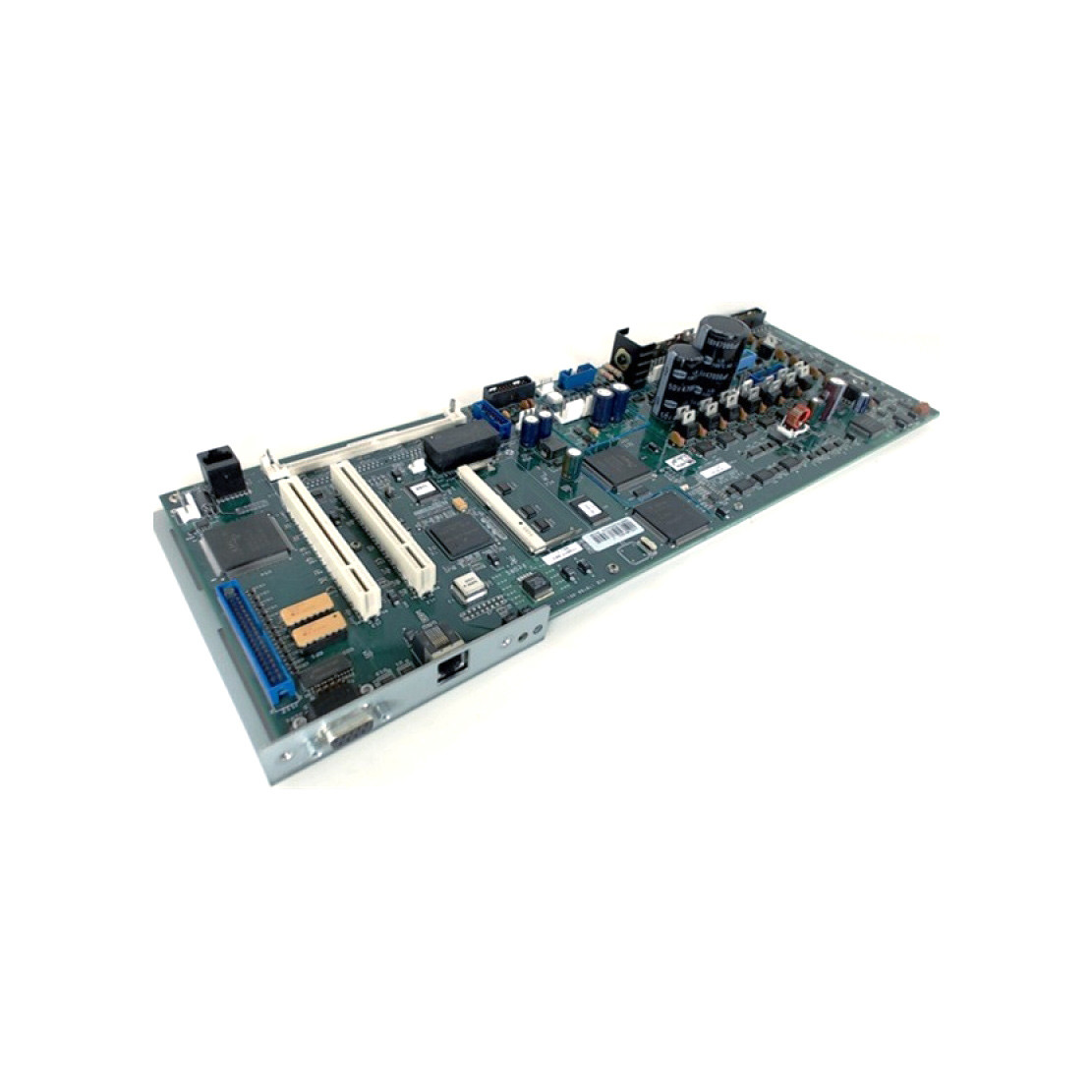

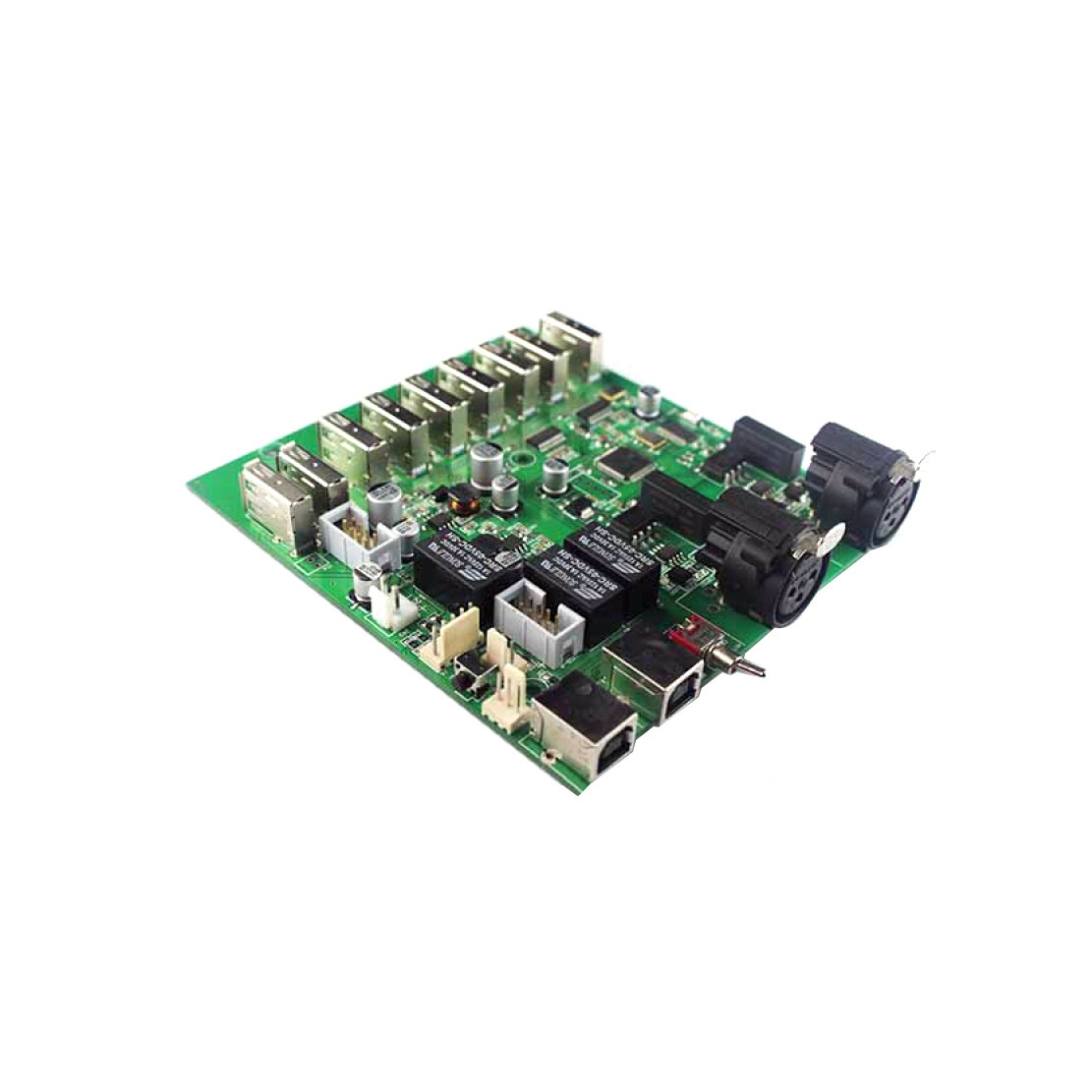

Matte Black Fast PCB Printed Circuit Board Assembly FR408 FR408HR 0Matte Black Fast PCB Printed Circuit Board Assembly FR408 FR408HR 1Matte Black Fast PCB Printed Circuit Board Assembly FR408 FR408HR 2Matte Black Fast PCB Printed Circuit Board Assembly FR408 FR408HR 3



FAQ



Q: What are the main products of your PCB/PCBA services?
CESGATE: Automotive, Military, Aerospace, Industry Control, Medical care, IOT, Smart Home, Robot, Auto parts, Camera, UAV.
Q: What is your minimum order quantity (MOQ)?
CESGATE: Our MOQ is 1 PCS, we are able to handle Small as well as large volume production with flexibility.
Q: Are you factory?
CESGATE: Our factory is located in Building 6, Fuyuan industrial park, Qiaotang road, Fuyong street , Shenzhen city, China
Q: How about the shipping cost?
CESGATE: The Shipping cost depends on the destination, the weight and volume of the goods as well as the quotation of DHL/FEDEX/ freight forwarder at that time. You can inform us of the transportation way you need before placing an order.
