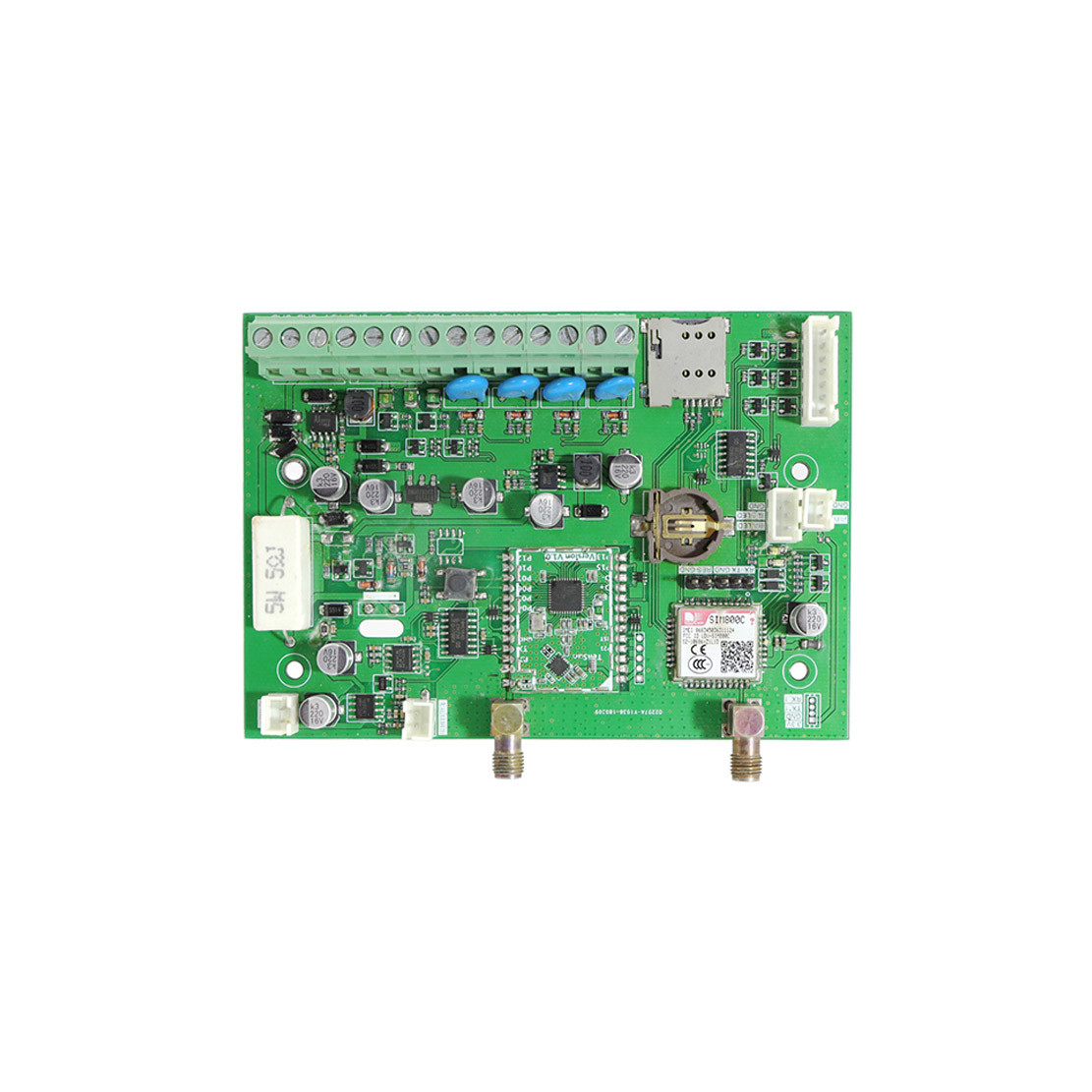

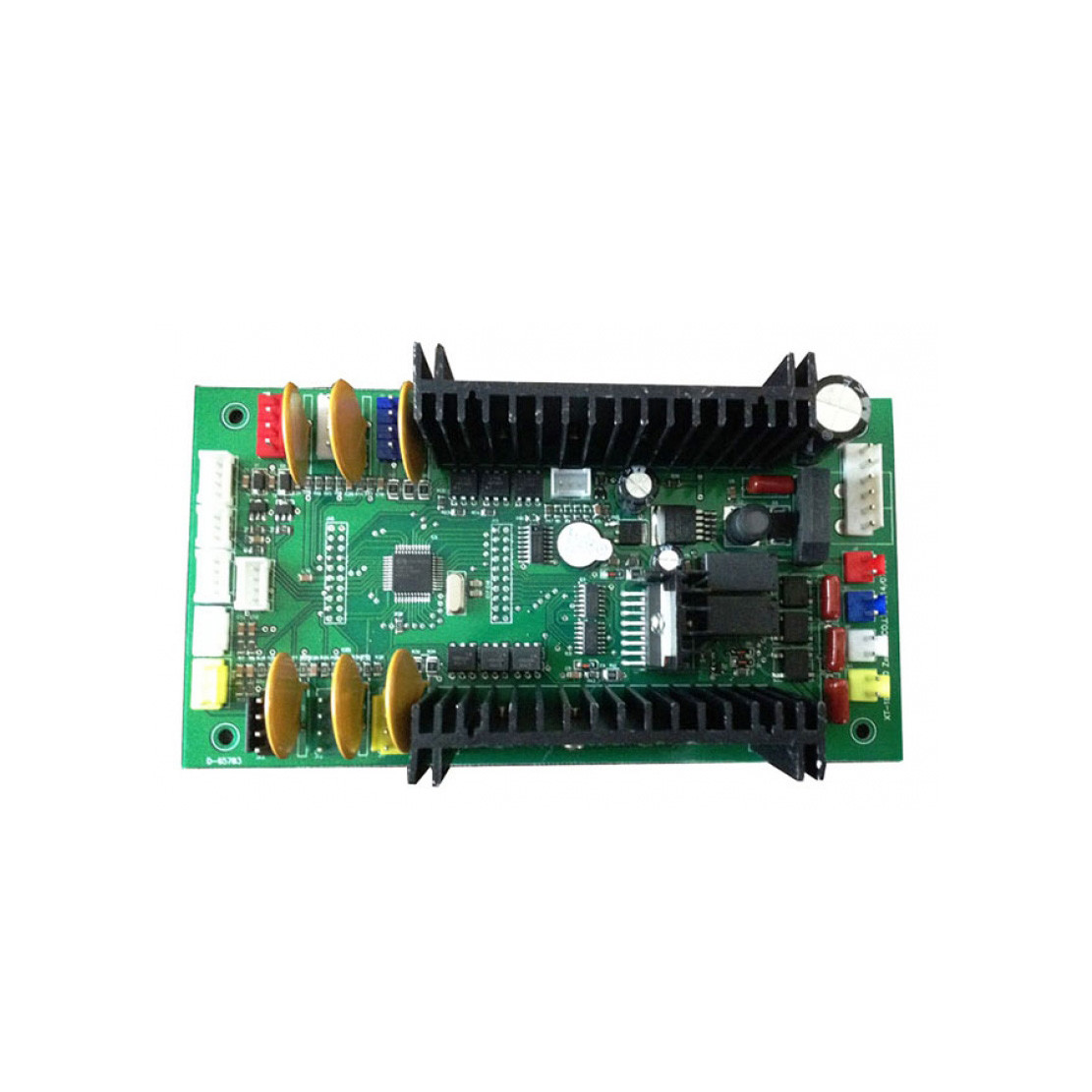

Matte Green SMT PCBA Electronics Manufacturing V CUT Beveling

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL, IATF16949, ISO9001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Product Name: OEM Board SMT Manufacturing 2022 Main PCBA Service Graphic Customization Feature: OEM/SMT
High-end Equipment: FUJI NXT3/XPF Laminator Material: FR4/M4/M6/Rogers/TU872/IT968
Lead Time: 3-7 Working Days Test: AOI/SPI/XRAY/First Article Inspection
Layers: 2-68L Bow & Twist: ≤0.5%
High Light:

Matte Green smt electronics manufacturing

,

smt electronics manufacturing V CUT

,

Matte Green SMT PCBA

OEM Board SMT Manufacturing 2022 Main PCBA Service Graphic Customization





Quality Control of CESGATE Main PCBA





Strengths of CESGATE



GESGATE is experienced in engineering, eliminate problems and traps before production. We have professional PCB manufacturing, Main PCBA and component procurement team, providing one-stop service, saving time and effort. We can provide one-stop service for you to save time and effort. We can test each function of the product according to the test case, and provide the test report. We can provide services such as electrical measurement and aging according to customer needs to improve product reliability. For each process, CESGATE has formulated perfect operation instructions, and customized targeted inspection standards according to products in different industries, so as to improve the pass-through rate of products from each link.





Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Company Profile



Chengdu Cesgate Technology Co.,Ltd was found in Chengdu, China.The company is strong and professional technical, with perfect quality assurance system and advances test-analyzed instrument. CESGATE is one of the Professional PCB manufacturer from China. We have professional PCB designer for your PCB layout requirement. We design single, double, and multi layers, Rigid, flexible, Flex-Rigid printed circuit boards, and Main PCBA.



Matte Green SMT PCBA Electronics Manufacturing V CUT Beveling 0Matte Green SMT PCBA Electronics Manufacturing V CUT Beveling 1Matte Green SMT PCBA Electronics Manufacturing V CUT Beveling 2Matte Green SMT PCBA Electronics Manufacturing V CUT Beveling 3

FAQ



Q: Are my files safe?
CEGSATE: Your files are kept very safe, and we are protecting intellectual property for our clients throughout the process. All files provided by customers are never shared with any third party.
Q: MOQ?
CESGATE: There is no MOQ in POE. We are able to flexibly handle small and large batches.
Q: Do you have any other services?
CESGATE: We mainly focus on the procurement services of PCB + assembly + components. In addition, we can also provide programming, testing, cable, housing assembly services.
Q: What is your inspection policy? How do you control the quality?
CESGATE: In order to ensure the quality of PCB products, flying probe inspection is usually used; electrical fixtures, automatic optical inspection (AOI), BGA parts x-ray inspection, first article inspection ( FAI) etc.
