| Product Name: | CE FCC Rohs PCB SMT Assembly 03015 Multi Layer Printed Circuit Board | Feature: | SMT/OEM |
|---|---|---|---|
| Min Package: | 03015 | Profiling Punching: | Routing/V-CUT/Beveling |
| High-end Equipment: | FUJI NXT3/XPF Laminator | Copper Thickness: | 0.5oz-28oz |
| Test: | AOI/ X-Ray/Flying-Probe/Function Test | Other Service: | Components Purchase /Assembly/Custom Packaging |
| High Light: | PCB SMT Assembly 03015,03015 multi layer printed circuit board,CE FCC Rohs PCB SMT Assembly |
||

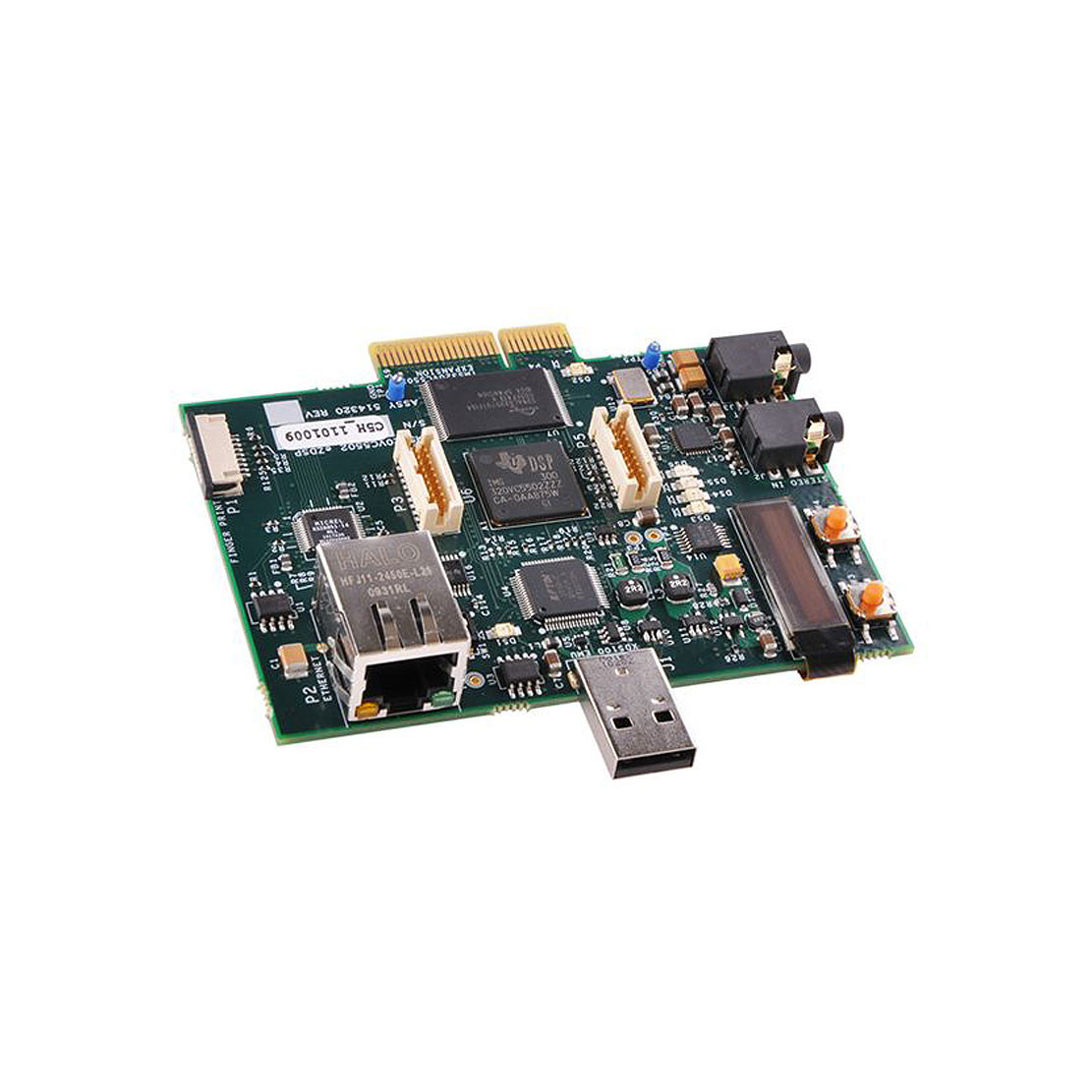

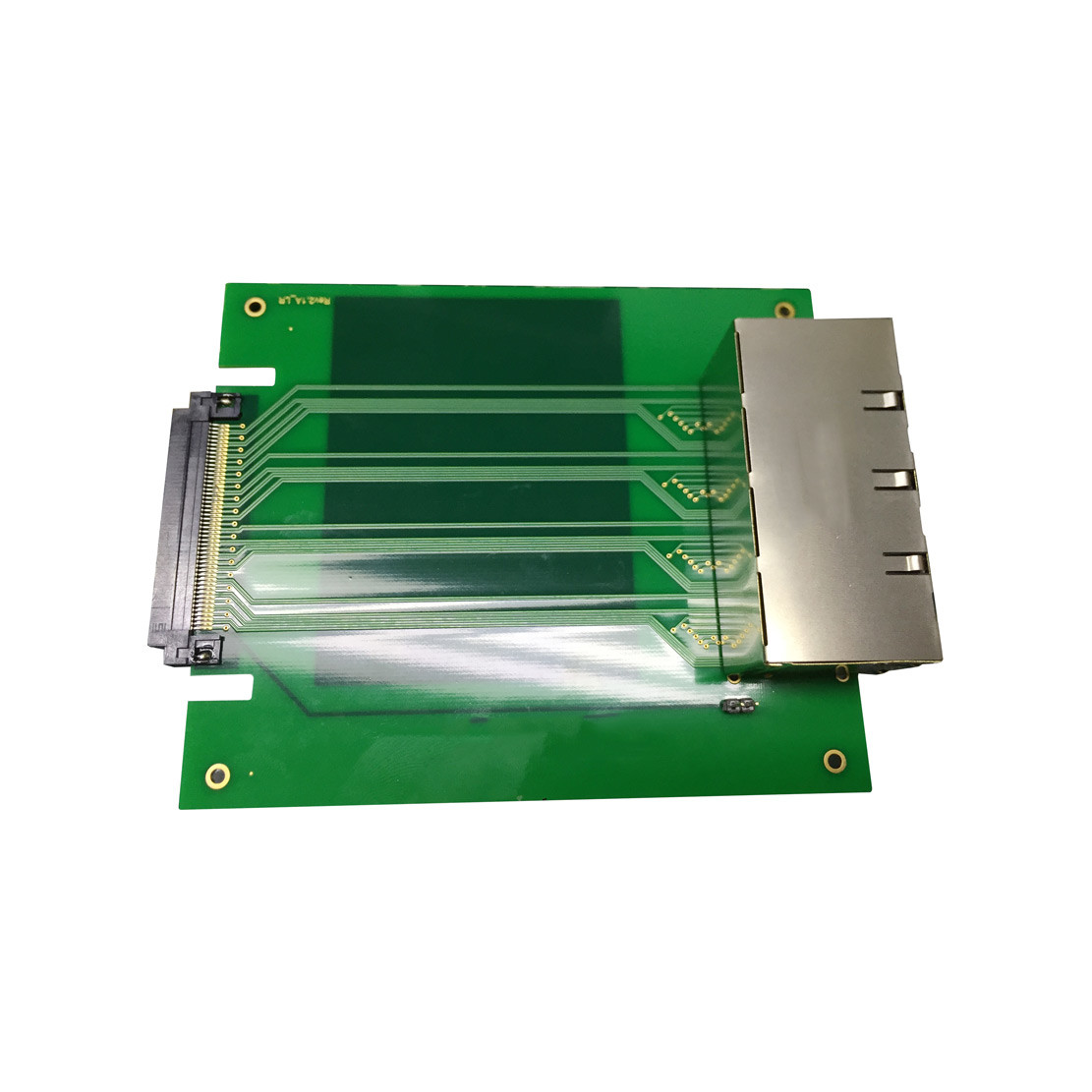

CE FCC Rohs PCB SMT Assembly 03015 Multi Layer Printed Circuit Board
What is circuit board assembly?
Printed circuit board assembly is the process of connecting the electronic components with the wirings of printed circuit boards. The traces or conductive pathways engraved in the laminated copper sheets of PCBs are used within a non-conductive substrate in order to form the assembly. Attaching the electronic components with the printed circuit boards is the concluding action before using the fully operational electronic device
Satisfied Services
1. 7/24 Sales and technical support
2. Felxible payment methods and negotiable payment terms
3. Both samples and bulk orders are supported
4. More than 10 years overseas export experience, flexible handling of transportation and customs clearance issues
Strengths of CESGATE
GESGATE is experienced in engineering, eliminate problems and traps before production. We have professional PCB manufacturing, PCB assembly and component procurement team, providing one-stop service, saving time and effort. We can provide services such as electrical measurement and aging according to customer needs to improve product reliability. We can offer you one-stop service to save time and effort. We can test each function of the product according to the test case, and provide the test report. For each process, CESGATE has formulated perfect operation instructions, and customized targeted inspection standards according to products in different industries, so as to improve the pass-through rate of products from each link.
Technical Requirement for PCB Assembly
Specification
| NO. | Items | Capabilities |
| 1 | Layers | 2-68L |
| 2 | Maximum machining size | 600mm*1200mm |
| 3 | Board thickness | 0.2mm-6.5mm |
| 4 | Copper thickness | 0.5oz-28oz |
| 5 | Min trace/space | 2.0mil/2.0mil |
| 6 | Minimum finished aperture | 0. 10mm |
| 7 | Maximum thickness to diameter ratio | 15:1 |
| 8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
| 9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| 11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
| 12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| 13 | Profiling Punching | Routing,V-CUT,Beveling |
| 14 | Bow&twist | ≤0.5% |
| 15 | HDI type | 1+n+1,2+n+2,3+n+3 |
| 16 | Min mechanical aperture | 0.1mm |
| 17 | Min laser aperture | 0.075mm |
Company Profile
Chengdu Cesgate Technology Co., Ltd. is located in Chengdu High-tech Zone, Sichuan, China, with a standardized modern industrial plant of about 4,000 square meters. The company is a leading electronic manufacturing service provider in Chengdu. The factory has passed the ISO9001 quality management system certification and ISO14001 environmental protection system certification issued by SGS. Since its establishment, the company has adhered to the business philosophy of "professional quality, continuous innovation, and high-quality service". CESGATE is one of the Professional PCB manufacturer from China. We have professional PCB designer for your PCB layout requirement. We design single, double, and multi layers, Rigid, flexible, Flex-Rigid printed circuit boards, and PCB assembly.
FAQ
| Q: What is your inspection policy? How do you control the quality? CESGATE: In order to ensure the quality of PCB products, flying probe inspection is usually used; electrical fixtures, automatic optical inspection (AOI), BGA parts x-ray inspection, first article inspection ( FAI) etc. |
| Q: What service do you have? CESGATE: We provide turnkey solution including RD, PCB fabrication, SMT, final assembly,testing and other value-added service. |
| Q: What are the main products of your PCB/PCBA services? CESGATE: Our PCB/PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering/Measurements, Consumer Electronics. |
| Q: Is CESGATE a factory or trade company? CESGATE: CESGATE is a factory with PCB factory located in Senzhen and SMT assembly factories in both Shenzhen and Chengdu. |
