| Place of Origin: | China |
|---|---|
| Brand Name: | CESGATE |
| Certification: | UL, IATF16949, ISO9001 |
| Model Number: | NA |
| Minimum Order Quantity: | 1PCS( NO MOQ) |
| Price: | Negotiable (Depends on your GERBER and BOM) |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 13kk soldering spot/day |
| Product Name: | Min Laser Aperture 0.075mm Quick Turn PCB Assembly Service OEM ODM | Feature: | OEM And ODM |
|---|---|---|---|
| Maximum Thickness To Diameter Ratio: | 15:1 | SMT Production Line: | 14 |
| High-end Equipment: | FUJI NXT3/XPF Laminator | Material: | FR4/M4/M6/Rogers/TU872/IT968 |
| Test: | AOI/SPI/XRAY/First Article Inspection | Min Laser Aperture: | 0.075mm |
| High Light: | 0.075mm quick turn PCB assembly,0.075mm quick turn PCB assembly OEM ODM,0.075mm PCB Assembly Service OEM ODM |
||
What is circuit board assembly?
Printed circuit board assembly is the process of connecting the electronic components with the wirings of printed circuit boards. The traces or conductive pathways engraved in the laminated copper sheets of PCBs are used within a non-conductive substrate in order to form the assembly. Attaching the electronic components with the printed circuit boards is the concluding action before using the fully operational electronic device

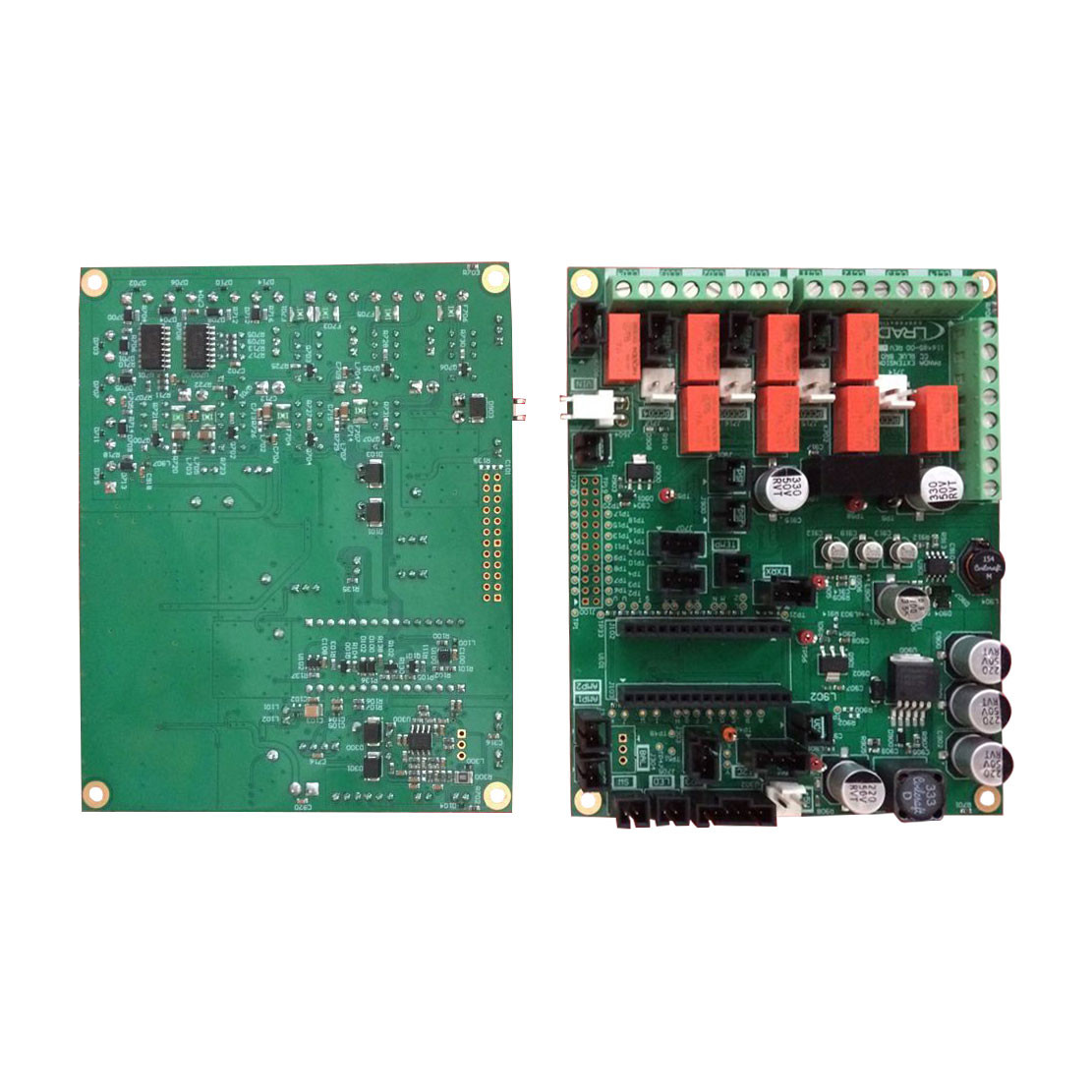

Min Laser Aperture 0.075mm Quick Turn PCB Assembly Service OEM ODM
Satisfied Services
1. 7/24 Sales and technical support
2. Felxible payment methods and negotiable payment terms
3. Both samples and bulk orders are supported
4. More than 10 years overseas export experience, flexible handling of transportation and customs clearance issues
Strengths of CESGATE
Technical Requirement for PCB Assembly
Specification
| NO. | Items | Capabilities |
| 1 | Layers | 2-68L |
| 2 | Maximum machining size | 600mm*1200mm |
| 3 | Board thickness | 0.2mm-6.5mm |
| 4 | Copper thickness | 0.5oz-28oz |
| 5 | Min trace/space | 2.0mil/2.0mil |
| 6 | Minimum finished aperture | 0. 10mm |
| 7 | Maximum thickness to diameter ratio | 15:1 |
| 8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
| 9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| 11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
| 12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| 13 | Profiling Punching | Routing,V-CUT,Beveling |
| 14 | Bow&twist | ≤0.5% |
| 15 | HDI type | 1+n+1,2+n+2,3+n+3 |
| 16 | Min mechanical aperture | 0.1mm |
| 17 | Min laser aperture | 0.075mm |
Company Descripiton
CESGATE with customers to provide them with the highest-quality PCB and PCB Assembly service electronic manufacturing services to achieve their goals. Our flexibility is in meeting customer requirements and our superior customer service. We help companies introduce their new products to market in the fastest time possible by providing high quality, quick-turn assembly. We provide one-stop electronic manufacturing service to help you qualify your designs and provide quality samples to your customers.
FAQ
| Q: What service do you have? CESGATE: We provide one-stop solutions including PCB manufacturing, SMT, component sourcing, final assembly, testing and other services. |
| Q: What is needed for PCB & PCB Assembly quotation? CESGATE: For PCB: Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness) and quantity you need. For PCB Assembly: Files mentioned above, BOM, pick and place file. |
| Q: Are my files safe? CESGATE: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties. If requested by the client, we will sign an NDA subject to local laws on the client's side and promise to keep client data highly confidential. |
| Q: What are the main products of your PCB/PCB Assembly services? CESGATE: Automotive, Military, Aerospace, Industry Control, Medical care, IOT, Smart Home, Robot, Auto parts, Camera, UAV. |
