| Product Name: | Custom Size & Shape Metal Stamping RF PCB Board Printed Circuit Board Assembly | Board Thickness: | 1.6mm, 0.2-6.0mm, 0.4~3mm, 0.4mm-3.2mm, / |
|---|---|---|---|
| PCB Assembly: | Process: Circuit Board-SMD-DIP-assembly | Board Size:: | 78x102mm |
| Logo Option:: | Silk Print, Laser, Stamped,etching | Material:: | Copper-nickel-zinc / Tinplate/ Stainless Steel |
| Product Name:: | EMI Shielding Can / RF Shield Can / Shield Case | ||
| High Light: | Copper nickel zinc Printed Circuit Board,Silk print immersion tin pcb,Copper nickel zinc immersion tin pcb |
||

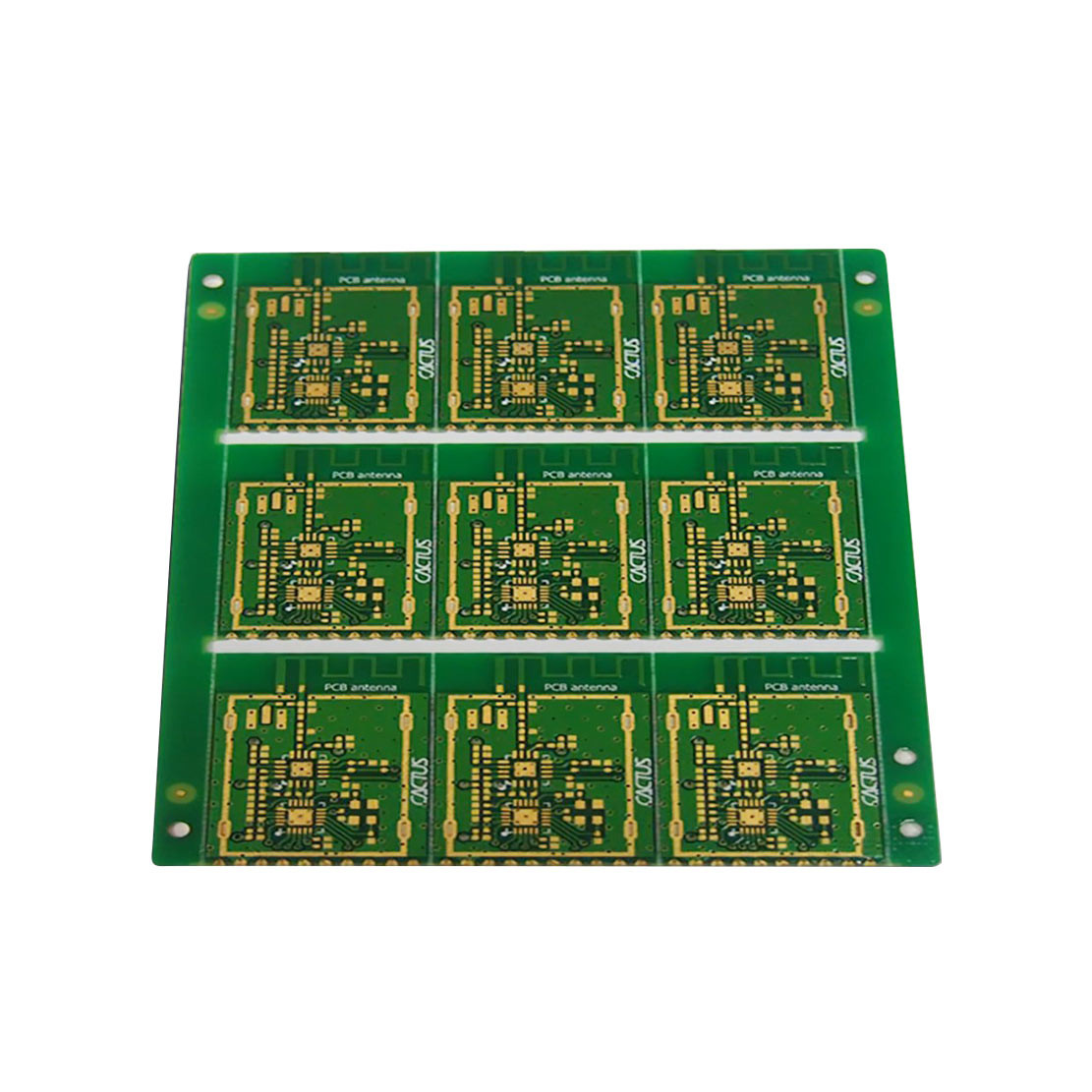

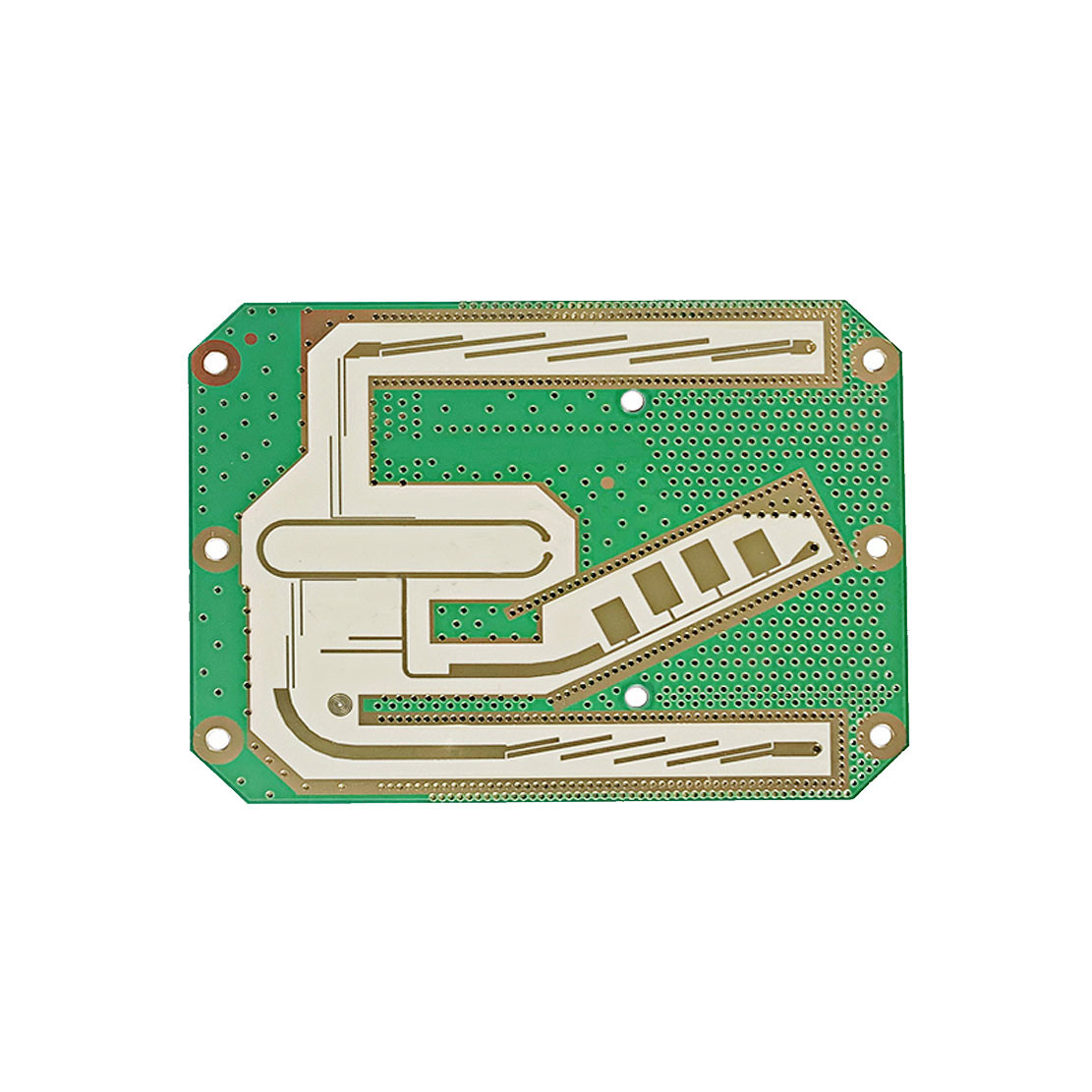

Custom Size & Shape Metal Stamping RF PCB Board Printed Circuit Board Assembly
Metal Core PCB Manufacturing Customized PCB Rigid Printed Circuit Boards
CESGATE's products are widely used in consumer electronics, computers, communication engineering, power technology, industrial control, security monitoring, medical equipment, instrumentation, automotive electronics, military aerospace, artificial intelligence, LED lighting and display screens. CESGATE's products have been exported to Europe, America and Asia, serving more than 200 countries around the world and serving more than 100,000 users.
What CESGATE provide:
Lighting application:
The printed circuit board provides a universal base for a variety of high output LED applications. LED lighting solutions are rapidly evolving across industries where low power consumption, high efficiency and impressive light output are important.
1. Computer Technology Industry: PCB-based LEDs are becoming more common in the computer technology industry, commonly found in desktop and laptop monitors and indicators. Due to the thermal sensitivity of computer technology, aluminum-based PCBs are particularly suitable for LED lighting applications within computers.
2. Medical industry: Lighting tools are very important In medical applications, especially in surgical and emergency applications, large light can help improve the visibility of doctors. In these applications, LEDs are often the lighting method of choice for their power and small size. PCBs are often used as the basis for these applications, especially aluminum PCBs, which have a longer lifespan and offer better heat transfer capabilities than other RF PCB board types. In this way, RF PCB board LEDs ensure durable medical devices that can be reused in a variety of medical settings.
3. Residential and Storefront Applications: In addition to the uses listed above,RF PCB board LEDs are gaining popularity in homes and businesses in the form of signage and displays. Smart LED lighting is an inexpensive way for homeowners to effectively light their homes, and customizable LED displays can direct business to storefronts.
PCB Capacities and Technical Specification
| NO. | Items | Capabilities |
| 1 | Layers | 2-68L |
| 2 | Maximum machining size | 600mm*1200mm |
| 3 | Board thickness | 0.2mm-6.5mm |
| 4 | Copper thickness | 0.5oz-28oz |
| 5 | Min trace/space | 2.0mil/2.0mil |
| 6 | Minimum finished aperture | 0. 10mm |
| 7 | Maximum thickness to diameter ratio | 15:1 |
| 8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
| 9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
| 11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
| 12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
| 13 | Profiling Punching | Routing,V-CUT,Beveling |
| 14 | Bow&twist | ≤0.5% |
| 15 | HDI type | 1+n+1,2+n+2,3+n+3 |
| 16 | Min mechanical aperture | 0.1mm |
| 17 | Min laser aperture | 0.075mm |
Advanced PCB Manufacturing and PCB Assembly Equipment
CESGATE has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.
| Q: Can we inspect quality during production? CESGATE: Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house. |
| Q: What is needed for PCB & PCBA quotation? CESGATE: For PCB: Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness) and quantity you need. For PCBA: Files mentioned above, BOM, pick and place file. |
