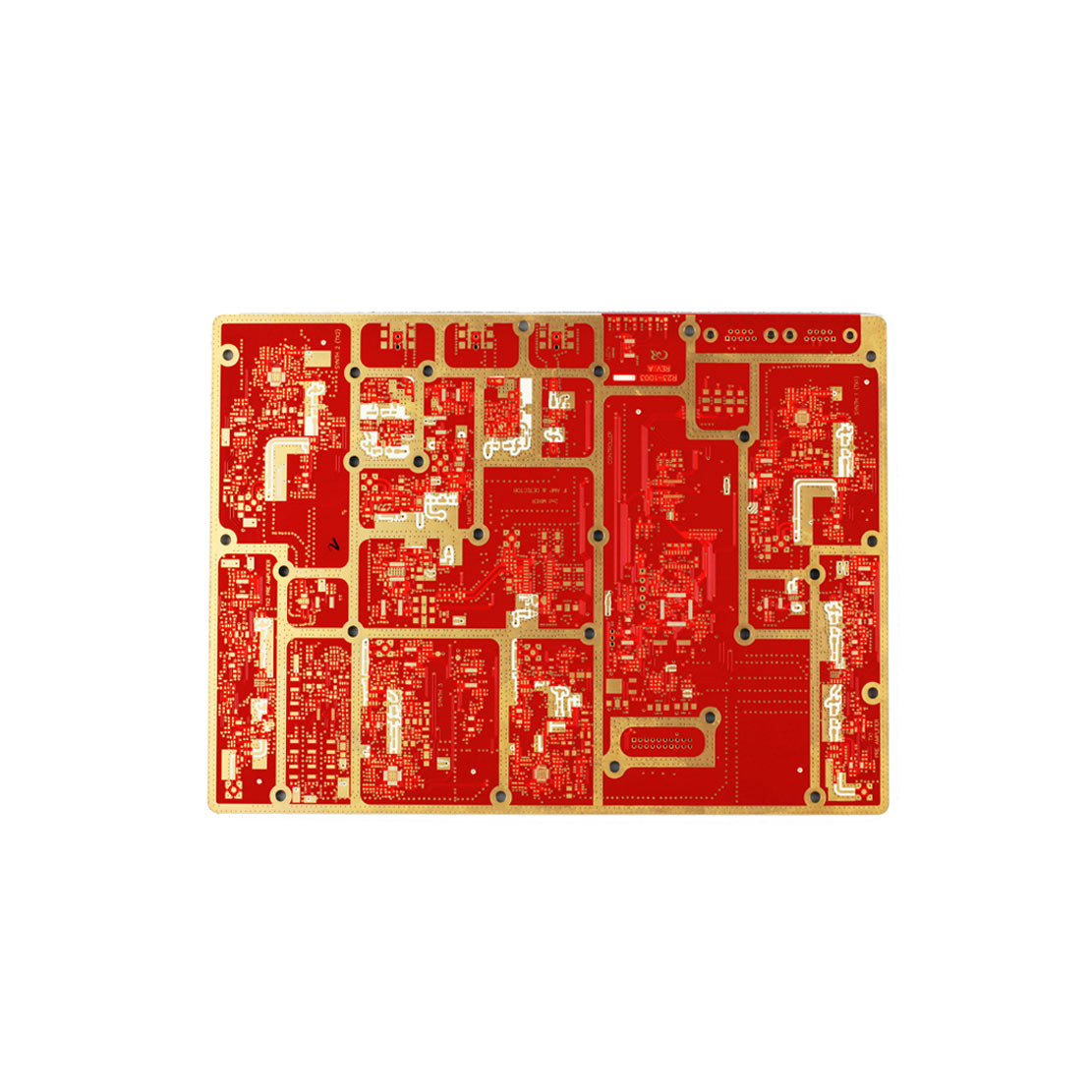

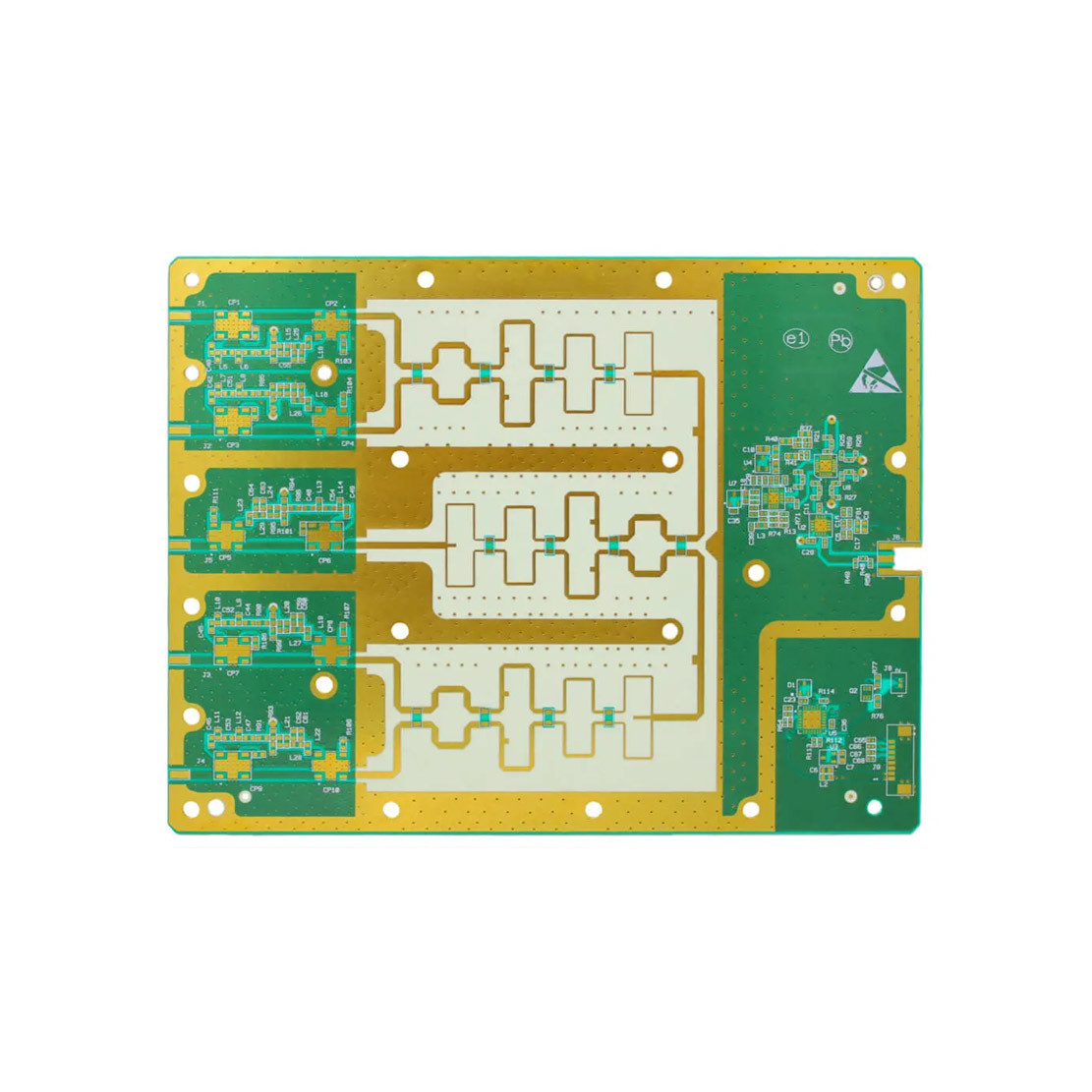

Tinplate RF PCB Board Radio Frequency Circuit Board 78*102mm

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL、IATF16949、ISO9001
Model Number: N/A
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Reverse Engineering Service Auto Clone RF PCB Board Custom Size Stamping Board Thickness: 1.6mm, 0.2-6.0mm, 0.4~3mm, 0.4mm-3.2mm, /
PCB Assembly: Process: Circuit Board-SMD-DIP-assembly Board Size:: 78x102mm
Logo Option:: Silk Print, Laser, Stamped,etching Material:: Copper-nickel-zinc / Tinplate/ Stainless Steel
Product Name:: EMI Shielding Can / RF Shield Can / Shield Case
High Light:

Tinplate RF PCB Board 78*102mm

,

Tinplate radio RF PCB Board 78*102mm

,

radio frequency circuit board 78*102mm

Reverse Engineering Service Auto Clone RF PCB Board Custom Size Stamping





Metal Core PCB Manufacturing Customized PCB Rigid Printed Circuit Boards



CESGATE's products are widely used in consumer electronics, computers, communication engineering, power technology, industrial control, security monitoring, medical equipment, instrumentation, automotive electronics, military aerospace, artificial intelligence, LED lighting and display screens. CESGATE's products have been exported to Europe, America and Asia, serving more than 200 countries around the world and serving more than 100,000 users.



What CESGATE provide:





Lighting application:



The printed circuit board provides a universal base for a variety of high output LED applications. LED lighting solutions are rapidly evolving across industries where low power consumption, high efficiency and impressive light output are important.

1. Computer Technology Industry: PCB-based LEDs are becoming more common in the computer technology industry, commonly found in desktop and laptop monitors and indicators. Due to the thermal sensitivity of computer technology, aluminum-based PCBs are particularly suitable for LED lighting applications within computers.
2. Medical industry: Lighting tools are very important In medical applications, especially in surgical and emergency applications, large light can help improve the visibility of doctors. In these applications, LEDs are often the lighting method of choice for their power and small size. PCBs are often used as the basis for these applications, especially aluminum PCBs, which have a longer lifespan and offer better heat transfer capabilities than other RF PCB board types. In this way, PCB LEDs ensure durable medical devices that can be reused in a variety of medical settings.
3. Residential and Storefront Applications: In addition to the uses listed above, RF PCB board LEDs are gaining popularity in homes and businesses in the form of signage and displays. Smart LED lighting is an inexpensive way for homeowners to effectively light their homes, and customizable LED displays can direct business to storefronts.





PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm




Advanced PCB Manufacturing and PCB Assembly Equipment



CESGATE has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.
