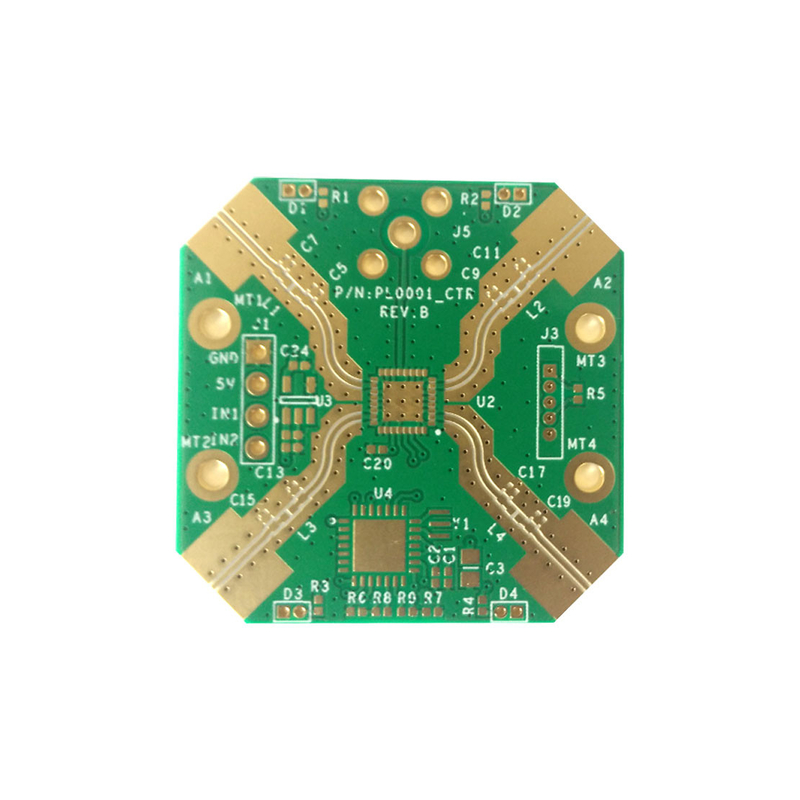

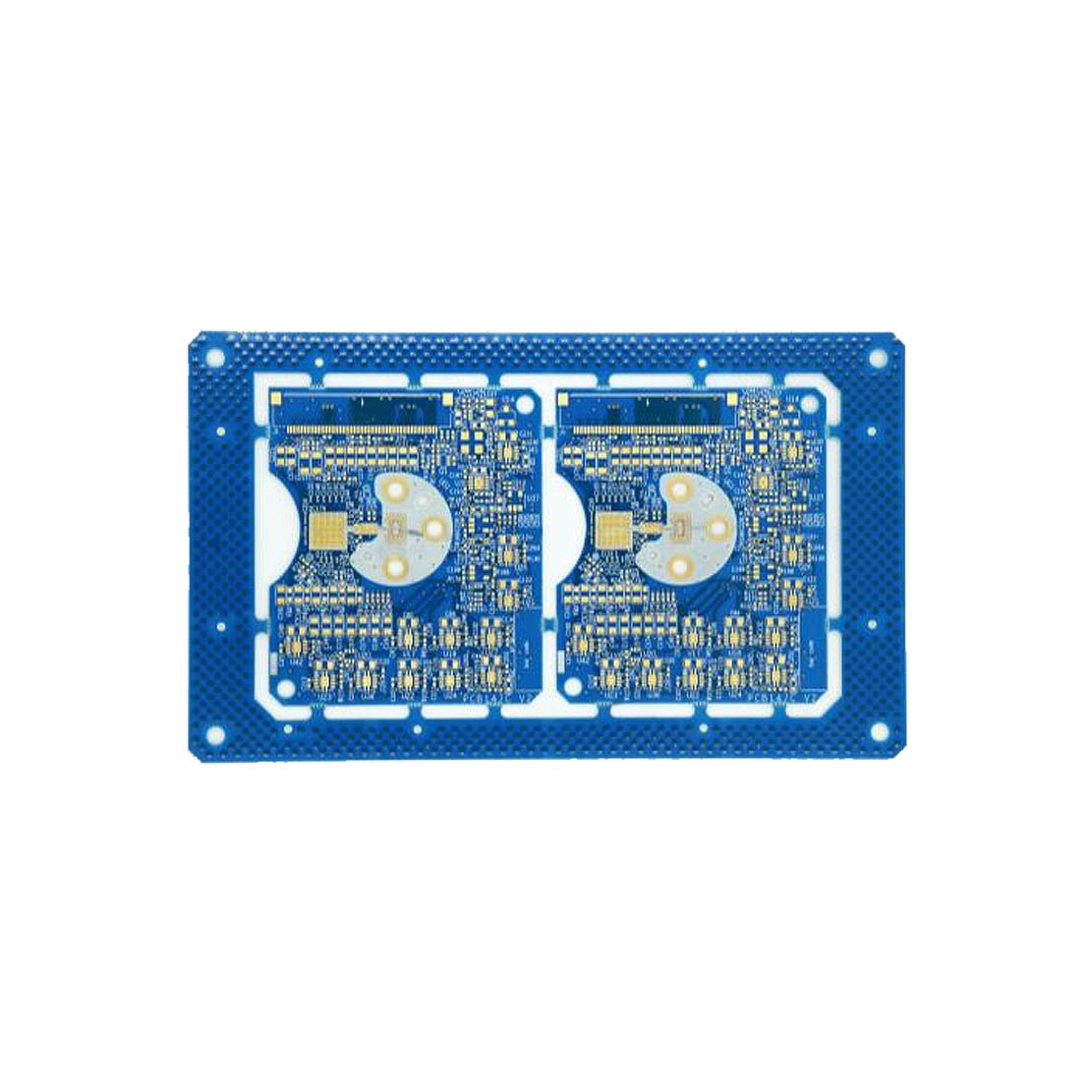

C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL、IATF16949、ISO9001
Model Number: N/A
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR Base Material: FR-4, CEM-1, CEM-1 OR FR-4, FR4/ROGERS/PET/HDI/CEM/PI, Aluminium
Board Thickness: 1.6mm, 0.2-6.0mm, 0.4~3mm, 0.4mm-3.2mm, / Solder Mask Color: Green Black Red, Blue.green.red.black.white.etc, Black.Red.Yellow.White.Blue.Green
Model Number:: XY-0000088 Surface Treatment:: Chrome Plating
Certification:: UL,SGS, MSDS, CE, ISO9001,ROHS,REACH, CQC,TUV, PAHS,PFOS,PFOA Terms Of Trade:: EXW,FOB,CIF,CPT Ect
High Light:

1.6mm Amplifier RF PCB Board FR408

,

1.6mm Amplifier RF PCB Board FR408HR

,

1.6mm Amplifier RF PCB FR408HR

C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR





Metal Core PCB Manufacturing Customized PCB Rigid Printed Circuit Boards



CESGATE with customers to provide them with the highest-quality PCB and PCBA electronic manufacturing services to achieve their goals. Our flexibility is in meeting customer requirements and our superior customer service. We help companies introduce their new products to market in the fastest time possible by providing high quality, quick-turn assembly.We provide one-stop electronic manufacturing service to help you qualify your designs and provide quality samples to your customers.



What CESGATE provide





Consumer electronics products



Consumer electronics are devices we use every day, such as smartphones or computers. Even the latest model refrigerators often contain electronic components. Each of these devices is a RF PCB.
Since these consumer electronics products are manufactured in high volumes, the number of RF PCB board that control them must be equal. These high-volume PCBs have lower unit costs, making the price of the final product relatively small. The challenge is to maintain the uniformity and quality of these PCBs, which is why RF PCB manufacturers must adhere to strict industry standards and quality control measures to ensure that each consumer's electronics function as expected.
RF PCB board are widely used in consumer electronics. Here are some common uses of PCBs in consumer electronics:
1. Mobile Devices: Smartphones and tablets are at the heart of our daily work, our GPS alarm clocks.
2. Computer Electronics: Both desktop and laptop computers contain the RF PCB boardat their core, as do the screen and the peripherals associated with it.
3. Recording Devices: Camcorders, digital cameras, microphones, and other recording devices all rely on their internal PCBs to function.



PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm




Advanced PCB Manufacturing and PCB Assembly Equipment



CESGATE has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.



C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR 0C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR 1C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR 2C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR 3C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR 4C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR 5C SUN Exposure Machine 1.6mm Amplifier RF PCB Board FR408 FR408HR 6

FAQ

Q: How can we ensure our information should not let third party to see our design?
CESGATE: We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q: Do you have any other services?
CESGATE: We mainly focus on the procurement services of PCB + assembly + components. In addition, we can also provide programming, testing, cable, housing assembly services..
Q: What is your inspection policy? How do you control the quality?
CESGATE: In order to ensure the quality of PCB products, flying probe inspection is usually used; electrical fixtures, automatic optical inspection (AOI), BGA parts x-ray inspection, first article inspection ( FAI) etc.
Q: MOQ?
CESGATE: There is no MOQ in POE. We are able to flexibly handle small and large batches.
