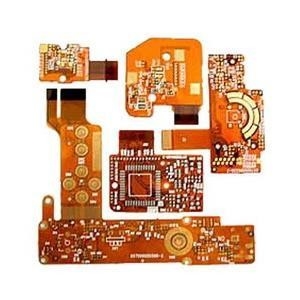

Electronics Device Rigid Flexible Quick Turn 6 Layer PCB Board

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL、IATF16949、ISO9001
Model Number: N/A
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Copper Thicknes: 1oz, 0.5oz-8oz, 1/3oz ~6oz, 1 Oz, 0.25OZ~12OZ Base Material: FR-4, TACONIC, Aluminum, CEM-3, Metal/ceramic/aluminum Base
Min. Line Spacing: 1.6mm, 0.2-6.0mm, 0.2mm-6.00 Mm(8mil-126mil), 0.5~3.2mm, 1.6 Mm Solder Mask: Green, White Black Green Blue Red, Green Or Other Color As You Want, Green/blue, Green Black Bule White
Application: Electronics Device, Consumer Electronics, Communications, And So On, Universal Solder Mask Color: Green, Blue, White And Red, White Black Yellow Green Red, Purple
Testing Service: 100% Electrical Test, Fly-probe, Function Testing, 100% E-testing, Flying Probe Testing
High Light:

Electronics Device Rigid Flexible PCB

,

Quick Turn 6 Layer PCB Board

,

Quick Turn 6 Layer PCB Board

Quick Turn Customized Aluminium Rigid Flexible RF PCB Board 6 Layer Fabrication





Metal Core PCB Manufacturing Customized PCB Rigid Printed Circuit Boards



CESGATE is an OEM manufacturer that focus on RF PCB Board manufacturing & PCB Assembly over 20 years. We have the capability to manufacture pcb ranging from basic single sided boards up to 48 layer multilayers, and provide one stop turnkey services, including PCB manufacture, PCB assembly, components source, function testing services and housing so on.We always provide high quality, technically advanced products within the customer’s timescales so that we can provide the best electronic services for you.This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.





Briefly Introduce Our Strength







Aerospace applications



Like automotive applications, aerospace applications of RF PCB Board require extreme precision and durability. Jets and rockets often experience a lot of turbulence in the atmosphere, which means that ordinary rigid PCBs can be stressed enough to be damaged in the process. To solve this problem, most aerospace manufacturers use flexible PCBs that, in addition to being resistant to vibration damage, are lightweight and small.


In addition to being durable, aerospace PCBs must be very high-functioning and precise, manufactured to the best of their ability to avoid technical issues. Since the electronics used in aerospace technology are critical to the safety of vehicles and their crews, it is critical that they function flawlessly.


Some of the more common aerospace applications for PCBs include:


1. Monitoring equipment: Instrumentation, including accelerometers, pressure sensors, microphones, and torque and force sensors All use PCBs as part of their basic functions. These products are used in the engines and cockpits of aircraft and rockets to monitor vehicle functions and communicate with ground control systems.


2. Test Equipment: In addition to its function as an aircraft, PCBs are involved in the development and testing of aircraft. Test equipment that collects data during structural, vibration, and flight testing uses a PCB as its core. This data can be used to develop more efficient, efficient and safer aircraft.





PCB Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm




Advanced PCB Manufacturing and PCB Assembly Equipment



CESGATE has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.

Electronics Device Rigid Flexible Quick Turn 6 Layer PCB Board 0Electronics Device Rigid Flexible Quick Turn 6 Layer PCB Board 1Electronics Device Rigid Flexible Quick Turn 6 Layer PCB Board 2Electronics Device Rigid Flexible Quick Turn 6 Layer PCB Board 3Electronics Device Rigid Flexible Quick Turn 6 Layer PCB Board 4Electronics Device Rigid Flexible Quick Turn 6 Layer PCB Board 5Electronics Device Rigid Flexible Quick Turn 6 Layer PCB Board 6

FAQ

Q: What is your minimum order quantity (MOQ)?
CESGATE: Our MOQ is 1 PCS, we are able to handle Small as well as large volume production with flexibility.
Q: Are you factory?
CESGATE: Our factory is located in Building 6, Fuyuan industrial park, Qiaotang road, Fuyong street , Shenzhen city, China
Q: How about the shipping cost?
CESGATE: The Shipping cost depends on the destination, the weight and volume of the goods as well as the quotation of DHL/FEDEX/ freight forwarder at that time. You can inform us of the transportation way you need before placing an order.
Q: How can we guarantee quality?
CESGATE: Always a pre-production sample before mass production;
Always final Inspection and test report before shipment;
Q: Why should we buy from CESGATE?
CESGATE: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow.
Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition. From the design to the complete product, CESGATE's professional team will put you at ease
