PCBA For Medical Breathing Machine Customization PCB Assembly Service

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL, IATF16949, ISO9001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Product Name: PCBA For Medical Breathing Machine Customization PCB Assembly Service Feature: Customization
Min Laser Aperture: 0.075mm HDI Type: 1+n+1、2+n+2、3+n+3
High-end Equipment: FUJI NXT3/XPF Laminator Test: AOI/ X-Ray/Flying-Probe/Function Test
Min. Line Spacing: 0.1mm, 3mil, 0.1um(3mil), 3 Mil (0.075 Mm), 0.1mm/4mil Solder Mask: Green, Red, Blue, Green. Red. Blue. White. Black.Yellow, Yellow
High Light:

Pcb 94v0 Circuit Board Assembly Service

,

Multilayer Pcb Circuit Board Assembly Service

PCBA For Medical Breathing Machine Customization PCB Assembly Service



Ways of PCB Assembly:



Both SMT and DIP are ways of integrating parts on the PCB. The main difference is that SMT does not need to drill holes on the PCB. In DIP, the PIN pins of the parts need to be inserted into the drilled holes.


SMT (Surface Mounted Technology)


Surface mount technology mainly uses the mounter to mount some tiny parts on the PCB. The production process is: PCB board positioning, solder paste printing, mounter placement, reflow oven and finished inspection. With the development of technology, SMT can also mount some large-size parts, for example, some larger-sized mechanical parts can be mounted on the motherboard.


SMT integration is very sensitive to positioning and the size of parts. In addition, the quality of solder paste and printing quality also play a key role.


DIP


DIP is "plug-in", which is to insert parts on the PCB board. Due to the large size of the parts and it is not suitable for placement or the manufacturer's production process cannot use SMT technology, the parts are integrated in the form of plug-ins. At present, there are two implementation methods of manual plug-in and robot plug-in in the industry. The main production process is: sticking back glue (to prevent tin from being plated where it should not be), plug-in, inspection, wave soldering, and brushing (remove the Stains left in the process) and finished inspection.





PCBA For Medical Breathing Machine Customization PCB Assembly Service 0



CESGATE can provide professional PCB assembly / OEM / ODM contract manufacturing services for medical ventilator, including the following types:

1. PCB manufacturing and layout of ventilator

2. Parts procurement

3.PCB assembly (SMT + DIP + programming + test)



CESGATE's advantages:


1. Born from technology, we understand R&D needs.
2. Break through the barriers from design to production.
3. Quality traceable.
4. Fast and on time delivery.



Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Company Profile



CESGATE has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop PCB assembly services, including pcb manufacture, assembly, components sourcing and function testing.With one-stop solution, high-end product structure, professional product development and manufacturing technology, stable quality performance and well management system,
CESGATE has established long-term and stable cooperate relations with the world's leading communication equipment , aerospace electronics and medical equipment manufacturers.

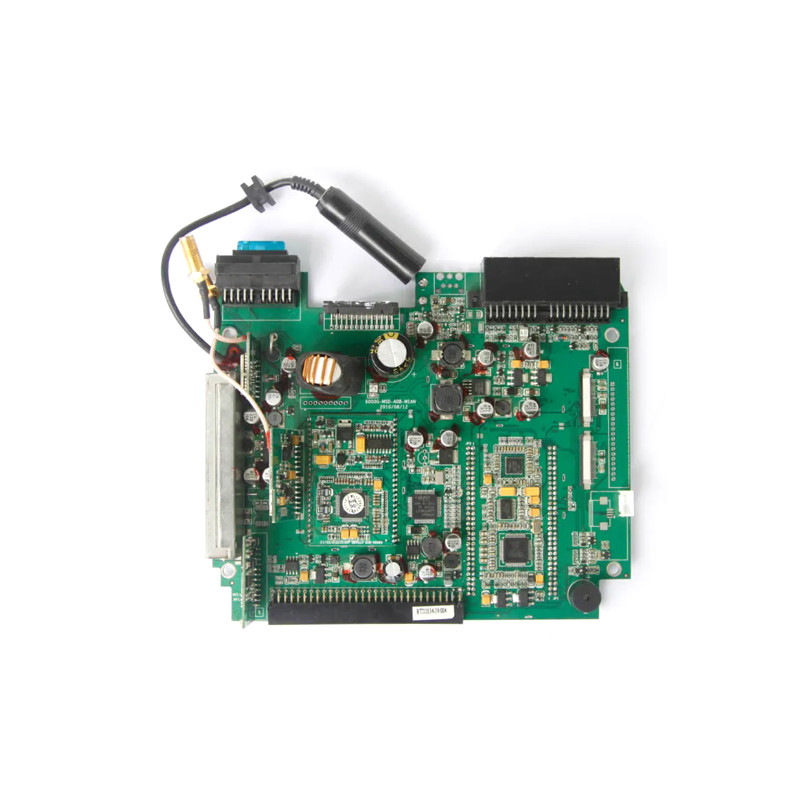

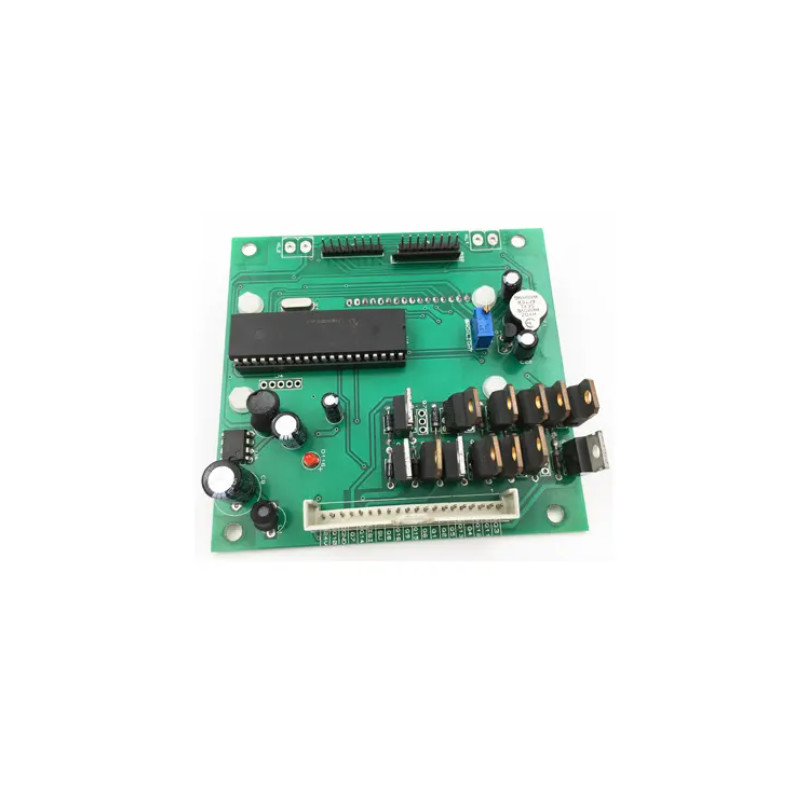

PCBA For Medical Breathing Machine Customization PCB Assembly Service 1PCBA For Medical Breathing Machine Customization PCB Assembly Service 2PCBA For Medical Breathing Machine Customization PCB Assembly Service 3PCBA For Medical Breathing Machine Customization PCB Assembly Service 4



FAQ

Q: What is your minimum order quantity (MOQ)?
CESGATE: Our MOQ is 1 PCS, we are able to handle Small as well as large volume production with flexibility.
Q: Are you factory?
CESGATE: Our factory is located in Building 6, Fuyuan industrial park, Qiaotang road, Fuyong street , Shenzhen city, China
Q: How about the shipping cost?
CESGATE: The Shipping cost depends on the destination, the weight and volume of the goods as well as the quotation of DHL/FEDEX/ freight forwarder at that time. You can inform us of the transportation way you need before placing an order.
Q: How can we guarantee quality?
CESGATE: Always a pre-production sample before mass production;
Always final Inspection and test report before shipment;
Q: Why should we buy from CESGATE?
CESGATE: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow.
Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition. From the design to the complete product, CESGATE's professional team will put you at ease
