6 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: ISO9001/ ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Features: 6 Layer PCB Product Name: 6 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board
Pad(ring): Min Pad Size For Laser Drillings, Min Pad Size For Mechanical Drillings, Min BGA Pad Size, Pad Size Tolerance Min. Line Spacing: 4mil, 0.003", 0.1mm4mil), 0.1mm, 4/4mil(0.1/0.1mm)
Min. Line Width: 4mil, 0.1mm, 0.1mm/4mi, 0.075mm/0.075mm(3mil/3mil), 3mi Min. Hole Size: 0.2mm, 8 Mil, 0.10mm, 3mil (0.075mm), 0.004"
Micro Machining Or Not: Micro Machining Withstand Voltage: 1500V AC/Minute
High Light:

Allegro PCB Prototype Service

,

Cs02 Tcode PCB Prototype Service

6 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board





PCB Application - Multilayer Board
Multi-layer board: The required circuits are made on the front and back surfaces of multiple double-sided boards, and an insulating layer (Prepreg) is sandwiched between the two double-sided boards and then pressed together to form several layers of copper. The construction of the wire is usually an even number of layers due to the use of multiple double-sided laminates. The number of copper wires that can be made by multi-layer boards is the largest, and it is used in more complex circuits. At present, the motherboards used in computers mostly use eight-layer boards because of too many components. Generally, small electronic products, such as mobile phones, tablet computers, etc. Due to the requirement of small size, at least an eight-layer board is required. The more electronic components, the smaller the product size, and usually more layers of PCB prototype service are required.

1. Material
FR-4 (glass fiber epoxy resin substrate) is the most widely used material in the global electronics industry. FR is a code name for a flame-resistant material grade, which means a material specification that the resin material must be able to self-extinguish after burning. It is not a material name, but a material grade, so there are many types of FR-4 grade materials currently used in general circuit boards, but most of them are four-functional epoxy resin plus filler (Filler) and glass fiber. The composite material made. In recent years, due to the development of electronic product installation technology and PCB technology, FR-4 products with high Tg have appeared again. Tg degree (glass transition temperature - Glass Transition Temperature)

Example: ISOLA FR402, FR408, 370HR South Asia NP-140, NP-155, NP-175

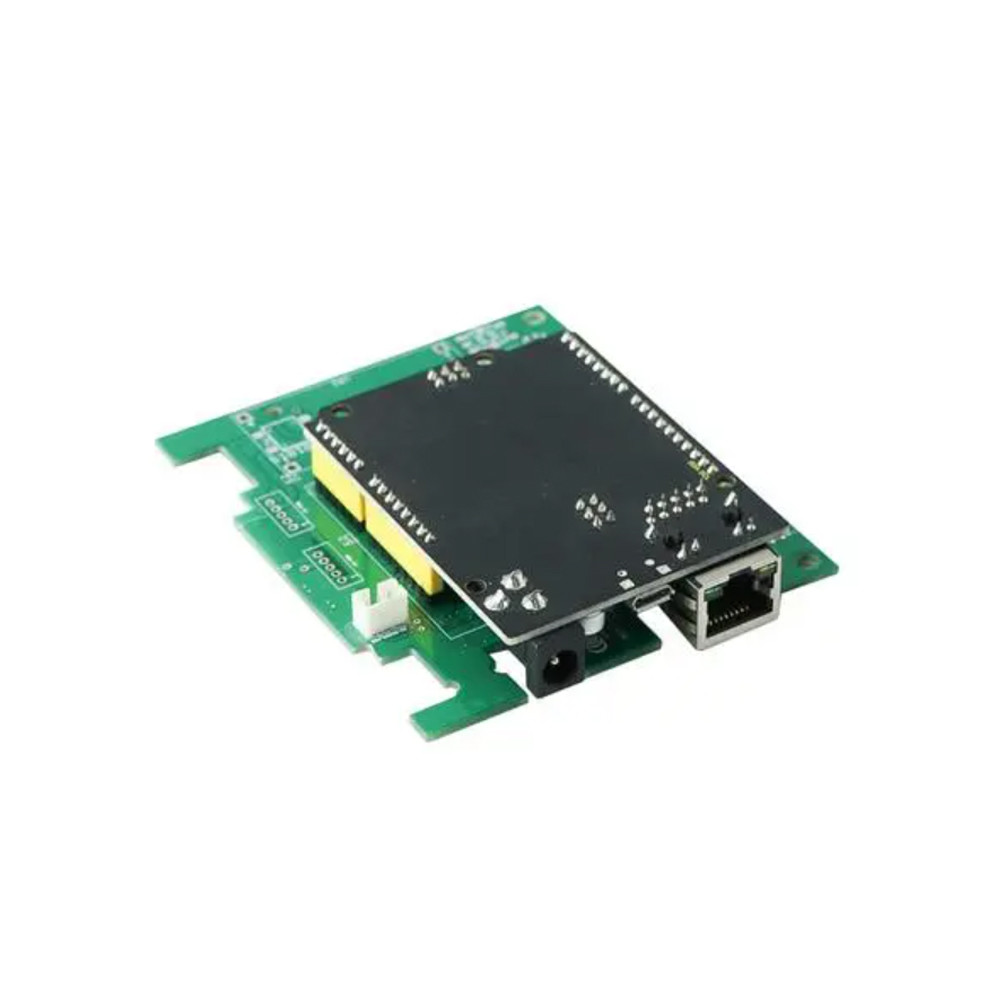

6 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board 0

Solder resist application in PCB assembly service

Areas that should not be soldered may be covered with solder resist (solder mask). The solder mask is what gives PCBs their characteristic green color, although it is also available in several other colors, such as red, blue, purple, yellow, black and white. One of the most common solder resists used today is called "LPI" (liquid photoimageable solder mask).[48] A photo-sensitive coating is applied to the surface of the PWB, then exposed to light through the solder mask image film, and finally developed where the unexposed areas are washed away. Dry film solder mask is similar to the dry film used to image the PWB for plating or etching. After being laminated to the PWB surface it is imaged and developed as LPI. Once but no longer commonly used, because of its low accuracy and resolution, is to screen print epoxy ink. In addition to repelling solder, solder resist also provides protection from the environment to the copper that would otherwise be exposed.



PCB Prototype Service Capacities and Technical Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm


Who are we?

Small to medium volume PCB manufacturer
Multi PCB types manufacturer
EMS/PCBA/OEM customers reliable PCB partner
Trustworthy supplier for PCB trading companies
Powerful Factory, Quality First .
10 years PCB prototype service Manufacturer Experience .
Advanced Automation Production Facilities.
ISO9001, ISO14001 And UL Certified.

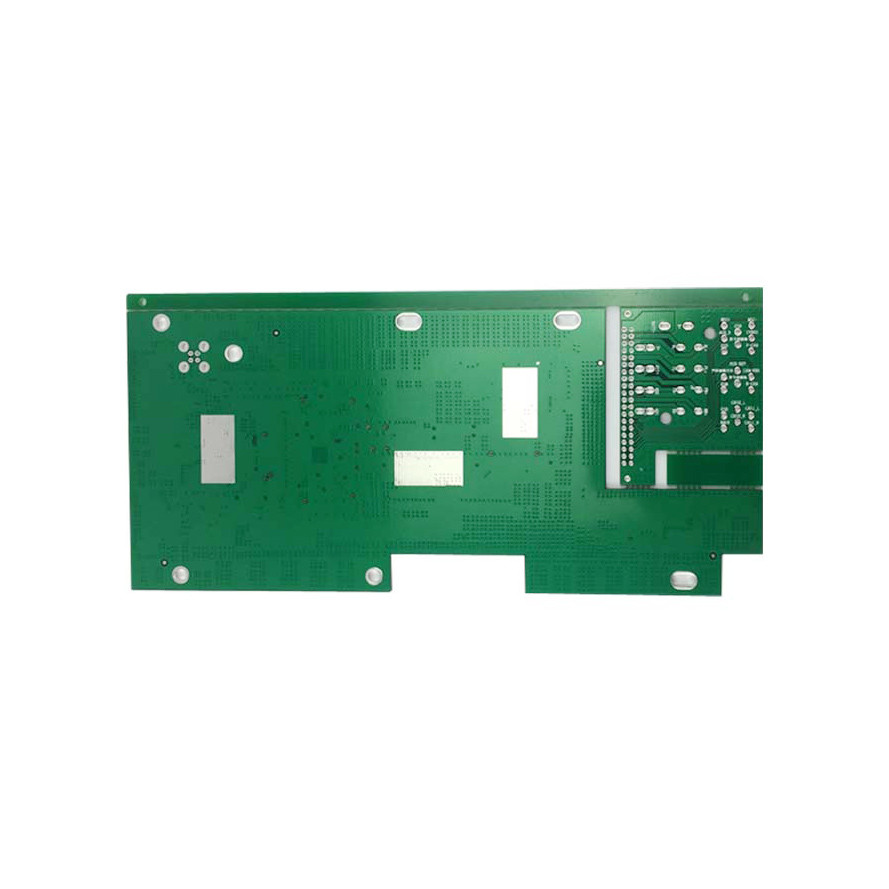

6 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board 16 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board 26 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board 36 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board 4

6 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board 56 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board 6

6 Layer Through Hole PCB Prototype Service Active Rogers Fr4 Circuit Board 7



FAQ

Q: What certificates do you have?
CESGATE: We have ISO 9001, ISO14001 and UL certificates.
Q: How can we ensure our information should not let third party to see our design?
CESGATE: We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q: What are the main products of your PCB/PCBA services?
CESGATE: Our PCB/PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering/Measurements, Consumer Electronics.
Q: What does CESGATE need for a customized PCBA order?
CESGATE: When you place a PCBA order, you need to provide Gerber or pcb file and the BOM list to us.
Q. What file formats do you accept for production?
CESGATE: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
