Place of Origin: | China |
---|---|
Brand Name: | CESGATE |
Certification: | UL, IATF16949, ISO9001 |
Model Number: | NA |
Minimum Order Quantity: | 1PCS( NO MOQ) |
Price: | Negotiable (Depends on your GERBER and BOM) |
Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
Delivery Time: | 3-7 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 13kk soldering spot/day |
Product Name: | Rigid Flex Main PCBA Soldering Layout Surface Mount Resistor Smd Machines | Feature: | Surface Mount |
---|---|---|---|
High-end Equipment: | FUJI NXT3/XPF Laminator | Material: | FR4/M4/M6/Rogers/TU872/IT968 |
Lead Time: | 3-7 Working Days | Test: | AOI/SPI/XRAY/First Article Inspection |
X-ray: | Supported | Number Of I/O: | IC, SPI, UART/USART |
High Light: | Easyeda Arduino Main PCBA,Main PCBA Adafruit Breadboard |

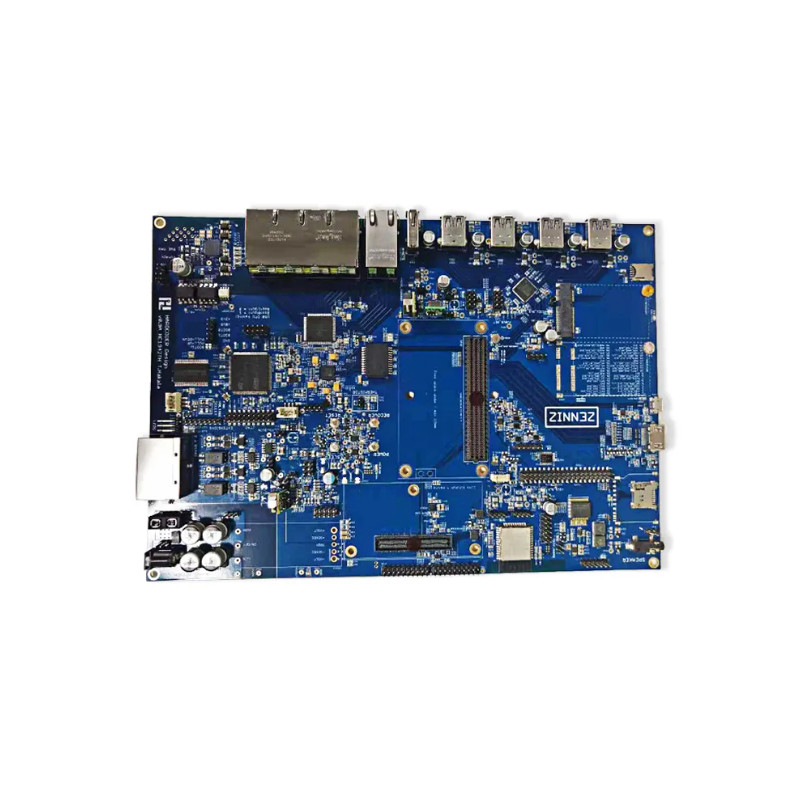

Rigid Flex Main PCBA Soldering Layout Surface Mount Resistor Smd Machines
Main PCBA Application - Multilayer Board
Multi-layer board: The required circuits are made on the front and back surfaces of multiple double-sided boards, and an insulating layer (Prepreg) is sandwiched between the two double-sided boards and then pressed together to form several layers of copper. The construction of the wire is usually an even number of layers due to the use of multiple double-sided laminates. The number of copper wires that can be made by multi-layer boards is the largest, and it is used in more complex circuits. At present, the motherboards used in computers mostly use eight-layer boards because of too many components. Generally, small electronic products, such as mobile phones, tablet computers, etc. Due to the requirement of small size, at least an eight-layer board is required. The more electronic components, the smaller the product size, and usually more layers of Main PCBA are required.
1. Material
FR-4 (glass fiber epoxy resin substrate) is the most widely used material in the global electronics industry. FR is a code name for a flame-resistant material grade, which means a material specification that the resin material must be able to self-extinguish after burning. It is not a material name, but a material grade, so there are many types of FR-4 grade materials currently used in general circuit boards, but most of them are four-functional epoxy resin plus filler (Filler) and glass fiber. The composite material made. In recent years, due to the development of electronic product installation technology and Main PCBA technology, FR-4 products with high Tg have appeared again. Tg degree (glass transition temperature - Glass Transition Temperature)
Example: ISOLA FR402, FR408, 370HR South Asia NP-140, NP-155, NP-175
What CESGATE provide in Main PCBA?
1. Reasonable and competitive price
2. Provide component selection service for customers, including alternative component selection service for out of stock components
3. Expedited service is supported for those urgent orders
4. Complete after-sales services
Specification
NO. | Items | Capabilities |
1 | Layers | 2-68L |
2 | Maximum machining size | 600mm*1200mm |
3 | Board thickness | 0.2mm-6.5mm |
4 | Copper thickness | 0.5oz-28oz |
5 | Min trace/space | 2.0mil/2.0mil |
6 | Minimum finished aperture | 0. 10mm |
7 | Maximum thickness to diameter ratio | 15:1 |
8 | Via treatment | Via, blind&buried via, via in pad, Copper in via … |
9 | Surface finish/treatment | HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
10 | Base Material | FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350, Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4) |
11 | Solder mask color | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black |
12 | Testing Service | AOI, X-Ray, Flying-Probe, Function Test, First Article Tester |
13 | Profiling Punching | Routing,V-CUT,Beveling |
14 | Bow&twist | ≤0.5% |
15 | HDI type | 1+n+1,2+n+2,3+n+3 |
16 | Min mechanical aperture | 0.1mm |
17 | Min laser aperture | 0.075mm |
Advantages of CESGATE:
1. Professional component certification engineer
2. Perfect IQC inspection system
3. Assist in improving customer BOM accuracy
4. Solve the problem of R&D samples
5. Professional supply chain team support
6. R&D procurement can also enjoy VIP customer service
FAQ
Q: Can your company provide the serial number when making circuit board text? CESGATE: Serial numbers can be provided, and in addition to text serial numbers, QR-CODE can also be provided for customers to query. |
Q: The lead-free process is required when the circuit board is printed. What should I pay attention to when making the circuit board? CESGATE: The lead-free process during printing is higher than the temperature resistance requirements of the general process, and the temperature resistance requirements must be above 260 °C. Therefore, it is recommended to use a substrate above TG150 when selecting the substrate material. |
Q: What is your delivery date? CESGATE: The general sample delivery time is 6 working days for single and double-sided boards, 7 working days for 4-layer boards, and an additional working day for every 2 layers. However, if there are special processes, additional working days will be added according to the situation. Generally, the delivery time for mass production is 10 working days for single and double-sided panels, and 15 working days for multi-layer panels. However, if there is a special process or more than a certain number of working days, the working days will be additionally increased according to the situation; you can also pay the urgent fee to shorten the number of days, please contact Contact the business specially proposed, depending on the individual situation to provide expedited days. |
Q: Why choose us? CESGATE: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow. Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition. |
