Thermal Profile Prototype Motherboard FR4 Rogers Turnkey PCB Assembly Fast Turn

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL、IATF16949、ISO9001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk solding spot/day
Product Name: Thermal Profile Prototype Motherboard FR4 Rogers Turnkey PCB Assembly Fast Turn Feature: Fast Turn
SMT Production Line: 14 High-end Equipment: FUJI NXT3/XPF Laminator
Material: FR4/M4/M6/Rogers/TU872/IT968 Item: Keyboard Pcb Assembly, PCBA For Electronic Project, Cheap Turnkey Prototype Pcb Circuit Board Assembly Provider, Custom Circuit Board, 2 Layer Pcb
Surface Finishing: HASL, ENIG, OSP, HASL Lead Free, Immersion Gold Service: One-stop Turnkey Service, PCB/Components Sourcing/Soldering/Progamming/Testing.., PCB PCBA, SMT DIP Components Purchase, EMS.ODM.OEM
High Light:

FR4 Rogers Turnkey PCB Assembly

,

Prototype Motherboard Turnkey PCB Assembly

Thermal Profile Prototype Motherboard FR4 Rogers Turnkey PCB Assembly Fast Turn



The full popularity of printed PCB circuit boards is due to their convenience in almost all products. Below are several types of PCBs.


Rigid PCB Boards: These boards are made of fabricated and sturdy materials that are not easily bent or twisted. They are very complex and powerful, with powerful circuits around them. They are easy to handle during repair and maintenance because they are strong and can withstand strong handling. In addition, the components marked on the board are generally clear, and the signal paths are organized.


Flexible Printed Circuit Boards: As the name suggests, these boards are very flexible and are made of the same flexible materials. Flexible PCB boards can be single-sided, double-sided and multi-layered. This design facilitates easy assembly of parts in small or fragile equipment. The flexibility also helps save a lot of space while making the device lighter. These printed PCB boards are best suited for temperature sensitive operating conditions or industrial and related equipment.


Rigid-Flex PCB: This is a combination of rigid and flexible PCBs. These types of PCBs use multi-layer flex circuits connected to two or more rigid boards. They are lightweight and compact to save space, making them ideal for medical and military applications.


High Frequency PCB: This type of board is used for electrical appliances in the frequency range of 500MHz-2GHz. Most frequency sensitive applications, such as microwave and communication systems, use high frequency circuit boards.


Aluminum-Based PCBs: These have aluminum supports for thermal regulation, high rigidity, and low thermal expansion, and are often used in high-power appliances such as LEDs and power supplies.


Printed PCB circuit boards have changed and simplified the use of many appliances, from desktop computers to high-end medical equipment, circuit boards are now everywhere!







Technical Requirement for turnkey pcb assembly



1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206, 0805, 0603 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Turnkey PCB Assembly With CE, FCC, Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Turnkey PCB Assembly Line

7) High density interconnected board placement technology capacity.





CESGATE provide one-stop PCB/PCBA customization services. To meet all of customer's PCB/PCBA requirement is Intech circuit service's goal



To offer good quality PCB/PCBA to our customer, we will do many kind of testing to ensure quality before shipment

Outgoing test to check min PTH Cu thickness, Min surface Cu thickness, ENIG Au data,Ni data, Au layer adhesion testing, soldermask adhesion testing, silkscreen adhesion testing, Thermal stress testing, hardness testing, Twist testing, Bow testing

Microsection testing to check hole Cu thickness, Surface Copper thickness, Wrap copper thickness, Hole Wall Integrity, soldermask thickness and stack up.

E-test to check any open/short circuit.

Thermal Stress Test to avoid any Delamination, Measling and others.

Solderability of PTH to avoid any discolor, Wrinkles, Blisters, Measling, Blow-Hole, Solermask peel off, and soldermask filled in hole-wall incompletely.

Impedance testing, and so on……





Specification



Article Description Capability
Material Laminate materials FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)
0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Max Size of Finish Board 700*460mm
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA

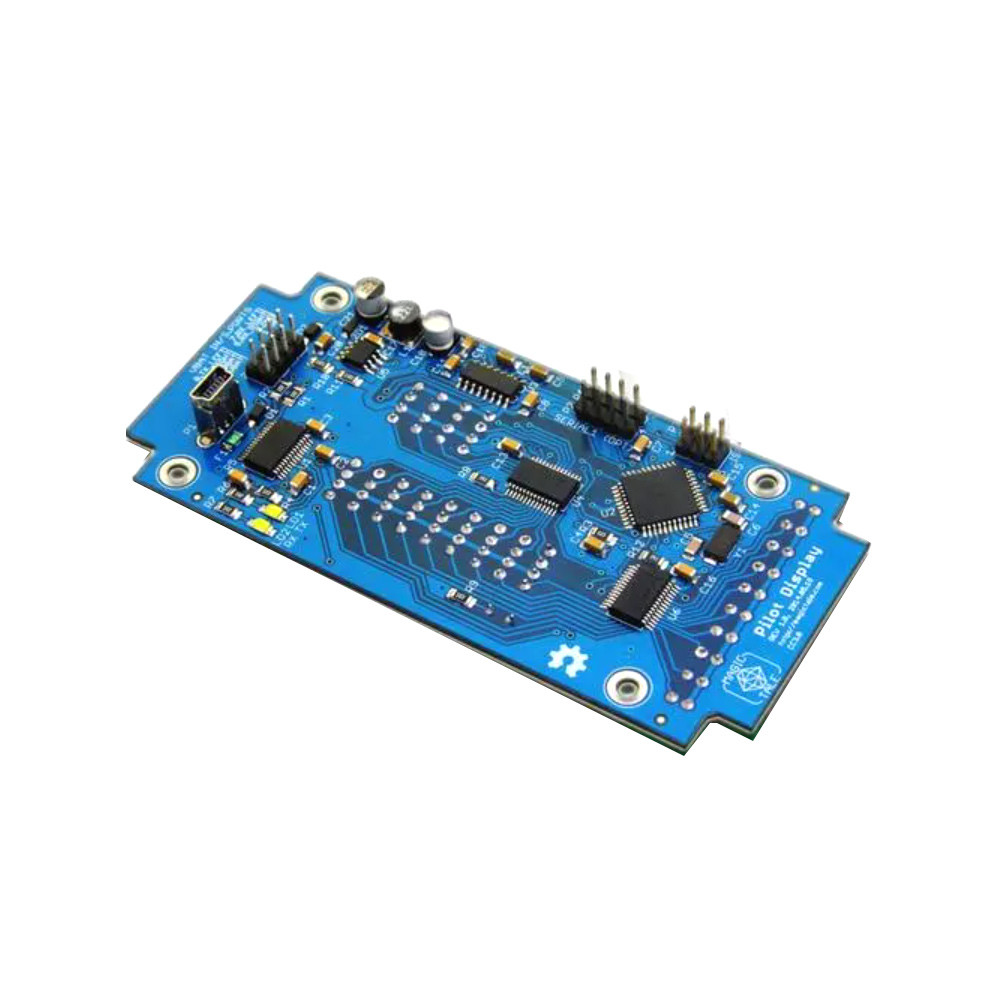

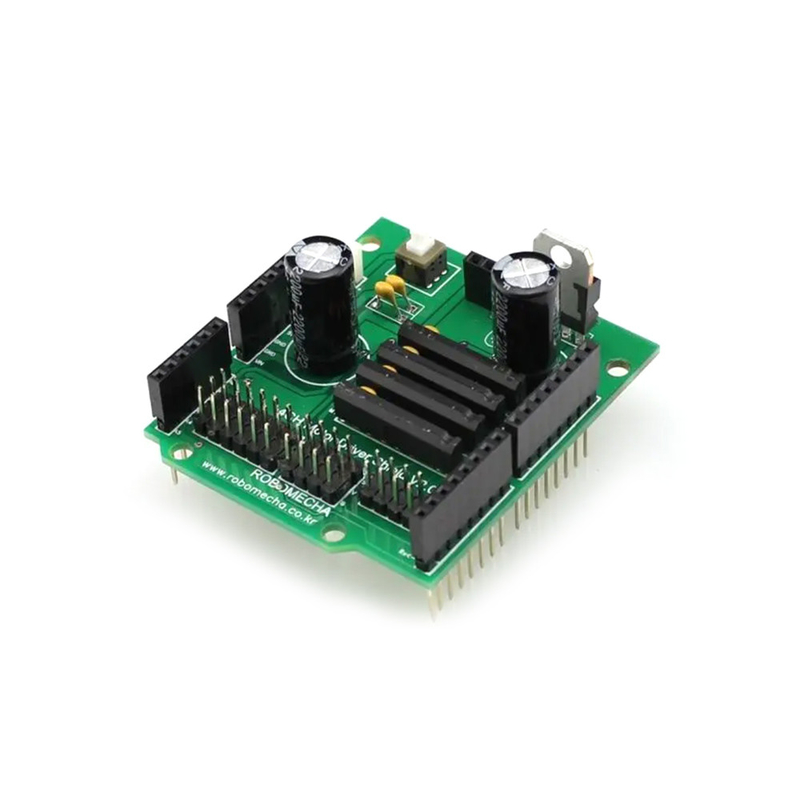

Thermal Profile Prototype Motherboard FR4 Rogers Turnkey PCB Assembly Fast Turn 0Thermal Profile Prototype Motherboard FR4 Rogers Turnkey PCB Assembly Fast Turn 1Thermal Profile Prototype Motherboard FR4 Rogers Turnkey PCB Assembly Fast Turn 2Thermal Profile Prototype Motherboard FR4 Rogers Turnkey PCB Assembly Fast Turn 3





FAQ





Q.Shipping cost?
CESGATE: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q: What certificates do you have?
CESGATE: We have ISO 9001, ISO14001 and UL certificates.
Q: Which express companies do you cooperate with?
CESGATE: We cooperate with express companies, including DHL, FedEX, UPS, TNT and EMS. And we also have our own freight forwarders, with lower shipping fees.
Q: What modes of transport are there?
CESGATE: Usually includes express, air shipment, rail shipment and sea shipment.
Q: Popular field?
CESGATE: Semiconductor, Smart Home, Medical Products, Smart Wearable, Industrial Control, IOT etc.
Q: Can you give us a preferential discount?
CESGATE: Of course, we will offer a preferential discount for your large orders and confirm the order quickly.
