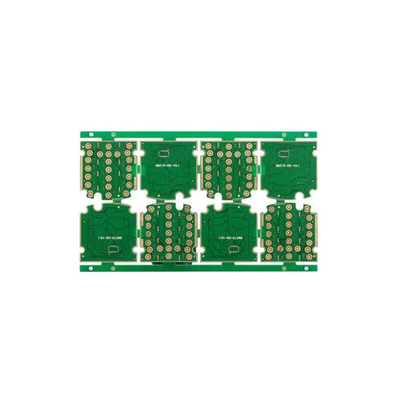

Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL, IATF16949, ISO9001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Product Name: Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001 Feature: Reflow
Min Package: 03015 High-end Equipment: FUJI NXT3/XPF Laminator
Test: AOI/ X-Ray/Flying-Probe/Function Test Base Material: FR-4, Rogers, Aluminum, CEM-1 OR FR-4, FR4/FR1/ FR2/ FR3/ CEM1/ CEM3/ROGERS/ARLON/ISOLA
Min. Hole Size: 0.2mm, 4mil-laser Drill, 6mil, 0.1mm-1mm, 0.15mm Min. Line Width: 3mi, 0.2mm, 0.15mm, 0.1 0mm, 0.075mm/0.075mm(3mil/3mil)
Solder Mask Color: Blue, White Black Yellow Green Red, Green, Yellow, Green Black Bule White
High Light:

Reflow BGA Soldering PCB Assembly Service


ISO14001 PCB Assembly Service

Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001


Technical Requirement for pcb assembly service:


1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206, 0805, 0603 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Assembly service With CE, FCC, Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Assembly Line

7) High density interconnected board placement technology capacity.


Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001 0Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001 1




Like automotive applications, aerospace applications of PCB assembly service require extreme precision and durability. Jets and rockets often experience a lot of turbulence in the atmosphere, which means that ordinary rigid PCBs can be stressed enough to be damaged in the process. To solve this problem, most aerospace manufacturers use flexible PCBs that, in addition to being resistant to vibration damage, are lightweight and small.
In addition to being durable, aerospace PCB assembly service must be very high-functioning and precise, manufactured to the best of their ability to avoid technical issues. Since the electronics used in aerospace technology are critical to the safety of vehicles and their crews, it is critical that they function flawlessly.
Some of the more common aerospace applications for PCB assembly service include:
1. Monitoring equipment: Instrumentation, including accelerometers, pressure sensors, microphones, and torque and force sensors All use PCB assembly service as part of their basic functions. These products are used in the engines and cockpits of aircraft and rockets to monitor vehicle functions and communicate with ground control systems.
2. Test Equipment: In addition to its function as an aircraft, PCB assembly service are involved in the development and testing of aircraft. Test equipment that collects data during structural, vibration, and flight testing uses a PCB as its core. This data can be used to develop more efficient, efficient and safer aircraft.



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm



Company Profile


CESGATE is a team with more than 10 years experience in the field. We owns abundant experiences for serving overseas customers from industrial automatic control, communication, medical, Auto and consumer electronics,etc. We test our product strictly to guarantee the quality to our customers. We accumulate high reputation during our cooperation.You will achieve following value-added services when you cooperate with us:

One-stop PCB/Turnkey PCB Assembly Service
Optimizing your PCB design during production
Satisfied quality with competitive prices
Instant response in both quotation and delivery
Increase your business with our powerful support


Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001 2Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001 3Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001 4Reflow BGA Soldering Prototype PCB Assembly Service ISO 9001 ISO14001 5




CESGATE: Generally, we pack our goods in neutral white boxes and brown cartons.
CESGATE: MOQ is SPQ normally, while it depends on your specific order. (Sample is available if the buyer can afford the shipping fee.)
CESGATE: 1. Our products are all original, and we will test the goods before shipment by professional machines like KEYSIGHT E4991A and KEYSIGHT E4980.
2. If The buyer need Test Report, we can send the product to anthoritative institution such as White horse Laboratories(SZ) Limited,Global Electronics Testing,etc.
CESGATE: 1. We would like to offer sample if the buyer really want to make long-term relationship with us.
2. We keep good quality and competitive price to ensure our customers benefit.
3. We respect customers as our friend and sincerely do business and make friends with them,no matter where they come from.
Q: Do you support fast proofing?
CESGATE: Yes, we support fast proofing within 3-7 days.
