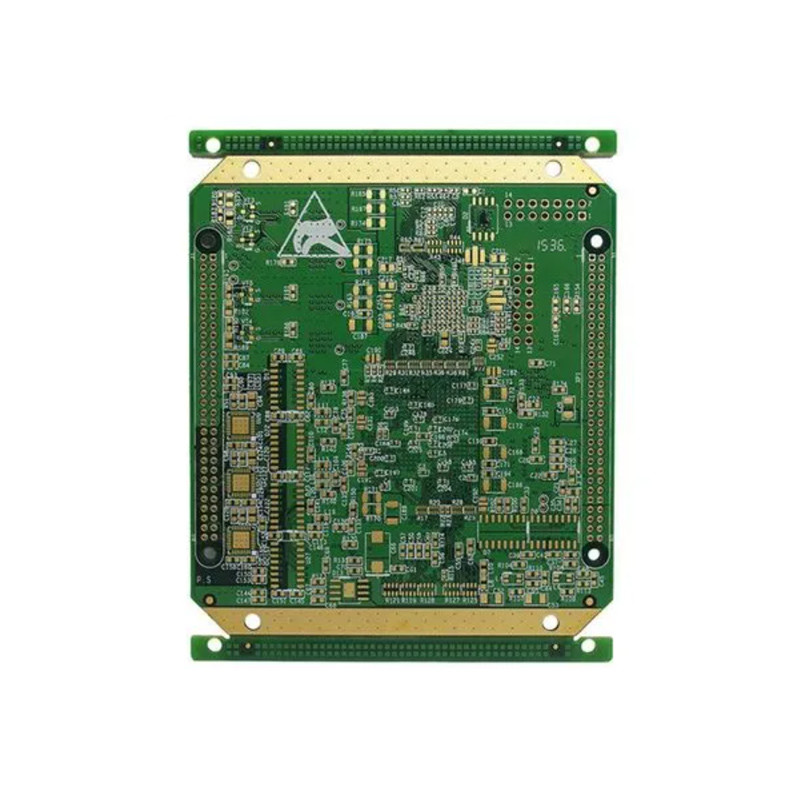

Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: ISO9001/ ISO14001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 1-30 working days
Payment Terms: T/T, L/C
Supply Ability: 30,000pcs/month
Product Name: Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials Feature: Altium Single Layer Mode
Supply Ability: 1000 Unit/Units Per Week Testing Service: 100% AOI Testing/ICT/FCT Test
Service: Full Turnkey Service PCB+Components+Assembly Function: PCBA Board Service Prototype PCB Assembly
Certificate Standard: IPC-A-600H Class 2, Class 3, TS16949,ROHS HDI PCB Standards: IPC-A-610 D
High Light:

Altium Single Layer Mode Multilayer PCB

,

Multilayer PCB Phantom Parts

Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials





Company Introduction



Who are we?

PCB manufacturer located in Chengdu.
Over 300 total staff
25,000sqm production capacity
Advanced automatic production equipments
Offers various kinds multilayer PCBs, small to medium to mass quantity orders
Major markets include domestic China, Asia, Europe and North America
Customers include OEM/ODM factories, PCBA factories, EMS, trading companies





PCB Capabilities

NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Application


Printed circuit boards are mainly composed of insulating substrates and conductors, which play the role of support, interconnection and part of circuit elements in electronic equipment. Electronic components such as integrated circuits, resistors, capacitors, etc. cannot function as a single entity. They only work as a whole if they have a firm foothold on the multilayer PCB and there are conductive junctions connecting them. The multilayer printed circuit board is the skeleton that supports the components and is the conduit for connecting electrical signals. In addition, some printed circuit boards have components such as resistors, capacitors, inductors, etc., which become functional circuits and play the role of trachea.The role of printed circuit boards in electronic equipment is to provide mechanical support for fixing and assembling for transistors, integrated circuits, resistors, capacitors, inductors and other components; to realize the integration of transistors, integrated circuits, resistors, capacitors, inductors and other components. Wiring and electrical connection and electrical insulation between components meet their electrical characteristics; provide identification characters and graphics for the inspection and maintenance of components in the electronic assembly process, and provide solder resist graphics for wave soldering.



Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials 0Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials 1Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials 2Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials 3Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials 4Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials 5Altium Single Layer Mode Multilayer PCB Phantom Parts In Bill Of Materials 6



FAQ





Q: What is your inspection policy? How do you control the quality?
CESGATE: In order to ensure the quality of PCB products, flying probe inspection is usually used; electrical fixtures, automatic optical inspection (AOI), BGA parts x-ray inspection, first article inspection ( FAI) etc.
Q: What does CESGATE need for a customized PCB order?
CESGATE: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products.
Q: Do you have any other services?
CESGATE: We mainly focus on the procurement services of PCB + assembly + components. In addition, we can also provide programming, testing, cable, housing assembly services.
Q. What file formats do you accept for production?
CESGATE: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
