Flying Probe PCB Assembly Service FUJI NXT3 4 Layer PCB Board

Basic Information
Place of Origin: China
Brand Name: CESGATE
Certification: UL, IATF16949, ISO9001
Model Number: NA
Minimum Order Quantity: 1PCS( NO MOQ)
Price: Negotiable (Depends on your GERBER and BOM)
Packaging Details: PCB: Vacuum Packing / PCBA: ESD Packing
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C
Supply Ability: 13kk soldering spot/day
Product Name: SMT Manufacturing High Frequency 2022 PCB Assembly Service Customized Packaging Feature: SMT/High Frequency
Min Package: 03015 Profiling Punching: Routing/V-CUT/Beveling
High-end Equipment: FUJI NXT3/XPF Laminator Board Thickness: 0.2mm-6.5mm
Test: AOI/ X-Ray/Flying-Probe/Function Test Other Service: Components Purchase /Assembly/Custom Packaging
High Light:

Flying Probe PCB Assembly Service

,

Flying Probe 4 layer pcb board

,

FUJI NXT3 4 layer pcb board

SMT Manufacturing High Frequency 2022 PCB Assembly Service Customized Packaging





Technical Requirement for PCB Assembly

  1. Professional Surface-mounting and Through-hole soldering Technology
  2. Various sizes like 1206, 0805, 0603 components SMT technology
  3. Nitrogen gas reflow soldering technology for SMT
  4. High Standard SMT& Solder Assembly Line
  5. High density interconnected board placement technology capacity
  6. ICT(In Circuit Test),FCT(Functional Circuit Test) technology
  7. PCB Assembly With CE, FCC, Rohs Approval



Strengths of CESGATE



GESGATE is experienced in engineering, eliminate problems and traps before production. In the PCB industry for more than ten years, we build a standardized and rigorous process and system has been established to effectively reduce quality problems. We have professional PCB manufacturing, PCB assembly and component procurement team, providing one-stop service, saving time and effort. We can provide services such as electrical measurement and aging according to customer needs to improve product reliability. We can offer you one-stop service to save time and effort. For each process, CESGATE has formulated perfect operation instructions, and customized targeted inspection standards according to products in different industries, so as to improve the pass-through rate of products from each link.





Specification



NO. Items Capabilities
1 Layers 2-68L
2 Maximum machining size 600mm*1200mm
3 Board thickness 0.2mm-6.5mm
4 Copper thickness 0.5oz-28oz
5 Min trace/space 2.0mil/2.0mil
6 Minimum finished aperture 0. 10mm
7 Maximum thickness to diameter ratio 15:1
8 Via treatment Via, blind&buried via, via in pad, Copper in via …
9 Surface finish/treatment HASL/HASL lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
10 Base Material FR408 FR408HR, PCL-370HR;IT180A, Megtron 6(Panasonic);Rogers4350,
Rogers4003, RO3003, Rogers/Taconic/Arlon/Nelco laminate with FR-4 material(including partial Ro4350B hybrid laminating with FR-4)
11 Solder mask color Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
12 Testing Service AOI, X-Ray, Flying-Probe, Function Test, First Article Tester
13 Profiling Punching Routing,V-CUT,Beveling
14 Bow&twist ≤0.5%
15 HDI type 1+n+1,2+n+2,3+n+3
16 Min mechanical aperture 0.1mm
17 Min laser aperture 0.075mm





Company Profile



CESGATE has the capability to manufacture PCB ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including PCB manufacture, PCB assembly, components sourcing and function testing. With one-stop solution, high-end product structure, professional product development and manufacturing technology, stable quality performance and well management system, CESGATE has established long-term and stable cooperate relations with the world's leading communication equipment, aerospace electronics and medical equipment manufacturers.

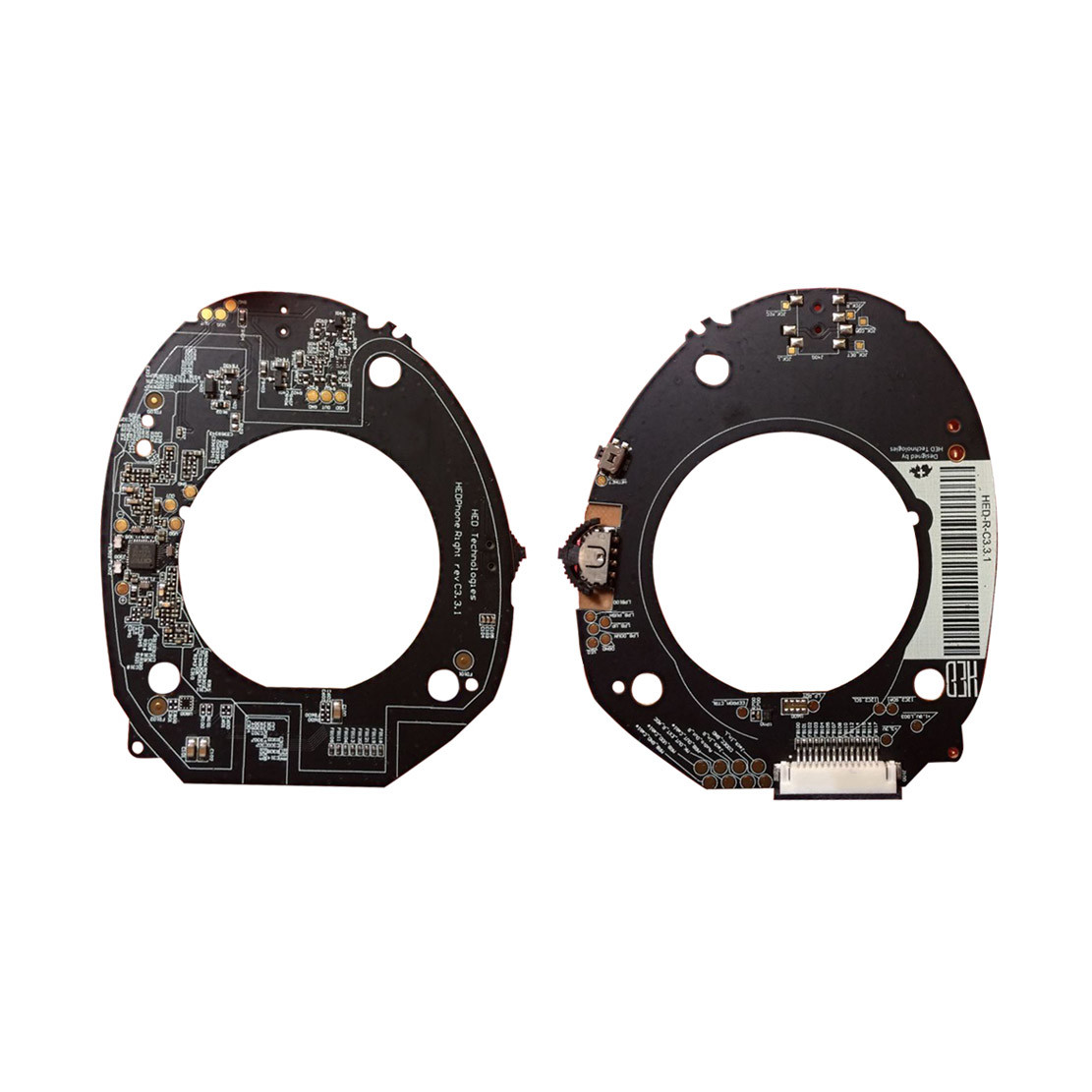

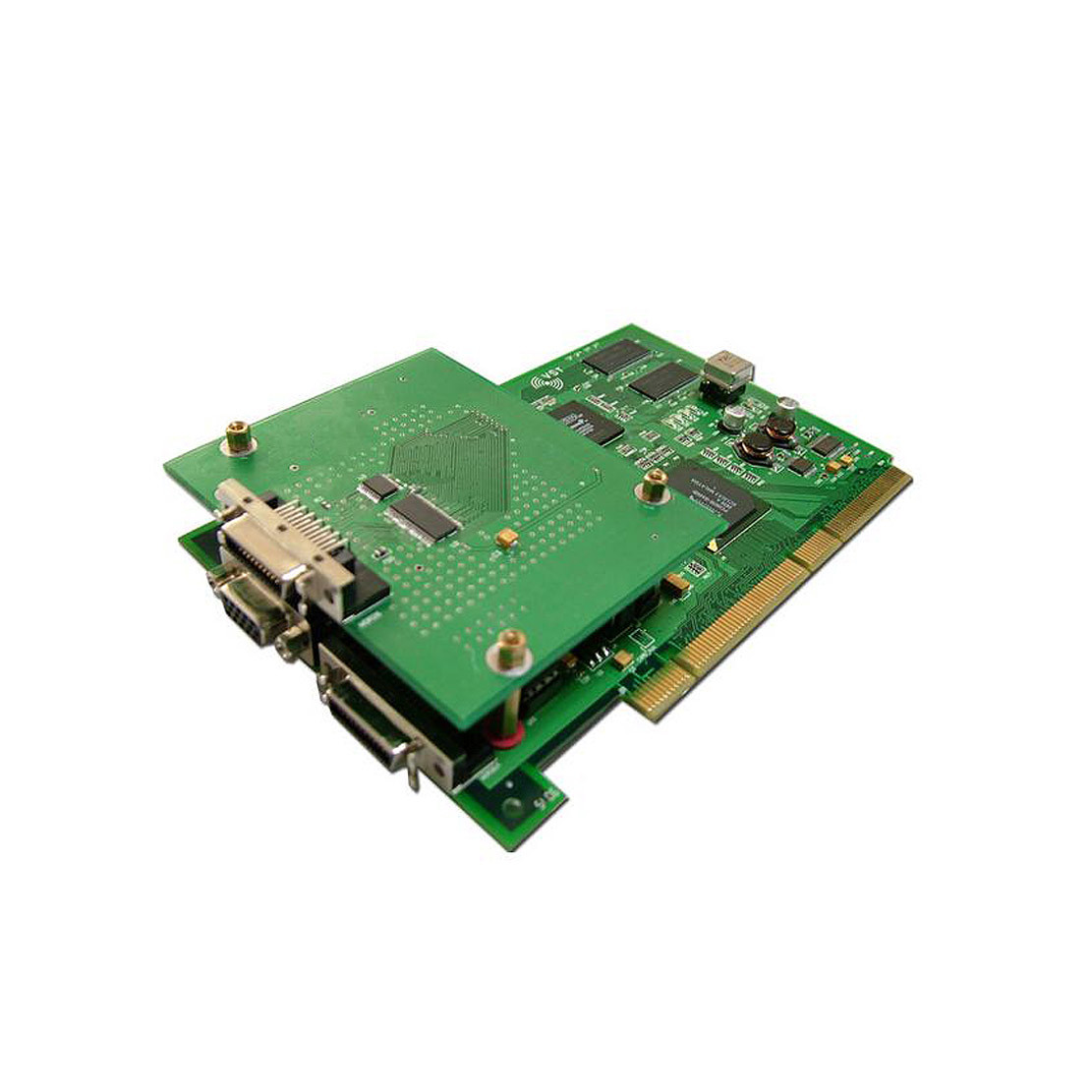

 Flying Probe PCB Assembly Service FUJI NXT3 4 Layer PCB Board 0Flying Probe PCB Assembly Service FUJI NXT3 4 Layer PCB Board 1Flying Probe PCB Assembly Service FUJI NXT3 4 Layer PCB Board 2Flying Probe PCB Assembly Service FUJI NXT3 4 Layer PCB Board 3





FAQ

Q: What service do you have?
CESGATE: We provide turnkey solution including RD, PCB fabrication, SMT, final assembly,testing and other value-added service.
Q: What are the main products of your PCB/PCB Assembly services?
CESGATE: Our PCB/PCB Assembly services are mainly for the industries including Medical, Automotive, Energy, Metering/Measurements, Consumer Electronics.
Q: Is CESGATE a factory or trade company?
CESGATE: CESGATE is a factory with PCB factory located in Senzhen and SMT assembly factories in both Shenzhen and Chengdu.
Q: Can we inspect quality during production?
CESGATE: Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house.
